Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation

Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation
Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation

Large Image :  Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation

Product Details:
Place of Origin: China
Brand Name: ETON
Certification: CE,CCC,SIRA
Model Number: UD390
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Packing in film package and foam cotton, and covering vacuum bag within sturdy wooden boxes.
Delivery Time: 30 days
Payment Terms: T/T
Supply Ability: 50 set per month
Detailed Product Description
Warranty: 1 Year Condition: New
Send Board Time: Around 6 S Frame Change Time: Around 25 S
PCB Thickness: 0.4-0.3 Mm Transmission Height: 900±20 Mm
PCB Size: 80*50-510*390 Mm Dimension: 2250*1010*1200 Mm
Approximate Weight: About 240 KG Size Of Turnover Frame: 535*460*570 Mm
High Light:

PLC control SMT Mounting Machine

,

SMEMA signal SMT Mounting Machine

,

Fully Automatic SMT Mounting Machine

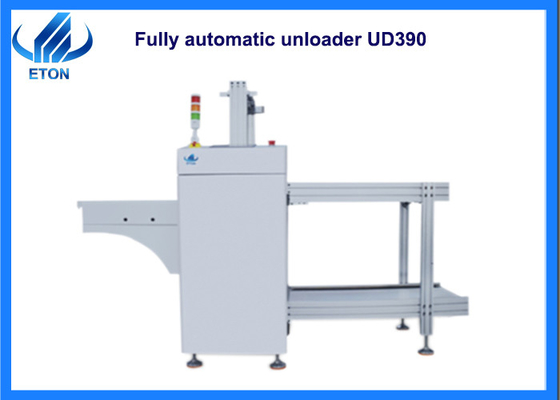

Fully automatic PLC control man-machine interface operation un-loader machine UD390


Machine main features
1. The device of unloading PCB in the SMT production line;
2. PLC control, color man-machine interface operation;
3. Adopting the structure of steeping motor to push the board, the force and speed of the pushing board can be adjusted;
4. Auxiliary positioning brake system, accurate positioning, fast rising and falling speed, high production efficiency;
5. Multiple electric distribution circuit protection, safe and reliable;
6. Acousto-optic alarm system, abnormal information text prompt, easy operation and maintenance.
7. Standard SMEMA signal communication mode.

DescriptionThis equipment is used for the lowering operation of the circuit board in the production line
Number of turnover frameOne box on working, two boxes out of frame segment, two boxes into the frame segment(or customer specified)
Send board timeAround 6 s
Frame change timeAround 25 s
PCB thickness0.4-0.3 mm
Transmission height900±20 mm
PCB size80*50-510*390 mm
Dimension2250*1010*1200 mm
Size of turnover frame535*460*570 mm
Approximate weightAbout 240 KG
Transmission directionLeft-right, right-left
Air pressure and air flow4-6 Bar, up to 1L/min


Market
Our products had exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt,Turkey, Russia, Brazil etc. And here are some of our big customers:
SURYA, POLYCAB, FIEM, RK, GK, TECHNO LED, CALCOM, ACK , KENDAL, RangDong, UNISTAR, and so on.
Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation 0


Packages
Keep a good quality of the machine when during transportation till the destination of our clients which is an imperative aspect for one of a suitable service for our clients to buy our machine, so making sure of a qualified and sturdy packing is a key mission for us, here are the specified steps for your reference:
Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation 1
Service

Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout

Sale service
Report machine status in time
Follow up and send test machine video

After-sales service
Software lifetime upgrade
24 hours to deal with problems online
Engineers can arrive on site to teach operation and debug the machine
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation 2
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Fully Automatic PLC Control SMT Mounting Machine Color Man Machine Interface Operation 3
FAQ
Q. What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 50000 square meters industrial park to serve the production, assembly, and commissioning of our machines.

Q. If I need a perfect line of the machine can you supply?
A. Yes, for the requirements of a whole line for production, we have professional equipment to make up for a perfect production line for your products, on account of we have a 50000 square meters of industrial park and excellent R&D staff, which can produce 50 sets of machine per month.

Q. How was your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.

Q. Can you accept D/P or D/A as the payment term?
A. For our regular payment terms, we usually use T/T.
