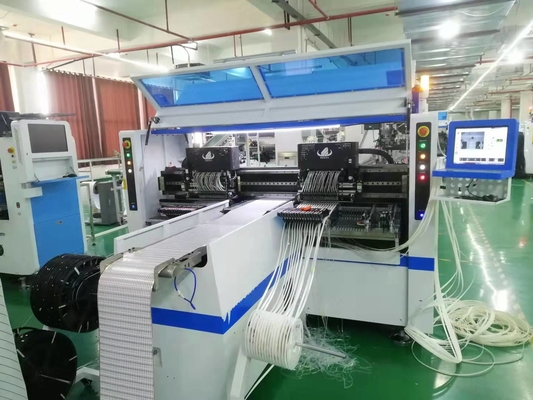

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads
Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads

Large Image :  Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: HT-T9
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: wooden box with vacuum package
Delivery Time: 30 days after deposit
Payment Terms: T/T
Supply Ability: 50 sets per month
Contact Now
Detailed Product Description
System: Window 7 Software: R&D Independently
PCB Length Width: 250mm*any Length Mounting Mode: Group To Pick And Group To Mount
No.of Camera: 5PCS（Digital Camera) Mounting Speed: 200000-250000CPH
No.of Feeders Station: 68PCS No.of Head: 68PCS
Conveyor Transmission: MAX Length: 1000mm XYZ Axis Drive Way: High-end Magnetic Linear Motor + Servo Motor
Highlight:

Roll To Roll LED Strip Mounting Machine

,

68Pcs Heads LED Strip Mounting Machine

,

Pick And Place Machine 25w Cph

Any length 25W CPH 68 pcs roll to roll led strip machine

Precautions for the operation of the smt placement machine:

A. Pay attention to the machine utilization rate in terms of production efficiency, check whether the standard production capacity is reached every hour, and reduce the standby time (analyze according to the mark point time, waiting time, feeding time, number of alarms, etc.);

Our Company - Top brand of SMT machine

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 0

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 1

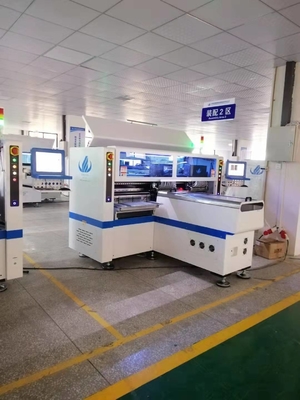

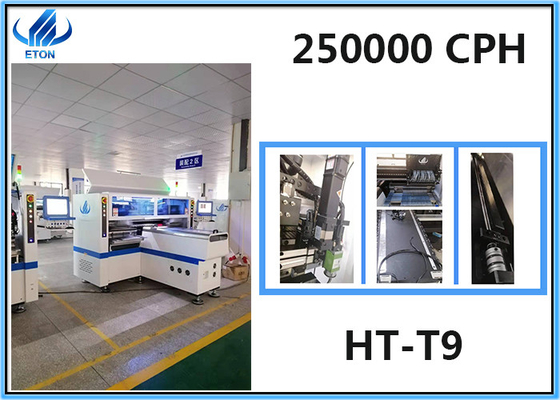

Our Pick and Place Machine - Roll to roll Machine HT-T9

1. 68 feeder station 68 placement head
2. windows 7system, optical positioning way; 6KW power consumption,
3. 250mm*any length pcb size
4. 0.5mm components space, Group to pick and group to mount mounting mode;
5. vacuum adsorption clamping, cylinder splint clamping, adjustable track width clamping;

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 2

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 3

Our Provide Solution to you - SMT line

ETON HT-T9 Semi-automatic No-wire flexible strip Production Line --- Save Cost and Flexible



Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 4



No. Machine Model Function
1 PCB Loader Automatic Sending the FPCB roll to printer machine
2 Semi-auto Stencil Printer ET-S1200 Printing the solder paste on the FPCB
3 Buffer Stage 1.6M Buffer and transport the FPCB
4 Pick and Place Machine HT-T9 Mounting components on FPCB
5 Belt Conveyor 3M Transport the FPCB to reflow oven
6 Belt Conveyor 6M Transport the FPCB to reflow oven
7 Reflow Oven ET-R8 Heat the solder paste to solder the components to the FPCB
8 PCB Unloader Automatic Roll up the Solder FPCBA



Our Exhibition



Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 5





Our Certificate

Roll To Roll LED Strip Mounting Machine Pick And Place Machine 25w Cph 68Pcs Heads 6

​



ETON is your best parner!



Find me on Whatsapp: +86 19880662073 and let's discuss more. Thank you!
