Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Dimension (L*W*H): | 2788*1686*1375mm |
---|---|---|---|
Total PCB Length Widthweight: | 1700kg | PCB Length Width: | Max:(single PCB )500*450mm;(double PCB)500*300mm Min:50*50mm |
PCB Thickness: | 0.5-4.5mm | PCB Clamping: | Cylinder Clamping, Track Width Adjustable |
No.of Feeders Station: | 64 PCS | No.of Head: | 20 PCS |
Mounting Speed: | 80000 CPH | Condition: | 100% Original,Brand-new |
High Light: | liner motor smt placement machine,IC Tray Feeder smt placement machine,high speed pick and place machine 80000CPH |

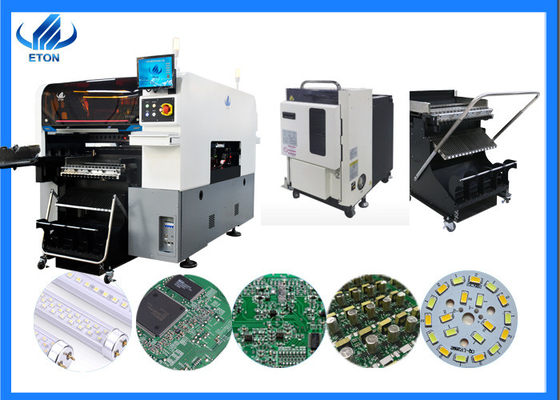

ETON high-speed placement machine that can mount 0201 components
High-speed placement machine, can mount 0201 components,
This is multifunctional machine with double module,total 20 head,each part 10 head, can produce two types of products at the same time.
The X axis is magnetic liner motor,Y axis and Z axis is servo motor,very good performance and high accuracy.
It's intelligent,can produce different types of LED light and electric board,such as bulb ,strip, Panel, Downlight, streetlight,power driver, other electronic boards, etc
Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
It is highspeed machine,the optimum speed is 80000CPH

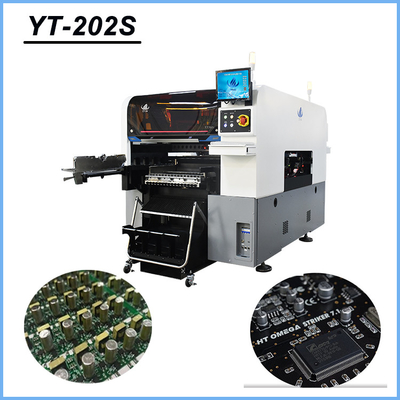

YT202S is a multi-function pick and place machine, which is apply for all kinds of components and products
1 PCB Size
Max:(single PCB )500*450mm;(double PCB)500*300mm Min:50*50mm
2 For Applications
LED bulb, street light, down light, spot light, table light, ceiling light, panel light, display, household appliance, DOB, power driver and so on.
