Product Details:
Payment & Shipping Terms:
|
Machine Type: | Multifunctional SMT Machine | PCB Size: | Max:1200*330mm |
---|---|---|---|
Dimension: | 2700*2300*1550mm | Weight: | 1700kg |
Head: | 34 Pcs | Mounting Speed: | 150000~180000 CPH |
Warranty: | 1 Year | ||
High Light: | Dual Arms LED Flexible Strip Mounter,34 Heads LED Flexible Strip Mounter,SMT Chip Mounter Dual Arm |

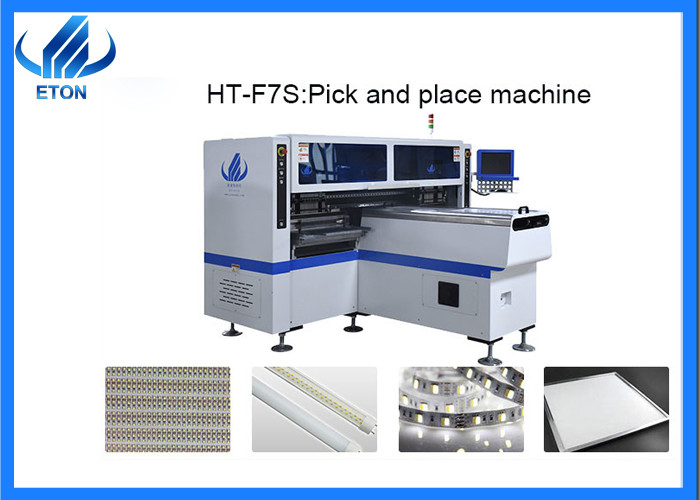

Dual Arm Led Flexible Strip Mounter 34 Heads 180000CPH SMT Chip Mounter
Machine features:
(1) HT-F7S: Dual-arm professional high-speed pick and place machine.
(2) This machine equipped with 34 nozzles(17 nozzles on each side head module), which optimum mounting speed reached 180000 CPH.
(3) Producing with 2~4 types of materials with high capacity, available for 5m,50m or any length of flexible strip and roll to roll.
(4) Apply to the 0.6m, 0.9m,1.2m rigid PCB and 0.5m, 1m led flexible strip light, led tube, panel light and so on.
(5)Calibration automatically, high precision, available for RGB.
(6)Electronic feeder feeding system.
Technical parameter:
Model | HT-F7S(Dual purpose professional high speed mounting machine) |
Dimension(L*W*H) | 2700*2300*1550mm |
Weight | 1700kg |
PCB length width | Max:1200*330mm;Min:100*100mm |
PCB thickness | 0.5~5mm |
Mounting precision | ±0.02mm |
Mounting height | ≤5mm |
Mounting speed | 150000~180000CPH |
Power consumption | 6KW |
No. Of feeders station | 68PCS |
No. Of head | 34 PCS |
Feeding way | Electric feeder with double motor |
HT-F7S Semi-automatic production line and application:
Machine main part:
Company profile:
* 10 years of SMT manufacturing and LED market experience;
* Industrial park: 5000 square meters, workshop: 45000 square meters;
* The assembly, powder spraying and sheet metal of the machine are all manufactured by ourselves;
* There is an independent R&D team with nearly 50 people;
* The company has more than 300 employees;
* With overseas offices and local full-time engineers, such as Egypt, India, etc.
Services:
FAQ:
1.Is electrical control developed independently?
A: Yes, the electrical control is by ourselves and have exclusive patent technology.
2.Are you a manufacturer or trading company?
A: Manufacturer. We have our own industrial park.
3. What is your payment terms?
A: 30% deposit in advance and 70% balance before shipment.
4. When is the delivery date?
A: Delivery within 30 days after payment.
5. Does your company have any other machines?
A: Yes, we are a professional manufacturer of SMT placement machines. In addition to board loading machines, our company also has semi-automatic printing machines, placement machines, reflow soldering, connection stations, conveyor belts and other SMT production line equipment.
6. Does your machines have quality certificates?
A: We are high-tech enterprise with CE, SIRA, CCC , ISO awarded as "Well-know brand" and many technology patents, and have rich
experience (more than 10 years) in LED light production line program.
7. why should you buy from us not from other suppliers?
A: We are high-tech professional manufacturer of SMT machine with more than 10 years with good quality and reputation. We have rich experience in helping client to start new factory and new line. "Professional, high-effective, cost-saving" are our advantages.
