Product Details:
Payment & Shipping Terms:
|
| Warranty: | 12 Months | Applicable Components: | 0402 |
|---|---|---|---|
| Name: | SMT Chip Mounter | Application: | SMT Production Line |
| Type: | Automatic | Item: | LED SMD Chip Mounter |
| Air Supply: | 5-7 KGF/cm2 | Printing Area: | 1500×300 Mm |
| Plate Area: | 1550×320 Mm | ||
| High Light: | FPCB PCB printer machine,0402 components PCB printer machine,LED SMD SMT Chip Mounter |
||
Suitable for electronic printing manufacturing of all kinds of PCB and FPCB printer machine

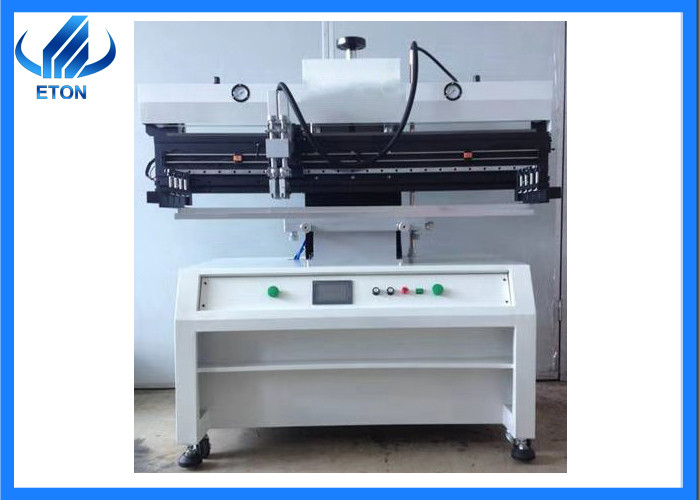

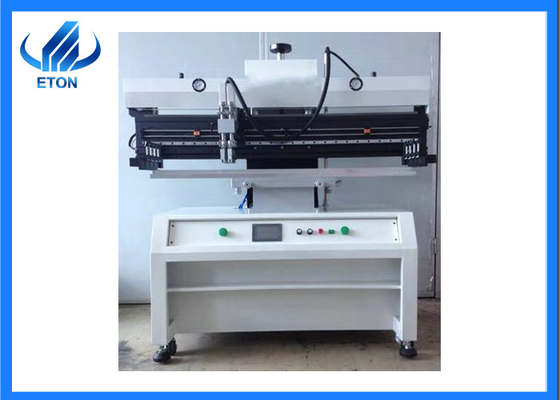

Machine introduction
The full-automatic printing machine can be connected to the SMT production line without human intervention. It has a high degree of automation and is suitable for large-scale production.
Printing press is a kind of full-automatic printing press with servo pressure control system. The printing parameters are digitally set by computer, and the marks of screen and substrate can be automatically identified and aligned by its vision system.
The printing machine series is suitable for electronic printing manufacturing of all kinds of PCB and FPCB, silver paste, ink and so on.
Features
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods.
Machine parameter
| Model | ET-S1500 |
| Printing area: | 1500×300 mm |
| Plate Area: | 1550×320 mm |
| Stencil Frame Size: | 470×370 mm～1300×550 mm (L×W) |
| Positioning way: | positioning pin |
| Scraper Speed: | 0-100 mm/sec |
| Power: | 220V single phase, 50/60 HZ |
| Power Consumption: | 120 W |
| PCB plate thickness: | 0.2-2.0 mm |
| Plate Trimming: | Front/back +/- 10mm Right/Left +/- 10mm |
| Printing Precision: | +/- 0.05 mm |
| Air supply: | 5-7 KGF/cm2 |
| Weight: | 420 kg |
| Dimension: | (L)1600 x(W)900 x(H)1650 mm |
Company profile
Shenzhen ETON Automatic Equipment Co.,Ltd, was founded in 2011, it is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
Honour client
We have a lot of long-term clients like SURYA, Calcom, KONKA,TCL,Skyquro,etc.
Certificates
We have CCC, CE, SIRA,etc.
Exhibition
Before the outbreak, we participated in various exhibitions at home and abroad every year, and won the love and attention of many customers during the exhibition. However, due to the epidemic situation in recent years, few exhibitors have participated in the exhibition.
FAQ
Q: Is the software for these machine in English?
A: Yes. Our software is independently developed, there are two version in English and Chinese.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q: Why do you choose our product?
our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation
Software lifetime free upgrade
Free installation and training
Provide 1-2 times a year free for machine repair, after the warranty period.
Q: Do you sell nozzles and spares?
A:Yes, we do sell nozzles and feeders, if you need any spares, just let us know.
