| Transport Speed: | Max 1500mm/S Programmable | Transport Height: | 900±40mm |
|---|---|---|---|
| PCB Warpage: | ＜1% | PCB Thickness: | 0.4~6mm |
| PCB Max Size: | 1500X350mm | PCB Min Size: | 80X50mm |
| Screen Frames Thickness: | 25~40mm | Warranty: | 12 Months |

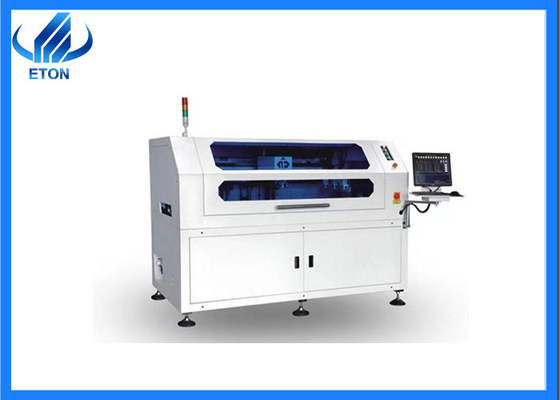

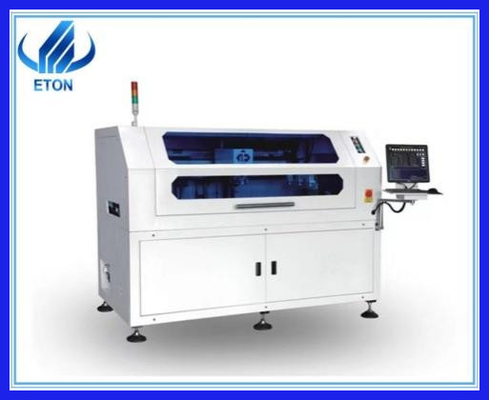

LED lighting making machines suitable for max 1.5M PCB board smt full automation printer machine
Features
(1) the governor motor drive scraper, combining precision linear guide, ensure the printing precision;
(2) printing scraper can rotate 45 degrees of fixed upwards, printing plate and scraper cleaning and replacement;
(3) the scraper holder can adjust forward and backward, to select the suitable printing position;
(4) combined printing platen, has a fixed groove and positioning PIN, easy installation and adjustment, it is used for single and double panel printing;
(5) steel bar-mesh mobile school edition way, combined with the printing machine (PCB) XYZ calibration adjustment, convenient and quick.
(6) can be set unidirectional and bidirectional multiple printing methods
Machine parameter
|
Model Item |
ET-F1500 |
| Screen Frames Min Size | 1100X300mm |
| Screen Frames Max Size | 1800X750mm |
| Screen Frames Thickness | 25~40mm |
| PCB Min Size | 80X50mm |
| PCB Max Size | 1500X350mm |
| PCB Thickness | 0.4~6mm |
| PCB Warpage | ＜1% |
| Transport Height | 900±40mm |
| Transport Direction | Left-Right;Right-Left;Left-Left;Right-Right |
| Transport Speed | Max 1500mm/S Programmable |
Our advantage
1. We have our own industrial park, covering an area of 520,000 square meters.
2. We have been in this business for over ten years.
3. We have office and local engineer in Egypt, Turkey, India,etc.
4. We can control it remotely, give machine a free upgrade
Certificates
We have CCC, CE, SIRA,etc.
Market
Our products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Russia, etc. It is popular in many countries and has gained many big clients. Well regarded.
Package
In terms of packaging, we generally use vacuum wooden cases for packaging, which can prevent moisture and protect the machine itself in the process of maritime transportation. Moreover, all the products purchased by customers are placed in one wooden case, so that customers can receive the purchased equipment at the same time and install and produce them in time.
Service
FAQ
Q: Is hard to use these machines?
A: No, not at all. All our machine are automatic, you just type in the program and it will work. The operation is relatively simple and I believed that certainly learn in two days.
Q: if there is a problem with the machine,can it be repaired?
Of course, the machine failure rate is 0.001 , and in addition to the warranty period, we also provide you with free maintenance 1-2 times a year.
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
