Product Details:
Payment & Shipping Terms:
|
| Weight: | 1700kg | Dimension: | 3100*2300*1550mm |
|---|---|---|---|
| PCB Length Width: | 250mm*any Length | PCB Thickness: | 0.5-1.5mm |
| Software: | R&D Independently | Mounting Speed: | 200000-250000CPH |
| No. Of Heads: | 68PCS | NO. Of Feeders Station: | 68PCS |
| High Light: | 3100mm SMT pick and place machine,Flex Strip SMT pick and place machine,250000CPH SMT Placement Machine |
||

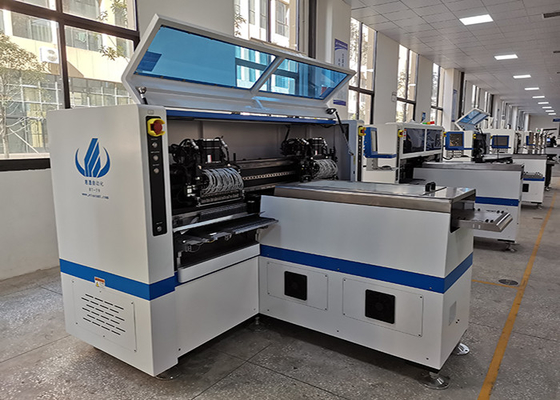

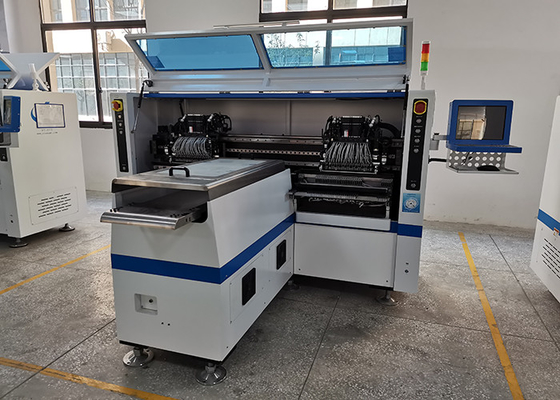

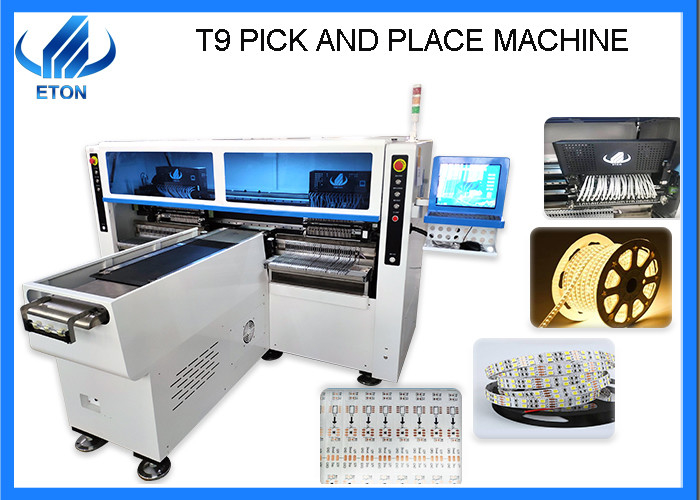

3100mm high speed SMT pick and place machine for flexible strip (no wire)
Technical parameter
| Item | HT-T9 |
| Dimension | 3100*2300*1550mm |
| Total weight | 1700kg |
| PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Mounting mode | Group to pick and group to mount |
| No.of camera | 5 sets digital camera(vision alignment, mark correction) |
| Repeat mounting precision | ±0.02mm(repeat precision) |
| Mounting speed | 200000-250000CPH |
| No.of feeders station | 68PCS |
| No.of head | 68PCS |
| Feeding way | Electric feeder with double motor |
| Components | LED 3014/3020/3528/5050 and resistor,capacitor,bridge rectifiers, etc. |
| Components space | 0.5mm |
Machine features
Dual arm magnetic linear high speed mounter for flexible strip(no wire ), producing 4 types materials at the same time capacity reach 250000CPH.
Producing with 4 types materials at the same time with high capacity, availble for 5m,50m or any length of flexible strip and roll to roll.
Dual arm four module,17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology: group to pick and group to mount.
Application
Service
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
Package
Step1: Film packaging
prevent the machine from dust,water
Step2: Vacuum packing
Duplicate protection from oxidation
Step3: Wooden box packing
Effectively prevent from hit crash and shaking
FAQ
Is the machine easy to operate?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
Can I use CIF price?
CIF price need add the freight, insurance fee on the basis of EXW price, and the India delivery forwarder will charge ours more than yours. So actually to do EXW will more simple and save cost for you.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Can we customize the machine?
Of course, all of our machines can be customize.
