Product Details:
Payment & Shipping Terms:
|
| Machine Name: | Pick And Place Machine | Application: | Electrical Board/ Pcba |
|---|---|---|---|
| Mounting Heads: | 40 Pcs | Mounting Speed: | 120000 Cph |
| High Light: | 120000 Cph PCB pick and place machine,PCB pick and place machine CCC,linear motor PCB Pick And Place Machine |
||

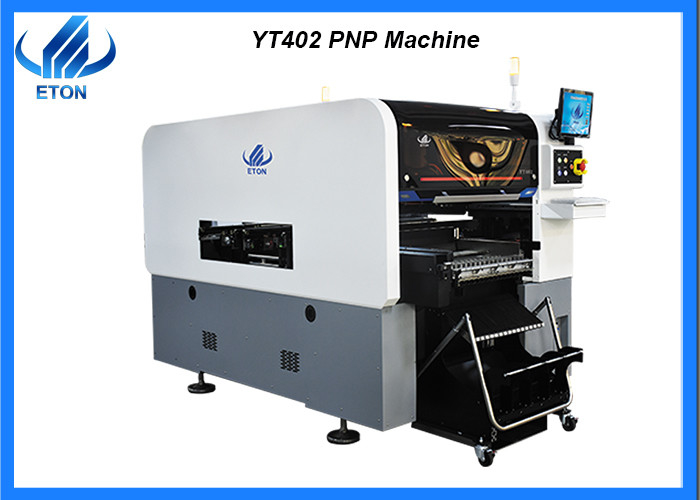

3C computer communication board pick and place machine
Machine features
Adopt High-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum placement speed reach 120000 CPH
Brand new flight vision camera, improve recognition performance, size up to 10*10 mm
Vacuum sensing device, each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
Each module 20 spindles, both high-speed and intelligent with light compact design
Equipped with smart double-head Tape feeder, support YT series double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component, it can achieve stable, accurate and high-speed feeding.
Could achieve flexible wiring through modular placement heads and various production modes
Machine parameter
| Model | YT402 |
| PCB size(L*W) | 500*300 mm(Max)-50*50 mm(Mini) |
| No. of Camera | 4 sets (Digital camera) |
| Mounting height | ≦6 mm |
| Component range | Mini 0201 packages and IC etc |
| Power | 380AC 50HZ 6KW |
| No. of heads | 40 PCS |
| No. of Feeder station | 32 PCS |
Machine application
This machine is widely applied to computer, communication product(like the phone), Controller board for consumer electrical product, 3 C products, etc.
It is suitable for mounting many kind of SMD components.
Service
Free service during warranty!
Related machine
ETON as the top brand of SMT Machine manufacturer in China, we are supply whole SMT production line solution, for pick and place machine, specially, we are highly recommend our newest and hot sale series YT (Honor)series:
YT101:Economy and higher precision SMT mounter machine
YT202: Economy and save cost Honor series dual gantry mounter machine
YT202S: High precision and vision camera pick and place machine
YT402: Super high capacity design 40 heads SMD placement machine
Welcome contact for more details!
