Product Details:
Payment & Shipping Terms:
|
| Dimension: | 1200*1930*1500mm | Weight: | 2500kg |
|---|---|---|---|
| PCB Size: | Max:450*300mm | Head: | 20 Pcs |
| Feeder Station: | 64 Pcs | Mounting Speed: | 80000 CPH |
| High Light: | Smt Placement Machine 80000CPH,Dual module Smt Placement Machine,bulbs SMT pick and place machine |
||

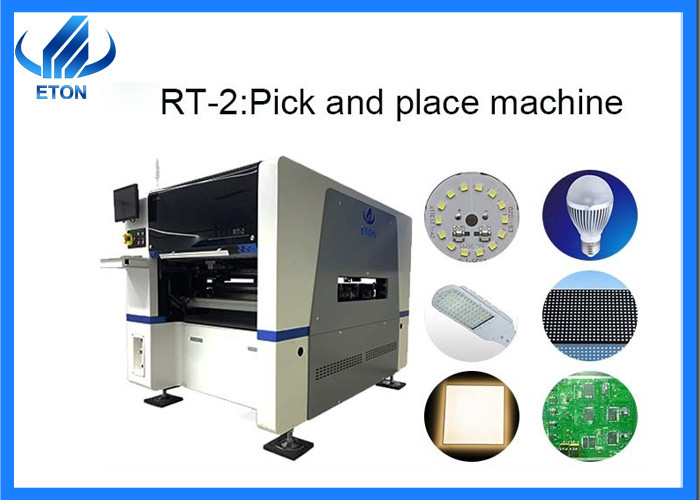

Dual module Led bulb 20 Heads 80000CPH SMT pick and place machine
Machine features:
1.This machine belongs to double module.It has 20 head (each part 10 head),which can produce two types of products at the same time.For instance,led bulb, power driver,street light and so on.
2.This machine mounting speed is 80000CPH.
3.It has 4 sets of camera, high mounting accuracy. Mounting method:group picking and separately place, separately picking and separately place.
4. Application: led street light, led display screen,led bulb ,power driver, down light and so on.
5. Electronic feeder feeding system.
Auto-optimization after coordinates generated, etc.
Windows 7 interface operating system.
Independently developed Chinese and English software.
RT-2 of Technical Parameter:
| Model | RT-2 |
| Dimension(L*W*H) | 1200*1930*1500mm |
| PCB Length width |
Bilateral dual-track: Max:450*300mm Unilateral dual-track:Max:450*540mm Min:80*80mm |
| Weight | 2500kg |
| PCB thickness | 0.1~6mm |
| Mounting mode | Group picking and separately placing, separately picking and separately placing |
| Mounting height | ≤15mm |
| Mounting speed | 80000cph |
| No. Of feeders station | 64 PCS |
| No. Of head | 20 PCS |
Application:
Led bulb, led street light, led display screen,power driver, down light and so on.
Machine main part:
Certification:
The research and development of the machine has been guaranteed and obtained patent recognition. It has the world's first invention patent, 9 invention patents, 12 software copyrights and 112 utility model patents.
Client:
Packing:
Services:
1.Free technical support: 7*24 hours online technical service.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
4. We can provide SMT production line solution with you.
FAQ:
1.Do you have overseas after-sales services?
Yes.We can provide technical support abroad with you. We have offices overseas and have local engineers to help you solve the problems with the pick and place machine offline.
2.How about the warranty?
We support one year warranty. We will help you in time. All the spare parts will be provided free of charge for you within the warranty period.
3.Is it hard to use these machines?
No,not at all. 5 days is enough to learn to operate the machines.
4.What can you buy from us?
Pick and place machine, Automatic stencil printer,SMT machine,Reflow oven,LED light production line.
