Product Details:
Payment & Shipping Terms:
|
| PCB Length Width: | 250 Mm*Any Length | PCB Clamping: | Vacuum Adsorption, Cylinder Splint, Adjustable Track Width |
|---|---|---|---|
| Transmission Speed: | >500 Mm/sec | Component Height: | ≤5 Mm |
| No. Of Feeders Station: | 68 PCS | No. Of Heads: | 68 PCS |
| Power Consumption: | 6 KW | Feeding Way: | Electric Feeder With Double Motor |
| PCB Thickness: | 0.5-1.5 Mm | ||
| High Light: | SMT mounting machine 250000 CPH,LED Strip SMT mounter machine,Automatic Strip SMT Mounting Machine |
||

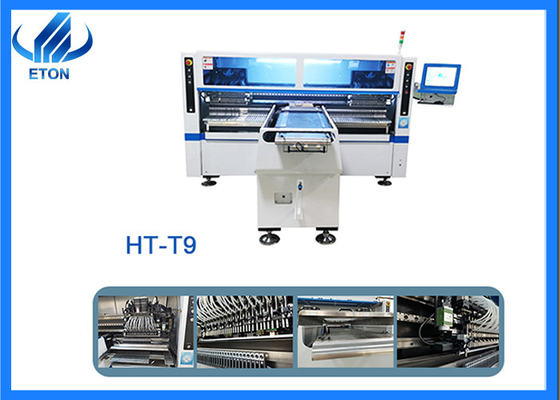

high-speed led flexible strip mounting 250000 CPH SMT pick and place machine
HT-T9 is the fastest professional pick and place machine which can produce any length of flexible strip and produce 4 different types of materials at the same time.
Four modules and two arms can mount separately and synchronously with the mounting mode of group to pick and group to place.
Machine main parameter
| Length | 3100mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB Length width | 250mm*Any length |
| PCB Thickness | 0.5-1.5mm |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width |
| Transmission speed | >500mm/sec |
| Repeating Mounting precision | ±0.02mm |
| Component height | ≤5mm |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Power consumption | 6KW |
| Positioning way | Optical |
| Feeding way | Electric feeder with double motor |
SMT Line solution
We have the professional sales personnel and excellent technology and strength to provide professional and suitable SMT production line solution for every client.such as HT-T9 100 M full automatic no wire flexible strip production line includes PCB loader, automatic stencil printer, the buffer stage, pick and place machine HT-T9, 24M belt line, reflow oven and PCB unloader.
Exhibitions
ETON every year will actively participates in various domestic and foreign exhibitions. The purpose is to let our products show up in front of the customers who are from all around world. the domestic exhibitions include Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition; the international exhibitions include India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.Our production have exported to more than 20 countries and regions, including South Korea, India, Egypt, Turkey, Russia etc.
Company profile
1. We have Strong reach and develop technology team and support client strong technical support.
2. We have rich experience in SMT Industry Line. ETON set up more than 10 years, we are leading manufacturer of SMT machine in China.
3. We have Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province.
4. Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty.
Services
We have 1 YEAR Maintenance period.
We will visit customers regularly and gather information
We will provide latest information about technology and equipment
We have overseas engineers teach equipment operation
We have quality principle: quality first, client-oriented, continuous improvement.
RFQ
1. What components can be mounted?
LED chip, resistors, capacitors, IC, crystal, shaped component etc.
2. How about the operating software ?
Our software is R&D independently by ourselves.
3. Do you have oversea engineer to help to install the machine and teach how to operate the software?
Yes, of course. We have oversea engineer in India, Egypt, Turkey. If you need, the engineers will come to customer’s factory.
4. Do you provide personal customization?
Yes, of course. contact the sales specialist to customize the equipment for you.
