90000CPH 8KW 24 heads 48 feeders LED lens LED lights making pick and place machine
Product description

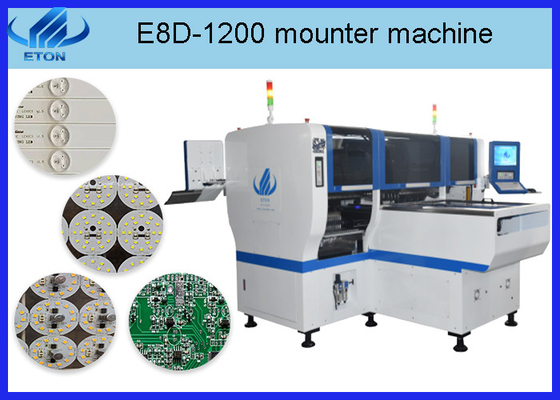

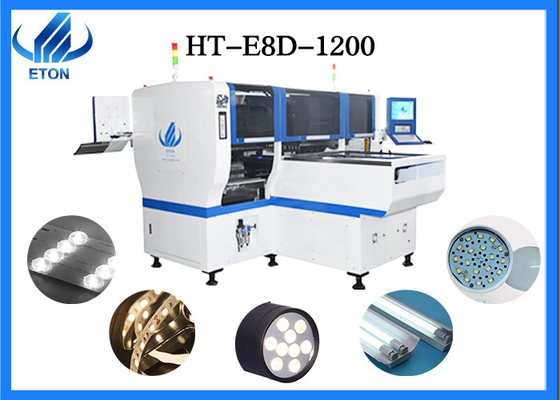

HT-E8D-1200 is a dual-mode magnetic multifunctional high-speed mounter
The dual-mode group of this model is controlled by two systems, which means that two PCB boards can be produced at the same time
Magnetic levitation linear motor is adopted. Compared with the servo motor used in most products on the market, this one has longer service life, higher precision and better mounting effect
Multi function means that this machine is a universal machine, which can be applied to a variety of different LED lamps, such as LED bulb, DOB bulb, street lamp, down lamp, ceiling lamp, panel lamp, lamp tube, lamp strip, lamp strip, etc. it can also produce LED lens, LED display screen and driver
Feature
| The minimum placement component is 0402, and the maximum placement is 15mm |
| Various SMD components, such as LED lamp beads, lenses, resistors, capacitors, IC and various special-shaped components, etc. |
| Electric feeder feeding system |
| Vision alignment flight identification, Mark correction |
| Non-stop material re-loading function |
| Auto-optimization after coordinates generated,etc. |
Vision system
There are 4 sets of high-precision cameras, which cooperate with the three-color lighting recognition principle, and the recognition degree is very high.
PCB
The maximum size of PCB is 1200 * 300mm, the minimum is 100 * 100mm, the thickness of PCB is 0.5-5mm, and the fixing method is adjustable pressure pneumatic.
Parameter
| No.of camera |
4 sets |
| Mounting precision |
±0.04mm |
| Mounting height |
＜15mm |
| Mounting speed |
90000CPH |
| Components space |
0.2mm |
| Power |
380AC 50Hz |
| Power consumption |
8 KW |
| Feeding way |
Electric feeder with double motor |
