Product Details:
Payment & Shipping Terms:
|
| Applicable Components: | LED Chip,capacitors,resistor,IC,shape Component | Dimension: | 1200*1930*1500mm |
|---|---|---|---|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Mounting Speed: | 40000CPH |
| Visual Camera: | 2 Pcs | No.of Feeders Station: | 32 PCS |
| No.of Head: | 4 Kw | Warranty: | 1 Year |
| Applicable Components: | 0402,0805,0603,1206,SOP | Power Supply: | 220V/110V |
| High Light: | SMT SMD LED Pick And Place Machine,10heads Pick And Place Machine,SMT Production Line smt placement machine |
||
Professional SMT Supplier Ten Head SMT SMD LED Pick And Place Machine For SMT Production Line
Production Introduction

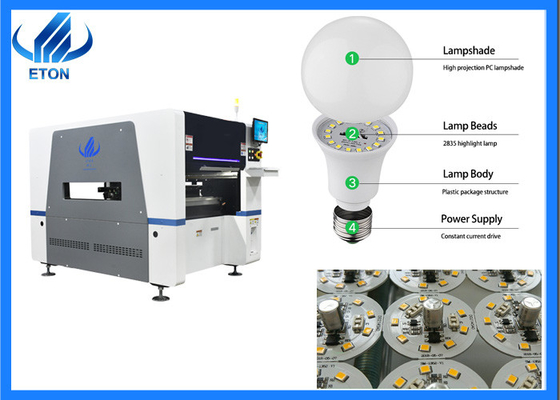

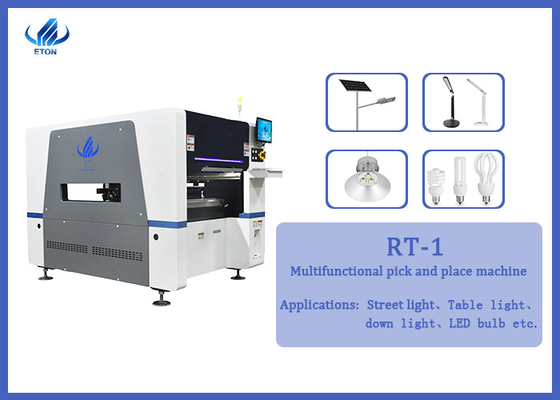

It is a multi-function SMT machine, which can be applied to more than a dozen products. Turn the PCB board into a PCBA board. Can mount a variety of components, such as LEDs, resistors, capacitors, ICs, terminals, inductors, coils, diodes, transistors, rectifiers, transformers, etc.
Suitable for various types of drivers, power supplies, circuit boards, lenses,
linearbulbs, home appliance control panels, etc.
Uses newest high magnetic linear motor, the speed and accuracy is better than normal machines.
Can meet 0402 components
The maximum mounting height can be 36MM.
|
Dimension |
1200*1930*1500mm |
|
Total weight |
2000kg |
|
PCB Length width |
450*350mm 80*80mm |
|
No.of camera |
2PCS |
|
Mounting precision |
±0.04mm |
|
Mounting speed |
40000CPH |
|
Components space |
0.2mm |
|
No.of head |
10pcs |
|
No.of feeders station |
32Ppcs |
|
Feeding way |
electric feeder with double motor |

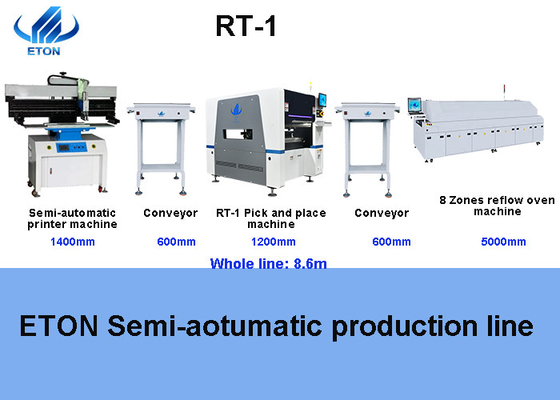

SMT Line is the short name of surface mounting technology, it is widely apply to all kinds of electrical board and led lighting industry, usually have Semiautomatic smt line and Automatic smt line. SMT Line mainly included Stencil printing machine, Pick and place machine, Reflow oven machine, PCB Conveyor machine, Loader, etc.
Pick and place machine is the most important module in this line, it directly influenced the whole line capacity.
Max pcb sizes: 450*350 (support customized)
Not only for led chip !
It is total intelligent and widely suitable for mounting different components, such as :
LED Chip
Resistor
Capacitor
IC
Shaped Components
Various terminals
etc...................
Certification:
The research and development of the machine has been guaranteed and obtained patent recognition. It has the world's first invention patent, 9 invention patents, 12 software copyrights and 112 utility model patents.
Services:
Professional solutions: Provide professional SMT Full line solutions.
Free Warranty: One-year warranty factory service. All parts damaged within the warranty period shall be replaced free of charge
Free Installation: On-site free installation to ensure smooth production.
Free Technical Training: Professional training of operating and maintenance.
Free Technical Support: 7 * 24 technical online support.
Free Software Upgrade: Offer free software upgrade whole lifetime.
FAQ:
1.Does your company have machines that can mount 0201 components?
Of course, our company has HONOR series machines can mount 0201 components
2.How are your product sales and customers?
ETON is a leading pick and place machine manufacturer in China,
ETON machine have been exported more than 20 countries , such as India, Turkey, Egypt, Thailand, Vietnam, Etc. In China, more than 70% big led lighting company are our clients.
3.How is the working efficiency of the machine?
The working efficiency of the machine is very high, and it will be more efficient if it is used in the production line with other related machines.
