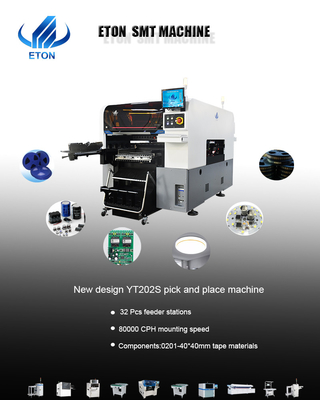

80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine

Large Image : 80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	ccc,ce,risa
Model Number:	YT-202S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	FOB USD 76000/sets
Packaging Details:	Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time:	30 days after deposit
Payment Terms:	L/C, T/T
Supply Ability:	50 sets per mouth

Contact Now

Detailed Product Description

Place Of Origin:	China	Name:	YT-202S
Warranty:	1 Year	Dimension:	315022501650mm
Total Weight:	2000kg	Power:	380AC 50HZ
Power Consumption:	8KW	Mounting Speed:	80000CPH
Mounting Height:	<36mm	Visual Camera:	2 Sets Of Imported Camera
Drive Way:	High-end Magnetic Linear Motor +servo Motor
Highlight:	0201 SMD mounting machine , 80000CPH SMD mounting machine , servo motor SMT pick and place machine

80000CPH 0201 SMD mounting machine SMT pick and place machine for SMT

Features of SMT pick and place machine
Optical Recognition Camera
Components with size less than 40• 40mm or height less than 20mm can be used to high-speed and high-precision identification
Mark recognition:High-precision Mark recognition system, adopt 3-color illum1nat1on recognition.apply to any shape Mark and LENS(Blu-ray scan), wider range of applications
Fixed flight vision camera:High-speed flight vision camera.quickly captures multiple head images at once, perform visual calibration of image position,alignment Correction ,adjustable light source brightness
Docking Car
Double side docking cart slot 32PCS, tape reel packages: 64PCS (single side docking cart slot 16PCS, tape reel packages: 32PCS), freely switching between docking cart and IC tray feeder(IC tray feeder.Option)
Smart Double-head Tape feeder
Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component.it can achieve stable, accurate and high-speed feeding
IC Tray Feeder
Support multi-layer tray feeder(IC tray feeder) installment, freely switch1ng between docking cart and IC tray feeder.

Patented Technology
Electronic feeder feeding system
Vision alignment flight identification,mark correction
Non-stop material re-loading function
Auto-optimization after coordinates generated ,etc.

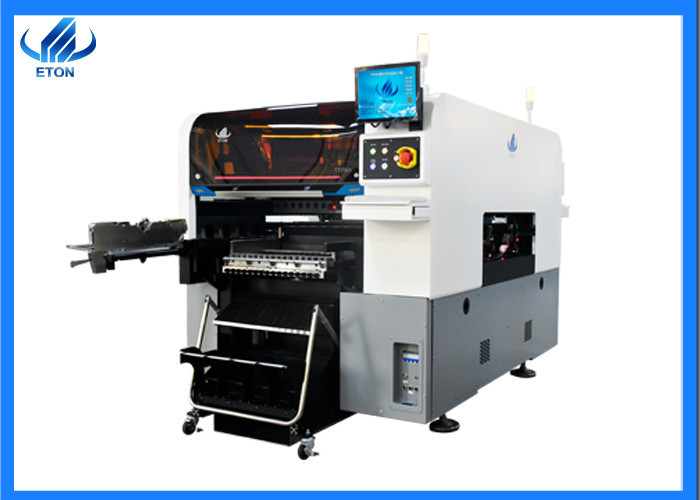

Pictures of pick and place machine
80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine 0

Technical parameter of SMD mounitng machine

PCB length width	Double module&Double rail: MAX:500x300mm(Non-omnidirectional 640x300mm) MIN:50x50mm Single module&Single rail: MAX:500x540mm (Non-omnidirectional 640x540mm) MIN:50x50mm
Components	0201 IC 50x50mm Mounting Height:20mm
Mounting speed	70000 CPH (Under the best conditions for our company)
Mounting precision	±0.03mm(Repeat precision)
No. Of feeders station	32PCS(Double material feeder, can load 64 trays of material)
Power	AC380 50Hz
Air supply	0.4-0.6Mpa (4-6Kgf/㎡)
Vacuum detection	Independent vacuum detection of reclaiming material
Dimension	L 2795 X W 1497 X H 1687
Total weight	1700kg

Certificate of honor
ETON advanced technology and innovation drives the revolution of market rapidly ,and obtains a number of intellectual property technologies.and rated as “shenzhen high-tech enterprise” “china high-tech enterprise” “shenzhen top brand” “2015 LED technology innovation award” “the 4^th China LED first innovation award”.
80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine 1

Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine 2

Packaging & Shipping

Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.
Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
80000CPH 0201 SMD Mounting Machine SMT Pick And Place Machine 3

Our Services

Attention
1. Before using the Pick and Place machine, you must understand the basic parameters of the placement machine;
2. Before running the Pick and Place machine, the operator should do a comprehensive inspection of the machine.
3. According to the boot operation sequence to implement the Pick and Place machine, there must have a detailed machine operation instructions;
4. It is necessary to conduct regular troubleshooting and maintenance work on the Pick and Place machine in a timely manner.

After-sale Service
we will send our engineer to your factory to install machine and training freely.
We have service office in india,and have indian engineer in delhi and mumbai.Can support quickly.
Standard warranty is one year,during warranty,any parts need to be repaired and replaced will be free.

FAQ

1, What’s the terms of payment? What about the trade term?
T/T is OK. You can choose FOB Shenzhen.

2, What is the delivery date?
We will deliver the goods after 30 days' deposit.

3, What mode of transport does the goods adopt?
Our mode of transportation is very flexible.Our mode of transportation including water, land and air transportation.You can choose the most suitable way according to your requirements.

4, What is the direction of transmission of machines?
The transmission direction of this machine is single direction.From left to right or from right to left.

5, How about your operating system?
The operating system is Windows 7. The software is developed independently. It supports Chinese and English operation interface. And It has simple structure and is easy to operate.
