PCB Size(max): | 500*350mm | PCB Thickness: | 0.5-4.5mm |
---|---|---|---|
System: | Windows7 | No.of Camera: | 2 Sets |
Mounting Speed: | 40000CPH | Mounting Height: | <=20mm |
Components Range: | 0201-40*40mm | No.of Heads: | 10PCS |
High Light: | Windows 7 LED Pick And Place Machine,0201 LED Pick And Place Machine,LED Display Pick And Place Machines |

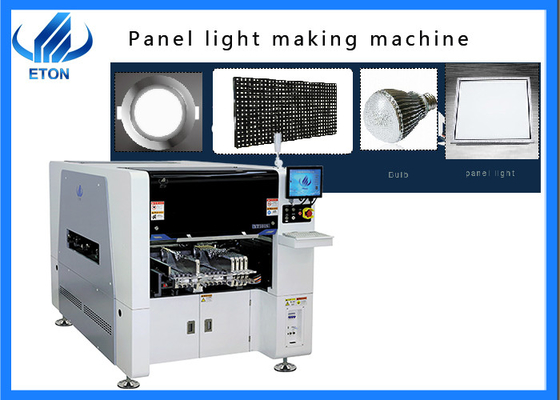

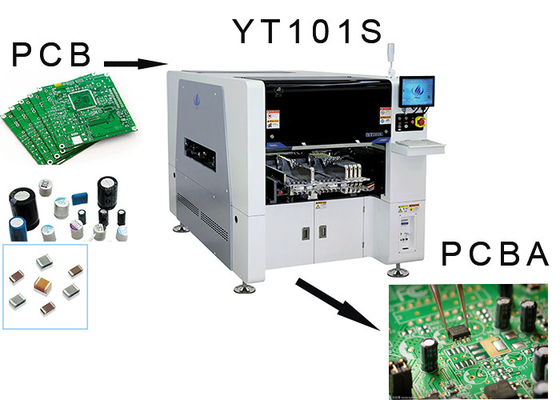

Apply to 0201-40*40mm LED CIRCUIT BOARD DISPLAY PICK AND PLACE MACHINE
Feauture
New upgrade pick and place machine, it is using High-end integrated placement head, no need change mounting head and place all SMD components. Non replace modular head
High precision camera, the camera is using vision alignment, Tri-color lighting technology, could recognition mini components and IC pin
With automatic PCB board feeding conveyor system, suitable for from 50*50-500*350mm PCB size
Intelligent electric feeder, support double head intelligent electric tape reel feeder, by optically correcting the feeding position of the component. It can achieve stable, accurate and high-speed feeding.
The Technical parameter
1. PCB |
Suitable for max PCB size is 500*350mm, mini size is 50*50mm PCB using cylinder clamping, track width adjustable for clamping The Rail 1 is fixed but other is flexible The PCB thickness is 0.5-4.5mm |
2. Camera |
The No.of camera is 2 sets digital camera, head flight vision recognition component, vision alignment, mark correction |
3. Precision |

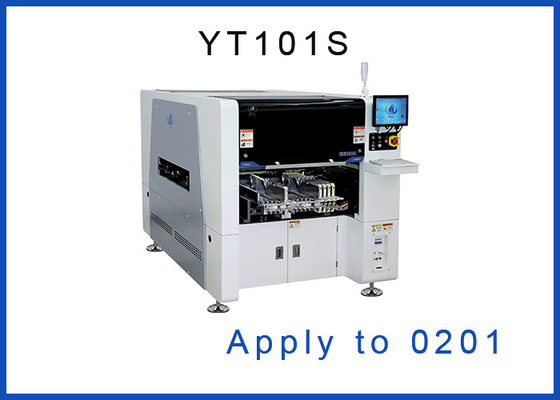

The repeat precision is ±0.02mm, support for 0201-40*40 IC |
4.Component Range |
Mini 0201-40*40mm package and IC, apply to BGA, CSP etc. Max mounting height is 20mm |
5.Mounting speed |
The optical speed is 40000 CPH with 10 mounting heads |
Other machines
We not only provide mounter, but also printing machine, loading machine, docking station, reflow soldering, transplanter, reflow soldering, etc
FAQ
Q:If I buy your product, what can I get?
A:As long as you buy our machine, we will provide free door-to-door installation (free replacement for any damaged parts within the warranty period), free technical training, 7-day and 24-hour online video teaching, lifelong free software update and other services.
Q: What is your delivery date?
A:The delivery date is about 20 days upon the full payment.
Q: What is your payment terms?
A:100% payment before delivery or 50% deposit in advance and the rest before shipment.
