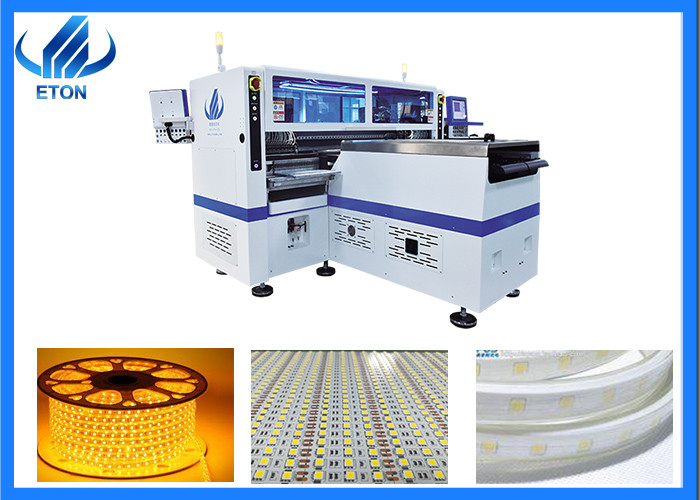

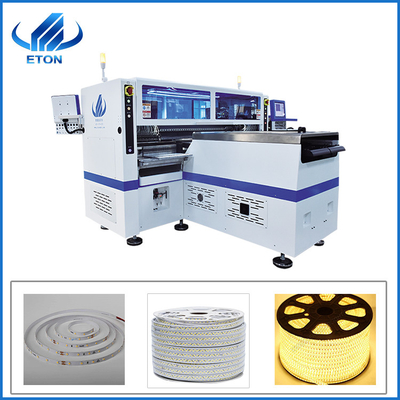

ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine

ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine
ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine

Large Image :  ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: CCC/CE/SIRA
Model Number: T9-2S
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: FOB USD 46000~86000/sets
Packaging Details: Vacuum packing in wooden case
Delivery Time: 15-30days
Payment Terms: L/C, T/T
Supply Ability: 50 Unit/UNits per month
Contact Now
Detailed Product Description
Name: SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter Dimension (L*W*H): 3454*3035*1777 Mm
Total Weight: 3100kg PCB Length Width: 250mm*any Length
PCB Thickness: 0.1-0.5mm PCB Clamping: Vacuum Adsorption, Cylinder Splint, Adjustable Track Width
No.of Feeders Station: 136PCS Mounting Speed: 500000 CPH
Components: LED3014/3020/3528/5050、Capacitance, Resistance, Bridge Stack, Etc Warranty: 1 Year
High Light:

Ultra High Speed SMT Mounter Machine

,

LED Strips SMT Mounter Machine

,

500000CPH LED Strip Manufacturing Machine

ETON New Ultra High Speed Mounter, LED Strip Mounter T9-2S, 50,0000CPH



Product Description



Feature
1. Producing with 4 types materials same time with high capacity, avaible for 5M,50M,or any length flexible strip and Roll to Roll.
2. Dual arm four module,17 nozzles for each mounting part .There are 136 PCS feeders station and 136 PCS heads.
3. Mounting speed reach 500000 CPH.
4. Calibration automatically, high precision,available for RGB.

5. suitable for any length flexible strip, this is a machine specializing in the production of flexible strips.



Production Process

Step 1
Loader Machine
Sending the FPCB roll to printer machine
Step 2
Semi-automatic Stencil Printer
Printing the solder paste on the flexible PCB
Step 3
Buffer Stage
Buffer and transport the flexible PCB to pick and place machine
Step 4
Pick and Place Machine
Mounting LED chips and components on flexible PCB
Step 5
Transportation Belt Line
Transport the flexible PCB to reflow oven
Step 6
Reflow Oven
Heating the solder paste with FPCB to welding the components on FPCB
Step 7
Unloader Machine
Rewinding the finished Flexible strip
ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine 0
ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine 1
ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine 2
Length*Width*Height
2975mm*2285mm *1550mm
Total Weight
3100kg
PCB Length Width
250mm*any length
Mounting Precision
±0.02mm chip
Mounting Speed
500000 CPH(optimum)
Components Speed
0.2mm
Power
380AC 50HZ
Power Consumption
7kw
No. of feeders
136PCS
Components
LED 3014/3020/3528/5050, resistors

Certifications

Since the establishment, ETON focus on technology reach and development, obtains a number of intellectual property technologies,including 9 invention patents, 112 practical patents, 12 software copyrights.
ETON is rated as “Shenzhen High-tech enterprise” ”Guangdong high-tech enterprise” “China high-tech enterprise” “2015 LEDTechnology Innovation Award” “The 4th China LED First Innovation Award” “Industry Special Contribution Award” etc.

_

Service

ETON Ultra High Speed SMT Mounter Machine 500000CPH LED Strip Manufacturing Machine 4



contact me by whatsapp/wechat:+8613824337025 and I will send you the catalog and machine video.
