Product Details:
Payment & Shipping Terms:
|
| Name: | SMD Chip Mounter,SMT Pick And Place Machine,SMT Chip Mounter | Application: | SMD Production Line,SMT Mounting Shooter Machine,SMT Production Line,for SMT Machine |
|---|---|---|---|
| Dimension (L*W*H): | 2788*1686*1375mm | DimenDimension (L*W*H) 2788*1686*1375mm Total Weightsion (L*W*H) 2788*1686*1375mm Total Weight: | 1700kg |
| PCB Length Width: | Max:(single PCB )500*450mm;(double PCB)500*300mm Min:50*50mm | PCB Clamping: | Cylinder Clamping, Track Width Adjustable |
| PCB Thickness: | 0.5-4.5mm | No.of Feeders Station: | 32 PCS |
| No.of Head: | 40 PCS | Mounting Speed: | 120000 CPH |
| Warranty: | 1 Year | ||
| High Light: | LED Chip SMT Pick And Place Machine,PCB Line SMT Pick And Place Machine,multifunctional LED Chip Mounter |
||

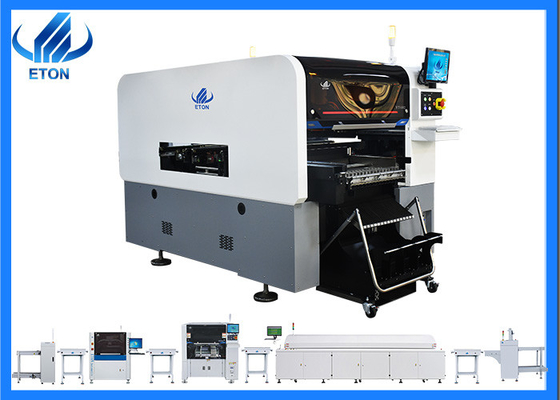

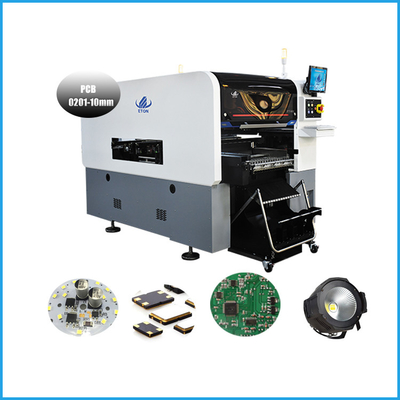

Factory direct supply YT402 high speed cost-effective led chip SMT pick and place machine for PCB line
Product Description
The machine is introduced
1. High-speed placement machine, can mount 0201 components,
2. This is multifunctional machine with double module,total 40 head,each part 20 head, can produce two types of products at the same time.
3. Its high precision(accuracy),apply to LED chips,resistor,capacitor,IC,shaped components etc.
4. It is highspeed machine,the optimum speed is 120000CPH
FAQ
The machine uses English and Chinese interface, very simple and easy to operate, and the machine supports remote control .
There are different machines in our company and different machines apply to different LED lights. The main products we can apply: bulb,tube strip lamp panel. Down light, street light, ceiling light. wall washer light and so on.
