Product Details:
Payment & Shipping Terms:
|
| Dimension: | L686xW1500xH1200mm | Rail Width: | 50-390mm |
|---|---|---|---|
| Process Lane: | Single | Cycle Time: | Approx 10 Sec |
| Process Height: | 900±20mm | Board Thickness: | Min 0.6mm |
| High Light: | Smooth buffer translational conveyor,500mm translational conveyor,SMT Line translational conveyor |
||

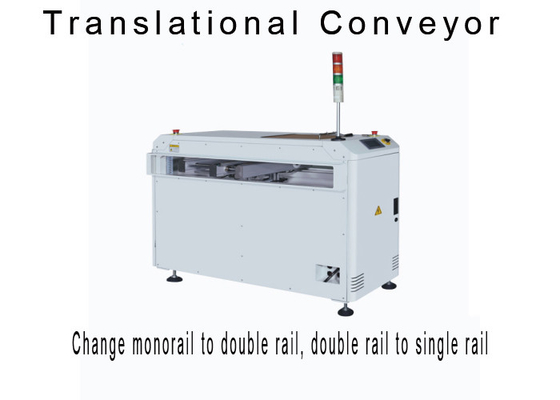

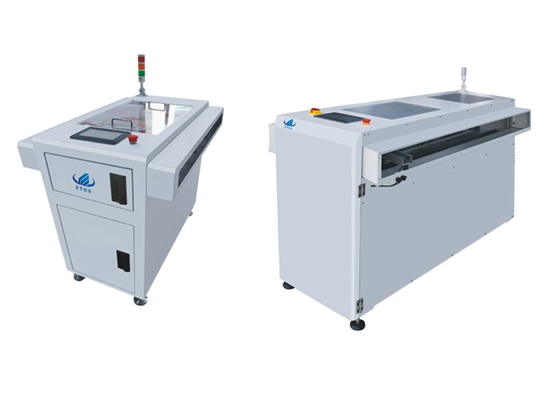

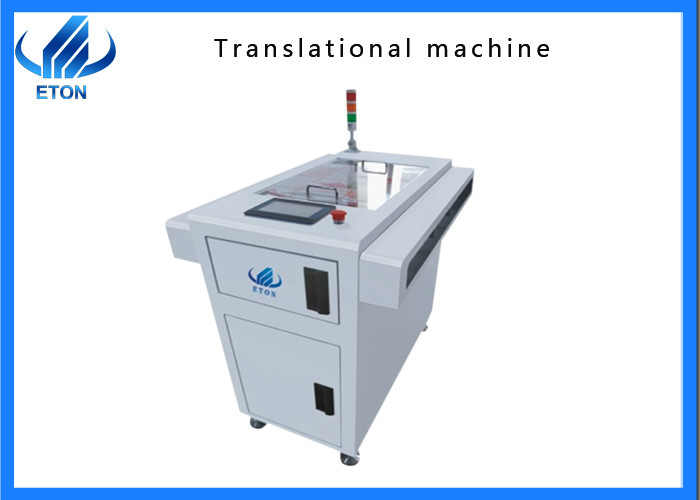

Smooth design buffer deceleration 500mm translational machine
Specification
| Model | 500 mm translational conveyor |
| Dimension | L686xW1500xH1200mm |
| Rail Width | 50-390mm |
| Process lane | Single |
| Trolley amount | 1 |
| Cycle time | Approx 10 sec |
| Process height | 900±20mm |
| Flow direction | L→R or R→L |
| Board thickness | Min 0.6mm |
| Weight | 140kg |
| Power requirement | 220Vac 50/60Hz ,1ph |
Features:
It is suitable for SMT production line to realize parallel load transfer between two positions for confluence or diversion.
The frame is made of thickened sheet metal.
Guide rail is made of special aluminum.
The shifting action is driven by a stepper motor.
The track is driven by a stepper motor.
Panasonic PLC programmable controller control.
Touch screen operation (display control).
Single/double shift trolley is optional.
Single/double track operation structure is available.
Compatible with SMEMA interface.
Smooth design buffer deceleration.
A variety of length shifts are available.
Exhibition
We attend many exhibitions every year.
Not only in China, India Delhi, Indian Mumbai, Pakistan Karachi, Turkey Istanbul, Egypt Cairo, Russia Moscow, Vietnam Hanoi etc.
We occurred 85% percent in China LED lighting markets, but also send machines to India, Korea, UK, Russia, Egypt, Turkey, Vietnam, Japan, Australia, Poland, etc more than 20 countries.
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
