Product Details:
Payment & Shipping Terms:
|
Clean Liquid: | Organic And Water-based Liquid | Stencil Size: | ≤750x750mm |
---|---|---|---|
Clean Time: | 2-5Min | Air Dry Time: | 3-6Min |

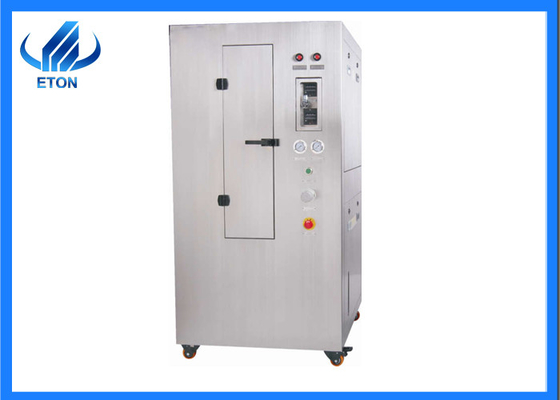

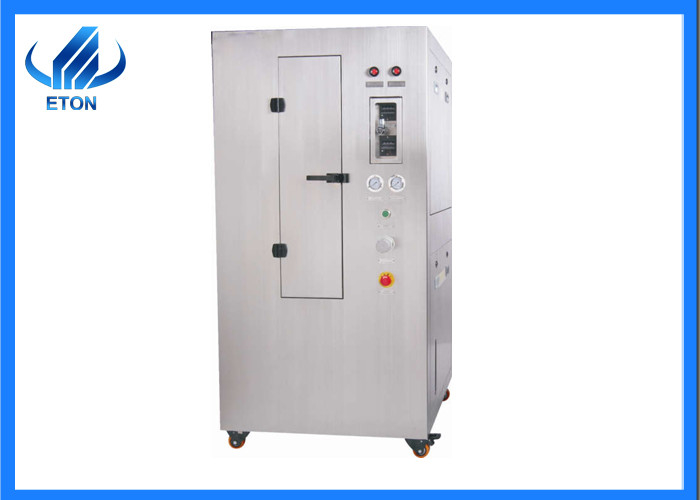

High Light: | Pneumatic stencil cleaning machine,SUS 304 Structure stencil cleaning machine,CCC smt stencil cleaning machine |
Main Features:
Related Parameter:
Item | Parameter |
Clean liquid | Organic and water-based liquid |
Stencil size | ≤750x750mm |
Clean time | 2-5Min |
Air dry time | 3-6Min |
liquid consuption | 200~400ml/Pcs |
Main Spec:
Item | Technical Spec |
Stencil size | 750(L) × 750(W) × 40mm(H) as max |
Liquid tank | 40 L as max |
Clean method | 360° rotation, double side liquid spray wash |
Clean time | 2 ~3 Min (solder paste) |
Air blow dry time | 3 ~5Min |
Air supply | 0.5 ~ 0.7 Mpa |
Air flow | 400 ~ 600 L/Min |
Vent size | Φ124×30mm(H) max air speed 3m/sec |
Filter system(3 class) | 1st class/2nd class:1mm /50um (impurity and lables) |
3rd class:1um (solder balls) | |
Machine weight | about 200Kg |
Machine size | 800(L)×950(W)×1630(H)mm |
Just one key operation, clean dry process, good clean result, right
for all kinds of stencil
Auto add or discharge function; very easy to add in or discharge clean liquid
3-class filtering system:
3-class filtering system, clean liquid repeat use
Item | Filter item | Brand | replace interval |
1-class 1mm | lables | SME | no need |
2-class 50um | solder balls | SME | 12 months |
3-class 1μm | solder balls | SME | 3 ~6months |
FAQ
Q:How are your products packaged?
A:All machines are packed with vacuum and wooden packing like the one in the pictures.
Q:I'd like to know how your machines are transported?
A:We ship to world wide from china mainland using air mail by EMS, UPS, DHL or TNT or as your request for parts. --- Sea shipping for machine.
Q:What are your advantages over other companies?
A:As a global leading brand of photoelectric high-speed mounter and a pioneer enterprise of SMT Mounter in China, ETON’S products are exported to more than 20 countries and regions such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil and Iran. It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents. It has successively won the titles of "Shenzhen high tech enterprise", "Guangdong high tech enterprise", "national high tech enterprise" and "Shenzhen famous"
