0201 0402 leb SMD pick and place SMT mounting machine for smt line

0201 0402 leb SMD pick and place SMT mounting machine for smt line
0201 0402 leb SMD pick and place SMT mounting machine for smt line

Large Image :  0201 0402 leb SMD pick and place SMT mounting machine for smt line

Product Details:
Place of Origin: CHINA
Brand Name: ETON
Certification: ccc,ce,risa
Model Number: YT-202S
Document: Product Brochure PDF
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: FOB USD 76000/sets
Packaging Details: Our packing is made of wooden box with vacuum package, and we promise to deliver the goods within four weeks after payment.
Delivery Time: 30 days after deposit
Payment Terms: L/C, T/T
Supply Ability: 50 sets per mouth
Contact Now
Detailed Product Description
Place Of Origin: China Name: YT-202S
Warranty: 1 Year Dimension: 3150*2250*1650mm
Total Weight: 2000kg Power: 380AC 50HZ
Power Consumption: 8KW Mounting Speed: 80000CPH
Mounting Height: <36mm Visual Camera: 2 Sets Of Imported Camera
Drive Way: High-end Magnetic Linear Motor +servo Motor

80000CPH 0201 SMD mounting machine SMT pick and place machine for SMT

Features of SMT pick and place machine


• Brand new self-developed high-prec1sion placement head
• Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy
• The placement head adopt independent vacuum detection.improve placement performance
• Off-line programming.save time of changeover cycle
• Software Al intelligent learning function and automatic optimization function



Optical Recognition Camera
Components with size less than 40• 40mm or height less than 20mm can be used to high-speed and high-precision identification
Mark recognition:High-precision Mark recognition system, adopt 3-color illum1nat1on recognition.apply to any shape Mark and LENS(Blu-ray scan), wider range of applications
Fixed flight vision camera:High-speed flight vision camera.quickly captures multiple head images at once, perform visual calibration of image pos1tion,alignment
Correction ,adjustable light source brightness

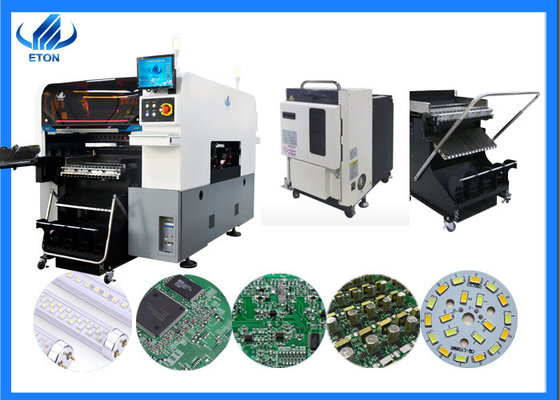

Pictures of pick and place machine
0201 0402 leb SMD pick and place SMT mounting machine for smt line 0

Technical parameter of SMD mounitng machine

PCB length width

Double module&Double rail:
MAX:500x300mm(Non-omnidirectional 640x300mm) MIN:50x50mm
Single module&Single rail:
MAX:500x540mm (Non-omnidirectional 640x540mm) MIN:50x50mm
Components

0201 IC 50x50mm
Mounting Height:20mm
Mounting speed

70000 CPH
(Under the best conditions for our company)
Mounting precision ±0.03mm(Repeat precision)
No. Of feeders station 32PCS(Double material feeder, can load 64 trays of material)
Power AC380 50Hz
Air supply 0.4-0.6Mpa (4-6Kgf/㎡)
Vacuum detection Independent vacuum detection of reclaiming material
Dimension L 2795 X W 1497 X H 1687
Total weight 1700kg



Our Partners
ETON advanced technology and innovation drives the revolution of market rapidly,and obtains a number of intellectual property technologies,including 9 invention patents,112 practical patents ,12 software copyrights,which save much labors and space of production ,got large market share in USA ,KOREA,INDIA,GERMANY,EGYPT,TURKEY,VIETNAM,TUNISIA,THAILAND more than 20 countries.
0201 0402 leb SMD pick and place SMT mounting machine for smt line 1



Our Services

※ Maintenance period 1year

One year warranty, during warranty, any parts need to be repaired and replaced will be free.

※ Software and hardware lifetime maintenance

Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.

※ Visit customers regularly and gather information

Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.

※ Provide latest information about technology and equipment

We give professional technology suggestion with our clients.And share the updates news to our clients



FAQ

1.Q: Are you a trade company or a manufacturer?
2.We are an professional manufacturer specialized in Screen Printer,SMT Machine, Pick and Place Machine, Reflow Oven, SMT Production line and other SMT Products.
2. Q: What is your delivery date?
The delivery date is about 20 days upon the full payment.
3. Q: What is your payment terms?
100% payment before delivery or 50% deposit in advance and the rest before shipment.
4. Q: How is the warranty?
1. Every machine will be checked carefully before shipping out. Buyers should check the package once receiving.
2. The complete machine has a warranty period of 12 months from delivery and lifetime maintenance service.
3. We provide online Q/A and troubleshooting support and technical advice service. Provide one to one after-sale service.
5.What are your advantages?
Our company stick to five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust

6.The products you are advertising are in stock?
A: The delivery date is about 20 days upon the full payment.Some times we have some in stock for ship , before shipping we’ll do some machine test for clients .
7.How can I buy this machine from you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
