Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Dimension: | 2700*2300*1550mm |
|---|---|---|---|
| Pcb Size: | Max: 1200*330mm Min: 100*100mm | PCB Thickness: | 0.5-5mm |
| PCB Clamping: | Adjustable Pressure Pneumatic | Onveyor Transmission: | Max Length: 1200mm |
| Repeating Mounting Precision: | ±0.02mm | Transmission Direction: | Single |
| Feeders Station: | 68PCS | Heads: | 68PCS |

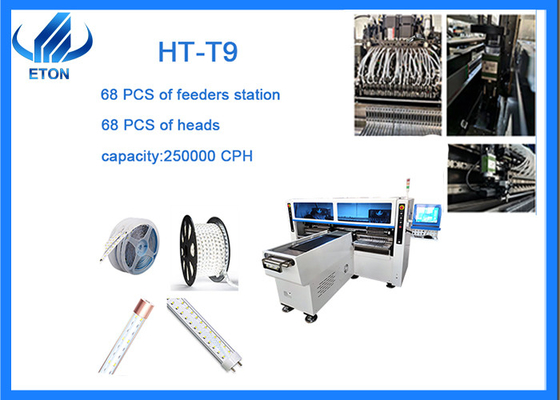

smt mounter LED tube making 68 PCS feeder station high speed SMT pick and place machine
The main parameter
| Length | 2700mm |
| Width | 2300mm |
| Height | 1550mm |
| Total weight | 1700kg |
| PCB Length width | Max: 1200*330mm Min: 100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| Transmission speed | >500mm/sec |
| Conveyor transmission | Max length: 1200mm |
| Repeating Mounting precision | ±0.02mm |
| Component space | 0.5mm |
| Component height | ≤5mm |
| Transmission direction | Single (left→ right or right→ left) |
| No. Of feeders station | 68PCS |
| No. Of head | 68PCS |
| Operating environment | 23℃±3℃ |
| Power consumption | 6KW |
| Transmission mode | Online drive |
| Positioning way | Optical |
| X, Y, Z Axis drive way | High-end magnetic linear motor and serve motor |
| Feeding way | Electric feeder with double motor |
The Features
1.Magnetic linear motor and servo motor pick and place machine, Producing with 4 types materials at the same time with high capacity.
2.It is suitable for the 0.6M, 0.9M rigid PCB and 0.5M,1M LED flexible strip and Available for board with any proportion of LED chip and resistor.
3.It has Dual arm four module, 17 nozzles for each mounting part, part A or B can be mounted separately or synchronously.
4.Mounting mode: group picking and group placing.
5.The optimum capacity can reach 250000 CPH.
Company profile
1.Strong research and develop technology team, support machine upgrade continuously, support client strong technical support
Rich experience in SMT Industry Line.
2.ETON set up more than 10 years, we are leading manufacturer of SMT machine in China
3. Strong production capacity, ETON have more than 50000 square meter Industrial park in Jiangxi Province
4.Provide engineer Door-to-door service, support video online training, video training share,free replaced machine core part during warranty.
5.Company five level management policy: sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
The transmission
Support for sea, air and land transport
Service
1. We have 1 YEAR Maintenance period
2. We will 24 hours 7 days online Answer questions
3. We Provide personal customization to satisfy your personalized production needs.
4. We have Overseas engineers to teach equipment operation one to one.
FAQ:
1.What are the main application about the pick and place machine?
We have many different machine, and different machines apply to different applications. The main products include panel light, ceiling light, LED bulb, LED tube etc. For example, the professional mounter HT-f9 is available for flexible strip and LED tube.
2.How about the operation software of the machine?
Our software are Independent R&D by ourselves with 2 language( English and Chinese).
3.How about your after sales services?
We have ONE YEAR Maintenance period. When you are operating ,you can communicate with our engineer for help any questions.
4.what can you buy from us?
Solder paste stencil printer, conveyor, Pick and place machine, reflow oven and All equipment related to the smt production line
5.What’s the terms of payment?
T/T is OK. You can choose FOB Shenzhen.
