1. Machines Introduction

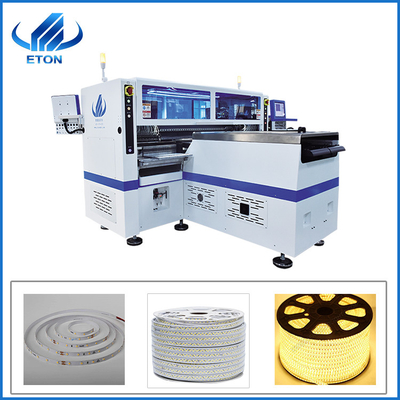

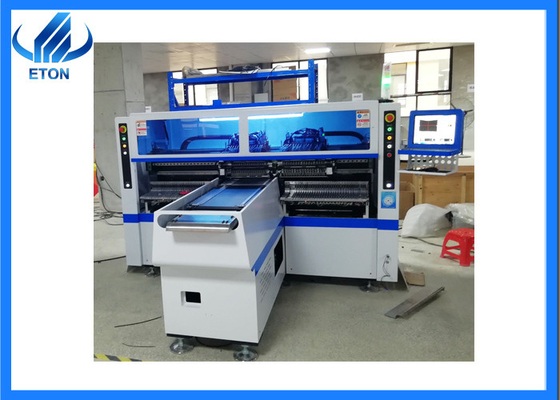

T9-2S SMT pick and place machine is for 5 meters, 50 meters and any length of wire board, disposable mount. Apply to LED soft lamp manufacturer.
T9-2S achieving any length PCB uninterrupted pasted on. This mode is 5M,50M etc. And it’s identified the correct position by camera. So it’s high precision and good stability.

2. Features
High Accuracy Magnetic Linear Motor + Panasonic Servo Motor

136 heads 136 feeder stations Four Arm four module , 34 nozzles for each mounting part. Part A or part B can be mounted separately or synchronously.
Vision alignment, Mark correction
Calibration automatically, high precision, available for RGB
Capacity can Reach 500 000 CPH

3. LED Flexible Strip Production Process



Step 1	Loader Machine	Sending the FPCB roll to printer machine
Step 2	Semi-automatic Stencil Printer	Printing the solder paste on the flexible PCB
Step 3	Buffer Stage	Buffer and transport the flexible PCB to pick and place machine
Step 4	Pick and Place Machine	Mounting LED chips and components on flexible PCB
Step 5	Transportation Belt Line	Transport the flexible PCB to reflow oven
Step 6	Reflow Oven	Heating the solder paste with FPCB to welding the components on FPCB
Step 7	Unloader Machine	Rewinding the finished Flexible strip















4. Services
Before buying machine
1) Professional sales manager of LED SMT machine, provide professional suggestion and service to you !
2) 24 hours online service and technical support, solve your questions quickly!
3) Sound company organization and working system, guarantee you a fast delivery!
4) Design and provide the whole SMT processing lines for you based on your budget , workshop covering area with best prices!

After buying machine
1) 1 year free warranty
2) Visit customers regularly and get her information.
3) Provide latest information about technology and equipment

5. Our attitude
Not only we will provide the fastest, most stable and most complete LED pick and place machine for you, but also we can make themost suitable plan for you to save labor cost.
