Automatic visual pick and place machine led bulb lamp assembly line &led bulb assembly line
Product description

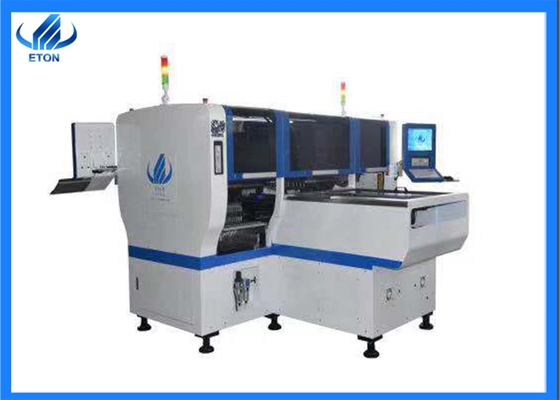

Double-module multifunctional pick and place machine
Vision for the flight identification, Mark correction
Components: LED, capacitors, resistors, IC, shaped components, etc( Max:17mm, Min:0402)
Application: power driver, electric board, lens, linear bulb, tube, etc
Features
Dual system, dual module multi-functional pick and place machine
Components: Min. size: 0402, Max. height: 15mm
Mounting components: LED, capacitors, resistors, IC, shaped components, etc.
Exclusive patented technology: electronic feeder feeding system, non-stop material re-loading function
Technical parameter
|
Dimension (L*W*H)
|
3150*2250*1650 mm
|
|
Total weight
|
2500kg
|
|
PCB Length width
|
Max:1200*300mm Min:100*100mm
|
|
PCB thickness
|
0.5-5mm
|
|
PCB clamping
|
Adjustable pressure pneumatic
|
|
No.of feeders station
|
Double module 48 PCS
|
|
No.of head
|
Double module 24PCS
|
|
Mounting speed
|
90000 CPH
|
|
Conveyor transmission
|
Max length 1200 mm
|
SMT LED production process
| process |
step |
details |
| Step1 |
Solder paste printing |
The solder paste is printed on the PCB pad through the stencil of the printer |
| Step2 |
Mounting machine |
Mount the lamp beads or other components on the designated position on the PCB |
| Step3 |
Reflow oven |
Melt the solder paste to make it adhere to the mounting components |
| Step4 |
conveyor |
Inspection of placement and soldering quality |
Company information
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech enterprise dedicated to the research and development, production, sales and after-sales service of SMT high-speed placement machines. The company has always been committed to providing customers with "professional, efficient, and low-consumption" SMT automatic placement machines.
Service
-
Provide you with a complete SMT solution.
-
Provide the most professional technical services.
-
Has extensive experience in SMT factory settings.
-
Can solve any problems related to SMT.
-
24 hours free online service
-
Free installation teaching when engineers arrive
FAQ
1.Do you have any customers in India? How many machines are there in India?
Yes, we have many big clients in India, such as RK, SURYA, FIEM, CALCOM, POLYCRB, etc. We have sold over a hundred machines to India and we go to the exhibition every year.
2.Can I visit the production site of your machines in India?
I have to ask my clients. After all, this is our customer’s factory, we can’t make decisions for my clients. I think that you wouldn’t want your competitors to visit your manufacturing site, please understand.
3.Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
4.What is your machines quality?
We have our own industrial park. There are production centre and R&D centre and quality inspection centre to guarantee the machines quality.
