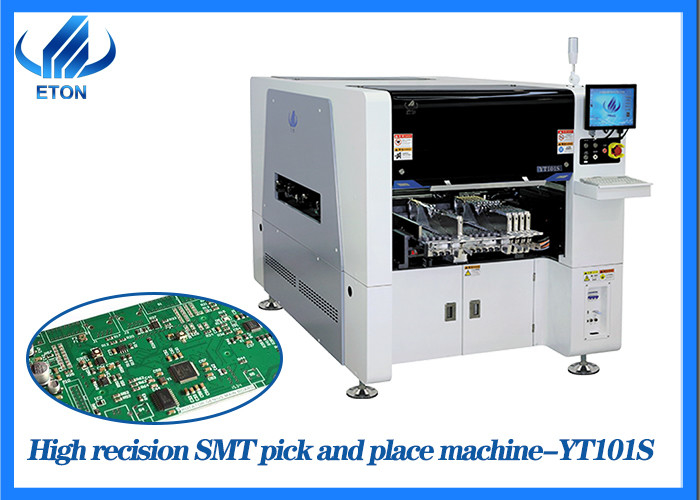

40000CPH 10heads LED light making SMT pick and place machine
Features
(1)machine highlights
High-speed Multi Modular Head: Adopt High-speed multi modular head,apply to ultra small chip 0201~40*40mm large Chip,wider component range.
Brand New Flight Vision Camera: Improve recognition performance, size up to 40mm*40mmapply to BGA or CSP etc.
Vacuum Sensing Device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
Ultra-high-speed Capability: Adopt High-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum placement speed reach 40000 CPH.
(2)Flexible production
Fixed Flight Vision Recognition Camera(Option): Components with size less than 40*40mm or height less than 20mm can be used to high-speed and high-precision identification, IC tray feeder support(Option).
Intelligent Electric Feeder: Support YT series double head intelligent electric tape reel feeder by optically correcting the feeding position of the component,it can achieve stable,accurate and high-speed feeding.
(3)High reliability
Brand new self-developed high-precision placement head
High-speed precision head flight vision camera capture the image of placement
accordingly,improve the speed and accuracy of placement.The placement head adopt independent vacuum detection,improve placement performance.
Off-line programming,save time of changeover cycle.
Software Al intelligent learning function and automatic optimization function.
Technical parameter
| model |
YT 101S |
| PCB size |
MAX size: 500*350mm
MIN size: 50*50mm
|
| PCB thickness |
0.5-4.5mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| rail |
Rail 1 is fixed |
| system |
Windows 7 |
| software |
R&D independently |
| Production management MES system |
Customized(option) |
| Off-line programming |
available |
| No. Of camera |
2 set (digital camera) |
| Head flight vision recognition component |
| Vision alignment+ mark correction |
| Repeat precision |
±0.02mm |
| Mounting height |
≦20mm |
| Mounting speed |
40000 CPH (optimum speed) |
| Components range |
Min 0201-40*40mm packages and IC etc |
| Power |
380AC 50HZ 4KW |
| Operation environment |
23℃±3℃ |
| Transmission direction |
Single (left-right, right-left) |
| Transmission mode |
Online drive |
| Position mode |
optical |
| Air consumption |
0.4-0.6mpa()4-6kgf/cm2) 150N/min |
| Electrical control |
Independent research and development by ETON |
| Motion control card module 1 set |
| X,Y,Z Axis drive way |
High end magnetic linear motor+ servo motor |
| No. Of feeder station |
Station:16 pcs, tape reel packages 32 pcs |
| No. Of heads |
10 pcs |
| Feeding way |
Intelligent double head feeder |
full-automatic production line
