| Warranty: | 1 Year | Name: | Pick And Place Machine |
|---|---|---|---|
| Dimension: | 2154*1376*1762mm | PCB Thickness: | 0.5-4.5mm |
| PCB Clamping: | Cylinder Clampig, Adjustable Track Width | Software: | R&D Independently |
| No. Of Camera: | 2 Sets | No. Of Heads: | 10 Pcs |
| Mounting Speed: | 40000 CPH | ||
| High Light: | LED Lighting SMT mounter Machine,SMT mounter Machine 40000 CPH,windows 7 Pick And Place Machine |
||

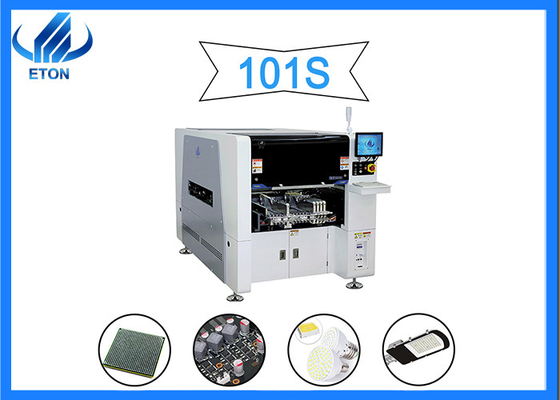

Led lighting mounter 500*350mm PCB 40000 CPH SMT pick and place machine
Features
Single-module Magnetic linear motor multifunctional pick and place machine.
Mounting components: LED/capacitors/resistors/IC/shaped components/etc.
Exclusive Patented Technology
Electronic feeder feeding system
Vision alignment flight identifications, Mark correction
Auto-optimization after coordinates generated,
Technical Parameter
| model | YT 101S |
| PCB size |
MAX size: 500*350 mm MIN size: 50*50 mm |
| PCB thickness | 0.5-4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| rail | Rail 1 is fixed |
| system | Windows 7 |
| software | R&D independently |
| Production management MES system | Customized(option) |
| Off-line programming | available |
| No. Of camera | 2 set (digital camera) |
| Head flight vision recognition component | |
| Vision alignment+ mark correction | |
| Repeat precision | ±0.02 mm |
| Mounting height | ≦20 mm |
| Mounting speed | 40000 CPH (optimum speed) |
| Components range | Min 0201-40*40 mm packages and IC etc |
| Power | 380 AC 50 HZ 4 KW |
| Operation environment | 23℃±3℃ |
| Transmission direction | Single (left-right, right-left) |
| Transmission mode | Online drive |
| Position mode | optical |
| Air consumption | 0.4-0.6 mpa()4-6 kgf/cm2) 150N/min |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | |
| X,Y,Z Axis drive way | High end magnetic linear motor+ servo motor |
| No. Of feeder station | Station:16 pcs, tape reel packages 32 pcs |
| No. Of heads | 10 pcs |
| Feeding way | Intelligent double head feeder |
applications and components
YT101S is a multi-function pick and place machine,Apply the PCB size :Max: 500*350 mm
Application products:LED bulb,DOB bulb, power driver,street light, down light, spot light,floodlight,ceiling light, panel light, led display, household appliance and so on.
components:Min 0201-40*40mm packages and LED chip 2835/3528/5050/3014/3020/5730/5630,electrolytic capacitor, inductance, IC, diode, resistance ring, resistor, terminal , transformer, shaped components etc.
Semi-automatic Production line
We are the top manufacturer of SMT machine and peripheral equipment in China, and we provide the whole SMT production line solution. For the Semi-automatic production line, it includes semi-automatic stencil printer, pick and place machine, conveyor and reflow oven.
