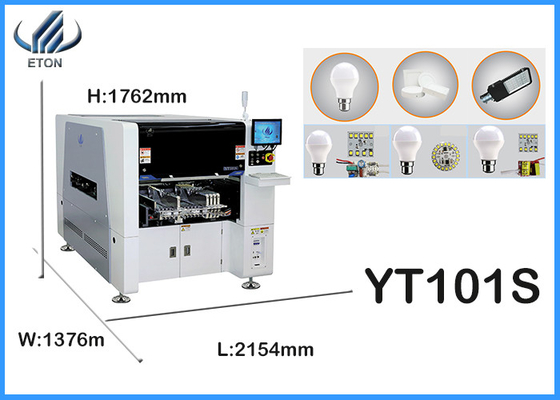

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip

Large Image : SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip

Product Details:

Place of Origin:	CHINA
Brand Name:	ETON
Certification:	CCC/CE/SIRA
Model Number:	YT101S
Document:	Product Brochure PDF

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	wooden box with vacuum package
Payment Terms:	T/T
Supply Ability:	50 sets per month

Contact Now

Detailed Product Description

Dimention:	215413761762	Total Weight:	1700kg
PCB Length Width:	Max：500mm350mm Min：5050mm	PCB Thickness:	0.5-4.5mm
System:	Windows 7	Software:	R&D Indepentently
No.of Camera:	2pcs	Mounting Speed:	40000CPH
Components:	0201-10MM Packages And IC Etc.	Electrical Control:	Indepentent Research And Development By Eton.
Highlight:	SMT Line pick and place equipment , Large Chip pick and place equipment , Fight Vision Camera SMT Chip mounter

**Fight vision camera 40*40MM large chip smt line pick and place machine**

YT-101S : Production Introduction

1.Support YT series double head intelligent electric tape reel feeder,by optically correcting the feeding position of the component, it can achieve stable.accurate and high-speed feeding.

2.High-speed precision head flight vision camera capture the image of placement accordingly,improve the speed and accuracy of placement.

3.The placement head adopt independent vacuum detection,improve placement performance.

4.Brand new self-developed high-precision placement head.

5.Software Al intelligent learning function and automatic optimization function.

6.Off-line programming,save time of changeover cycle.

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 0

1.Fixed Flight Vision Recognition Camera(Option)

Components with size less than 40 * 40mm or height less than 20mm can be used to high-speed and high- precision identification,IC tray feeder support (Option).

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 2

2.High-speed Multi Modular Head

Adopt High-speed multi modular head,apply to ultra s mall chip 0201<~40*40mm large Chip,wider component range.

YT-101S: SMT LINE Introduction

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 4

Technical parameter
Model	YT101S
length	2154mm
width	1376mm
height	1762mm
total weight	1700kg
PCB length width	Max:500350mm MIN:5050mm
PCB thickness	0.5 - 4.5 mm
PCB clamping	Cylinder clamping, track width adjustable
system	windows 7
software	R&D independently
No.of camera	2PCS(Digital camera)
No.of camera	Head flight vision recognition component, Vision alignment+Mark correction
repeat precision	±0.02mm
mounting height	≤20mm
8mounting speed	40000CPH
No.of feeders station	16PCS
No.of head	10PCS
power	380AC 50Hz 6KW
operating enviroment	23℃±3℃
air supply	0.4-0.6mpa(4-6kgf/cm²)150N/min
XYZ Axis drive way	High-end magnetic linear motor + servo motor
feeding way	Intelligent Double head Feeder

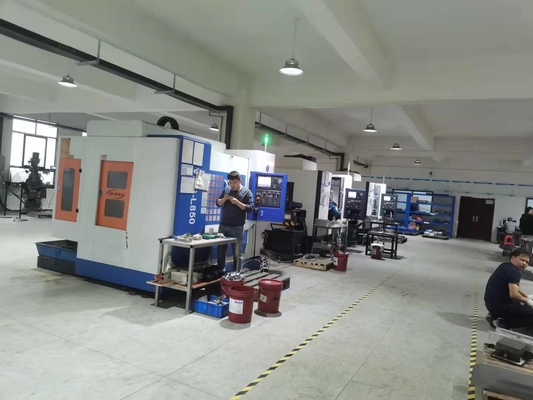

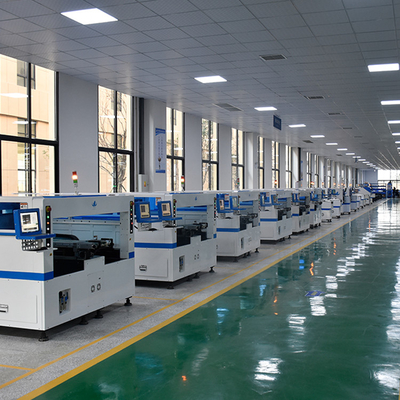

Our Company Introduction

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 5

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 6

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 7

Honor Customer

SMT Line Pick And Place Equipment Fight Vision Camera For 40X40MM Large Chip 8

FAQ

1	What’s the terms of payment? What about the trade term? T/T is OK. You can choose FOB Shenzhen.
2	Choose which mode of transportation? Our modes of transportation are flexible, including water, land and air transportation.
3	Is this machine difficult to operate? No, not at all. For our previous clients, at most 5 days is enough to learn to operate the machines.
4	Is your software interface in English? English interface and Chinese interface are both available.
5	Do you have oversea after sale service? We can offer technical support abroad. If you have any technical problem, our engineers will support you promptly.
6	How is the training? After purchasing our machines, you can send your engineers to our factory, or we send our engineers to your factory, and then we will train your personnel to operate these machines. Online training and video tutorials. During the epidemic, if our engineers can't make it through, we also have special one-on-one online training and video tutorials..

Find me on Whatsapp: +86 19880662073 and let's discuss more. Thank you.
