Product Details:
Payment & Shipping Terms:
|
| Dimension: | 2788*1686*1375mm | Weight: | 1700kg |
|---|---|---|---|
| PCB Size: | Max:500*450mm | Heads: | 20pcs |
| Feeding Way: | Intelligent Double Head Feeder | ||
| High Light: | High Precision LED lights making machine,80000CPH LED lights making machine,LED lights SMT Placement Equipment |
||

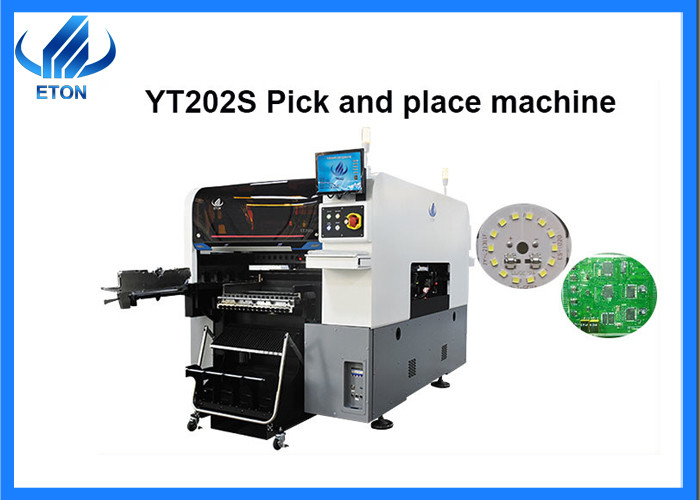

High precision 80000CPH LED lights automatic SMT pick and place machine
Product description
1.YT 202S is one of the newly launched YT series products from ETON. The dual-module placement machine can produce two identical PCB boards at the same time, improving production efficiency.
2.Under optimal conditions, the production capacity can reach 80000CPH, and the precision is very high, and the minimum mounted components can reach 0201.
3.The feeder is equipped with a special docking cart The double-sided station has 32PCS, which can load 64 trays of materials, and the single-sided station has 16PCS and can load 32 trays of materials.
Double-head intelligent feeder, one equivalent to the original two feeders, realizes high-speed and stable feeding through optical correction.
Support multi-layer IC Tray feeder, realize easy completion of alternate work with docking cart.
Machine parameter
| 1.PCB |
|
Suitable for max PCB size is 500*450mm, mini size is 50*50mm PCB using cylinder clamping, track width adjustable for clamping The Rail 1 is fixed but other is flexible The PCB thickness is 0.5-4.5mm |
| 2.Camera |
| The No.of camera is 4 sets digital camera, head flight vision recognition component, vision alignment, mark correction |
| 3.Precision |
| The repeat precision is ±0.02mm, support for 0201-40*40 IC |
| 4.Component range |
|
Mini 0201-40*40mm package and IC, apply to BGA, CSP etc. Max mounting height is 20mm |
| 5.Mounting speed |
| The optical speed is 80000 CPH with 20 mounting heads |
| 6.Feeding way |
| Intelligent double head feeder |
SMT Production line:
Company profile:
Our Clients:
ETON as the leading manufacturer of global photo electronic high speed pick and place machine, the products are exported more than 20 countries and regions, including India, Vietnam, Tunisia, Egypt, Turkey, Russia, Thailand, etc.Take India as an example,We have many big clients in India, Such as RK,SURYA,Fiem,Calcom,POLYCRB, etc. We have sold over a hundred machines to India.
After-sales services:
(1).Free technical support: 7*24 hours online technical service.
(2).Warranty: 1 year. During the warranty period, any parts that need to be repaired and replaced are free.
(3).We have local India engineer, As long as you buy the machine, we will arrange engineers to install, debug and training you for free, until you learn to operate the machine, service is very convenient. We have offices in Mumbai and New Delhi, very quick to support.
(4) If necessary, Chinese engineers will come to your factory for free install and training.
(5) Besides India, We also have local engineers in Egypt, Turkey. Can provide you with timely services
(6).Free upgrade software: machine software is developed by our company, so we know how to make it more intelligent and we provide life-long free upgrade software for customer who purchase the machine.
(7).we can provide whole line solution if you want. We are very professional on SMT field.
FAQ:
(1). How about the Training?
We provide the online remote training service, and we will offer you the operating video and manual for user’s repeatedly learning.
(2).Which language is the software? Can you provide software updates?
English and Chinese is OK. Free to upgrade software for lifetime.
(3). Can we customize the machine?
Of course. All of our machine can be customized.
(4).What are the terms of payment?
FOB Shenzhen is OK
(5).Why are your products more expensive than others?
I am more expensive than others because we use imported brand parts to ensure the quality. I think we should see the longer-term value brought by our products, such as the market occupied by the increase of output.
