Product Details:
Payment & Shipping Terms:
|
| Dimension: | 3454*3035*1777mm | Weight: | 3100kg |
|---|---|---|---|
| PCB Thickness: | 0.1-0.5mm | Mounting Mode: | Group Picking And Group Picking |
| Mounting Height: | 5mm | Power: | 380AC 50HZ |
| Display: | LED Display | Warranty: | 1 Year |
| High Light: | 136 Heads SMT mounter machine,Flex Strip SMT mounter machine,Flexible Strips SMT chip Mounter |
||

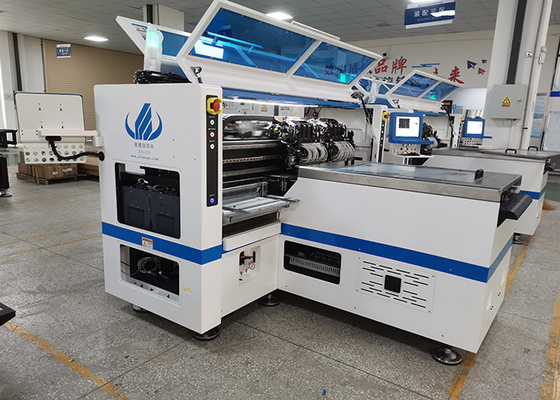

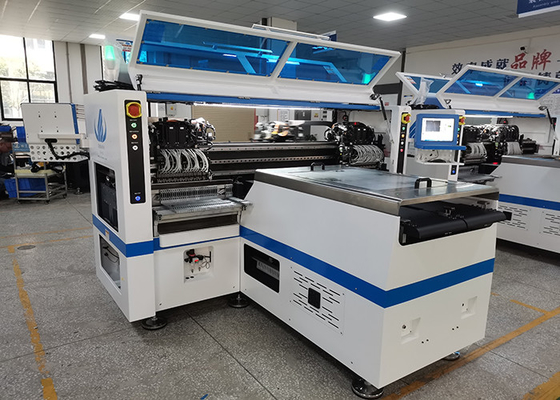

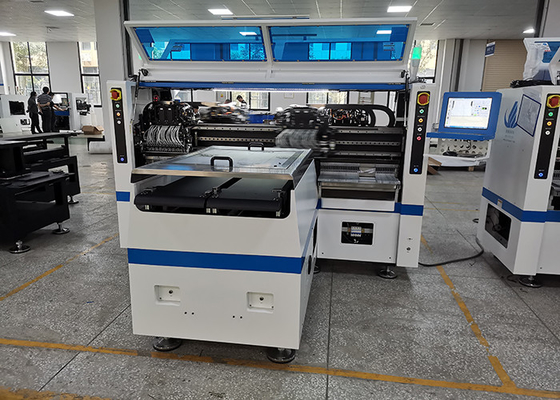

ETON T9-2S 500000CPH over high-speed 136 heads for flexible strip SMT mounter machine
Machine description
Diverse functions, efficient production.High-speed modular head. Eton tech adjustable placement head, apply to 3014/3020/2835/5050/resister, capacitor, bridge rectifier etc. The optimal capacity can reach 500000CPH.
Machine feature
1. The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
2. Flight recognition camera,no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
3. Automatic production with identification data, correction and fill missing component automatically
4. Intelligent electric feeder, supporting high-speed machine series.
5. With the function of filling missing component automatically, realize industry 4.0 unmanned workshop.
Machine parameter
| Repeat precision | ±0.05mm |
| Mounting height | ≤5mm |
| Mounting speed | Double side: 500000CPH, single side: 250000CPH |
| Components range | LED3014/3020/2835/5050 and resistor, capacitor,bridge rectifier etc |
| Power consumption | 9.6kw |
| Conveyor transmission | Max length:1000mm |
| Position mode | Optical |
| Heads | Double side: 136pcs |

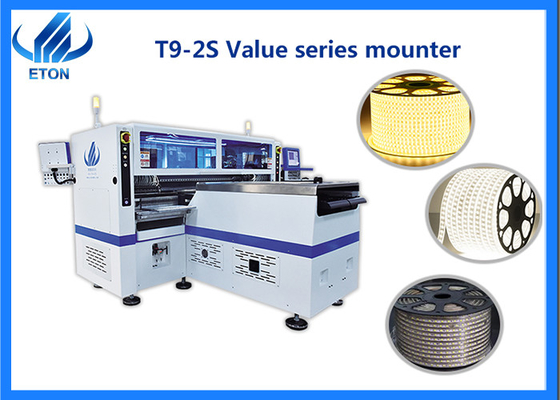

Application
High-speed professional pick and place machine, Suitable for mounting any length flexible strip and rigid PCB board.
Components range: LED3014/3020/2835/5050 and resistor, capacitor,bridge rectifier etc
Certificate
ETON obtains a number of intellectual property technologies, including 9 invention patents,12 software copyrights, 112 practical patents. ETON is rated as “Shenzhen high-tech enterprise”“Shenzhen TOP brand”etc.
Package
Our products are packed in vacuum wooden cases.
Each process of packaging is carefully completed by our professional packaging personnel to ensure that customers can receive complete products.
Exihibition
Our products are exported to more than 20 countries and regions, such as South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil, Iran,etc.
FAQ
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
Q: How about the quality of your products?
A: We have more than 20 years of experience in this industry, the quality of products is guaranteed, the products are popular at home and abroad, and have won the trust of many customers.
Q: Why choose us?
a: Best price & Best shipping & Best service
b: More than ten years of experience in research and development production and sales.
c:we have established overseas offices and local engineers in Egypt, Turkey, India,etc.
d: Patents: 9 invention patents, 12 software copyrights, 112 practical patents.
e: Free installation and training, software lifetime free upgrade,etc.
