| Dimension: | 3100*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| Display: | Touch Screen Monitor | NO.of Camera: | 5 PCS |
| Mounting Speed: | 250000CPH | Components Space: | 0.5mm |
| Power: | 380AC 50HZ | Feeding Way: | Electric Feeder With Double Motor |
| High Light: | pick and place machine 250000 CPH,Flexible Light pick and place machine,Light High Speed Pick And Place Machine |
||

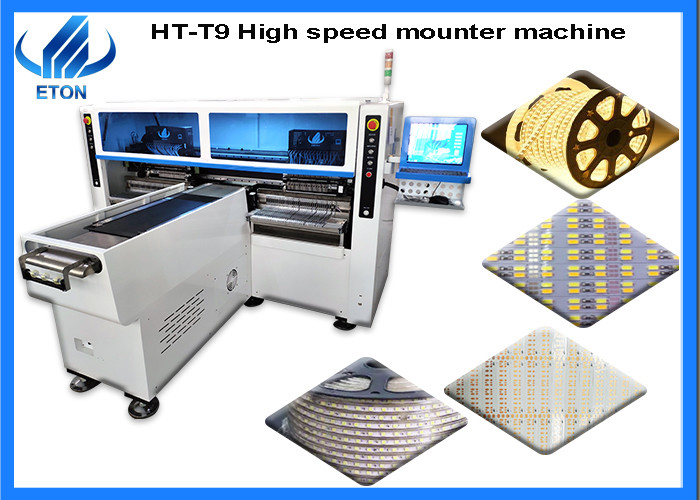

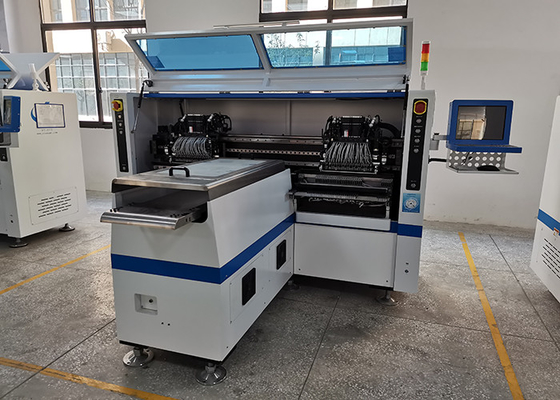

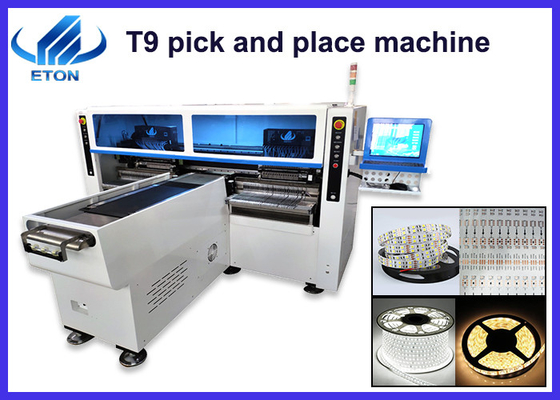

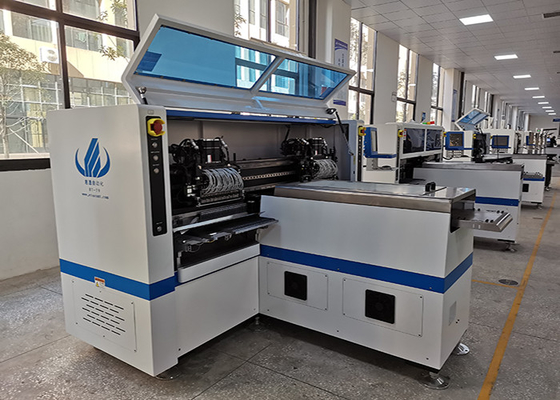

High speed pick and place machine reach 250000CPH for flexible light with 68 heads
●Dual arm magnetic linear high-speed mounter for flexible strip(no wire), producing 4 types materials at the same time capacity reach 250000CHP, available for 5M,50M, or any length of flexible strip and roll to roll.
●Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
●The PCB size is 250*any length.
●It has 68 PCS feeders station.
●Vacuum adsorption, cylinder splint, adjustable track width.
Producing with 4 types materials at the same time with high capacity, available for 5 M, 50M or any length of flexible strip and roll to roll.
Dual arm four module, 17 nozzles for each mounting part, part A or part B can be mounted separately or synchronously.
Calibration automatically, high precision, available for RGB.
Exclusive patent technology:group to pick and group to mount.
The speed can reach 250000CPH.
It has 5 PCS cameras to work.
| T9 | ||
| PCB | PCB length width | 250*any length |
| PCB thickness | 0.5-1.5mm | |
| PCB clamping | Vacuum adsorption, cylinder splint, adjustable track width | |
| Mounting mode | Group to pick and group to mount | |
| O.S. | System | Windows 7 |
| software | R&D independently | |
| Vision system | No. Of camera |
5 sets of imported camera (Vision alignment ,mark correction) |
| Mounting speed | 200000-250000CPH | |
| Electrical control | Independent research and development by ETON | |
| Feeding system | No. Of feeders stations | 68 PCS |
| No. Of nozzles | 68 PCS | |
Pre-sale service
Provide suitable production plan
Advise on plant electrical equipment and layout
Sale service
Report machine status in time
Follow up and send test machine video
After-sales service
Engineers can arrive on site to teach operation and debug the machine
24 hours to deal with problems online, arrange engineers to solve problems
Software lifetime upgrade
Regular visit (one year warranty period, spare parts repair free; Once or twice a year after warranty)
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
How is the transportation?
By sea, by air and land transportation.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
Do you have any customers in India?
Yes, we have many big clients in India, Turkey, Egypt and others.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
