Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Weight: | 1700kg |
---|---|---|---|
Mounting Speed: | 8000PCH | Type: | Automatic |
Dimension: | 2788*1686*1375mm | Pcb Thickness: | 0.5~4.5mm |
Name: | SMT Pick And Place Machine | Power Supply: | 380AV 50HZ |
Usage: | SMT Mounting Machine | Camera: | 4 Sets |
High Light: | led lighting pick and place machine,380V High Speed Pick And Place Machine,High Speed led light making machine |
High-speed machine pick and place machine for led lighting

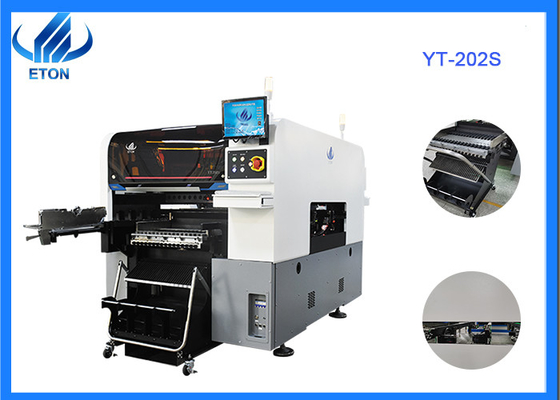

YT202S is a 90000CPH high-speed machine placement machine, suitable for circuit boards,
displays, drivers, lenses and various lamps. The minimum mountable size is 0202mm. It has
both high speed and versatility to achieve super practicability in the same class of products.
Dimension | 2788*1686*1375mm |
Total wight | 1700kg |
PCB length width |
Max size:500mm*450mm(single PCB) 500mm*300mm(double PCB) Min size: 50mm*50mm |
PCB thickness | 0.5~4.5mm |
Repeat precisio |
土0.02mm |
Mounting height | <=6mm |
NO.of camera | 4PCS |
Mounting speed | 80000CPH |
NO.of head | 20PCS |
NO.of feeders station |
32PCH |
it is multifacution SMT pick and place maachine that can be used to produce a variety
of products
Apply to high accuracy circuit boards, displays, drivers, lenses and various lamps
Double rail structure, can mount the same large PCB board with both arms at the same
time, realize flexible production
Off-line programming.save time of changeover cycle.
Software Al intelligent learning function and automatic optimization function.
SMT means Surface Mount Technology. It is the most popular technology and process in the electronic assembly
industry. It is a circuit assembly technology that mounts the surface mount components without leads or short leads
on the surface of the printed circuit board or the surface of other substrates, and then solders and assembles them
by reflow soldering or dip soldering.
Shenzhen ETON Automation Equipment Co., Ltd. was established in 2011. It is a national high-tech,
dual-soft enterprise integrating R&D, production, sales and after-sales technical services of SMT
high-speed placement machines and SMT peripheral automation equipment.
1. Do you have sale service?
We have strict management system and sale service.
a. Pre-sale service:Every machine will be checked carefully before shipping out. Buyers should check the
package once receiving.
b. Sale service:The professional sales recommends the right machine for you, and the engineers can help
you to quickly understand the status of machine.
c. After-service: The complete machine has a warranty period of 12 months from delivery and lifetime
maintenance service.We provide online Q/A and troubleshooting support and technical advice service.
Provide one to one after-sale service.
2. what can you buy from us?
Automatic stencil printer,semi-automatic stencil printer,SMT pick and place machine,reflow oven,conveyor etc.
3:What is your delivery date?
A:The delivery date is about 20 days upon the full payment
