Product Details:
Payment & Shipping Terms:
|
| Dimension (L*W*H): | 3100*2300*1550mm | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | 250mm*any Length | PCB Thickness: | 0.5-1.5mm |
| PCB Clamping: | Vacuum Adsorption, Cylinder Splint, Adjustable Track Width | No.of Feeders Station: | 68 PCS |
| No.of Head: | 68 PCS | Mounting Speed: | 250000 CPH |
| High Light: | Automatic Led Strip Light Making Machine,50m Led Strip Light Making Machine,250000CPH SMT assembly machine |
||
50M 100M led strip light assembly line automatic led strip light making machine
Machine features
1. Product Features Producing with Producing 2~4 types of materials at the same time with high capacity, available for 5M, 50M or any length of Flexible strip and Roll to roll.
| PCB | |
| PCB Length Width | 250mm*any length |
| PCB Thickness | 0.5-1.5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group to take and group to mount |
| Vision System | |
| No. of Camera | 5 PCS ( Digital camera) |
| Vision alignment, MARK correction | |
| Mounting Precision | ±0.02mm |
| Mounting Height | ≦5mm |
| Mounting Speed | 250000 CPH |
| Components | LED 3014/ 3020/ 3528/ 5050 and capacitors, resistors, bridge rectifiers, etc. |
| Components Speed | 0.5mm |
| No. of Feeders Station | 68 PCS |
| No. of nozzles | 68 PCS |
| Power | 380AC 50 HZ |
| Power Consumption | 6kw |
| Operating Environment | 23℃±3℃ |
| Conveyor transmission | Max Length :1000 mm |
| Transmission speed | >500mm/sec |
| Electrical control | Independent research and development by ETON |
| Motion control card module 1 set | Independent research and development by ETON |
| X,Y,Z Axis Drive way | High-end magnetic linear motor+ servo motor |
| Feeding way | Electric feeder with double motor |
Machine application

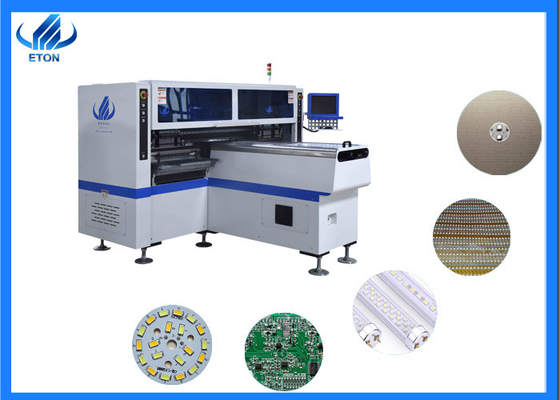

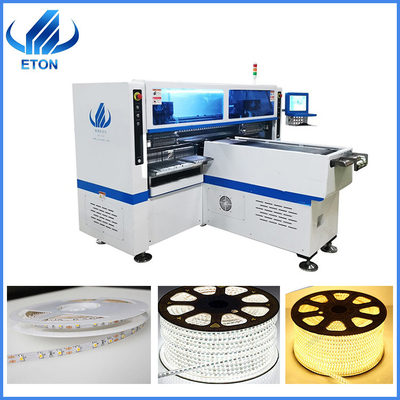

HT-T9 SMT strip light making machine mainly using in SMT strip light production line. For picking led chip and then mount on the PCB. In actual production line, it is using in led lightings, professional for 5 meters, 15meters, 25meters, 50 meters.

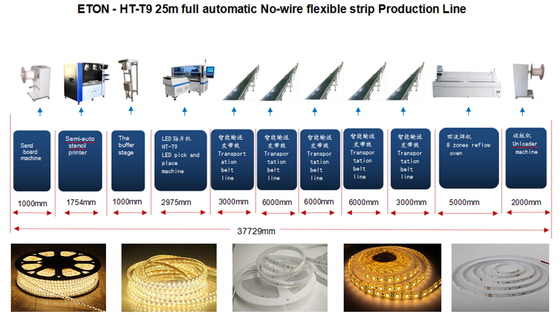

Machine lines
ETON Industrial Park in Jiangxi
1: 50000 square meters industrial park ensure the brand effect and present company Strength.
2: Own manufacturing center, equipped with an advanced processing and manufacturing center, strict quality control, and standardize production, streamline production processes make our machines has high quality standard and strong supply capacity.
3: More than 10 years LED lighting field experiences sharing, provide the most suitable SMT program to every client.
Services
1.Free technical support: 7*24 hours online technical service.
2.Free installation and training: we have established offices overseas. We can arrange engineers to go directly to the factory for free installation and training.
3.Free upgrade software: machine software is developed by our company, so we provide life-long free upgrade software for customer for customer who purchase the machine.
4. We can provide SMT production line solution with you.
