Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 3454mm | Width: | 3035mm |
| Height: | 1777mm | Total Weight: | 3100kg |
| System: | Windows 7 | Software: | R&D Indenpendently |
| High Light: | LED Lights Pick And Place Equipment,Double Module SMT Pick And Place Equipment,500000CPH smt placement equipment |
||

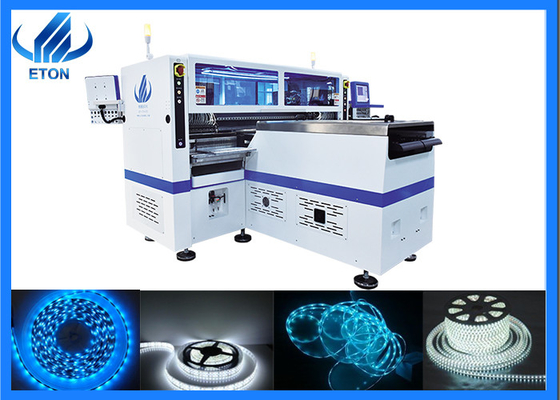

LED lighting strip smt pick and place machine 500000CPH 136 heads with double module
Main parameter
| PCB size | 250(±10)mm*any length |
| PCB thickness | 0.1-0.5mm |
| PCB clamping | Vacuum adsorption,cylinder clamping,track width adjustable |
| Mounting way | Group to take and group to place |
| Mounting mode | Double rail+four group of placement heads |
| Mounting speed | 500000CPH |
| No.of heads | 136 PCS |
| No.of camera | 10 sets |
| Components range | LED 3014/3020/2835/5050 |
| Feeding way | Intelligent electric feeder with double motor |
| No.of feeder station | 136 PCS |
Machine feature
1. The newly developed dual-mode high-speed chip mounter can produce two PCB boards at the same time, reducing wiring costs.
2. The mounting accuracy is less than 0.05mm, with high accuracy. It is suitable for various components such as led 30147/3020/2538/5050, etc
3. Unique material leakage detection and separate feeding function, ultra-high speed mounting capacity, and the maximum adjustable range of the feeder is twice that of the feeder.
4. Flight identification function, no pause to detect the presence of components and the adsorption status of components, so as to prevent mounting errors.
SMT flexible line
Generally speaking, the conventional production line is a complete production line consisting of a machine with a printing press, a docking station and a reflow oven.
However, the wiring of this machine T9-2S is very special because it is a dual-mode machine. Reflow soldering can share one. First of all, it reduces a certain area in space occupation. Second, this production line is equivalent to two T9 production lines, but the total cost is greatly reduced. Therefore, the advantage of T9-2S is more obvious.
FAQ
Q1: Who are you?
A:We are Shenzhen ETON automation equipment Co., Ltd., the global leader of photoelectric high-speed mounter and the manufacturing supplier of SMT Mounter and peripheral equipment.
Q2: Why should I choose to buy from you instead of from other suppliers?
A:Choosing us has the advantages of products, R & D and technical consultants. We will try our best to help you solve your problems.
Q3: How do you guarantee product quality?
A:We have special departments for the purchase of parts and the control of product quality. Of course, your technical consultant will follow up in the whole process of production to ensure product quality.
Q4:What services will you provide when buying your products?
A:Free lifetime software upgrade, free training for your employees until they can master the machine, free replacement of parts during the warranty period, etc
