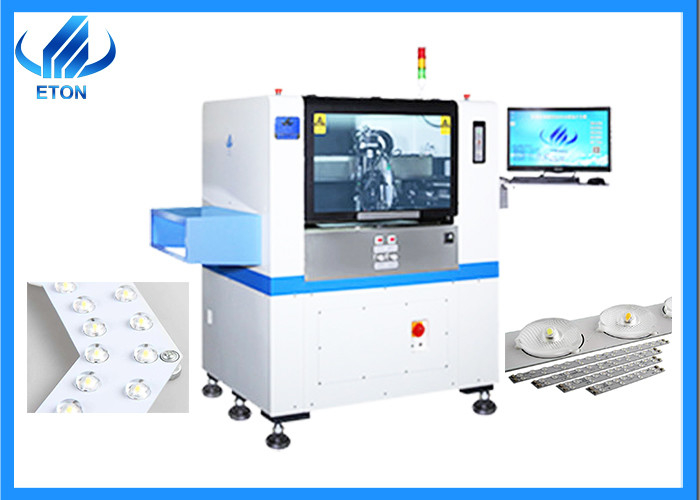

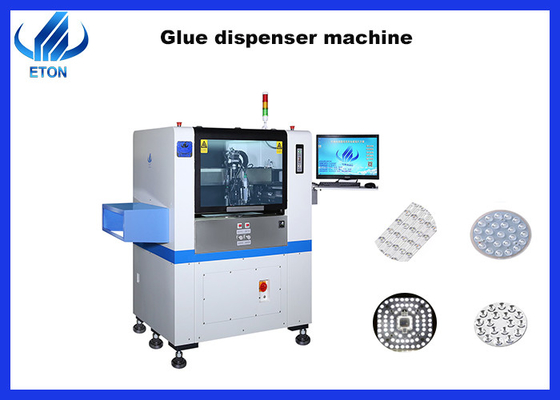

Automatic glue dispenser machine HT-D12-1200
Main feature
- English interface option, easy to operate
- CCD positioning system, visual positioning compensation automatically, correct the deviation of PCB.
- Large size track, suitable for different size of PCB.
- Contactless high speed injection dispensing head, dispensing glue continously with high efficiency.
- Intelligent dispensing head ensure good performance , high efficiency and lower glue wasting .
- Full time monitoring of glue volume, autoprompting low glue volume .
- Dispensing head constant temperature function, ensure the glue in liquid.
- Control the dispensing value in milliseconds, ensure the conformity of glue volume.
- Online visual programming, more convinent.
- Automatic program standby, start up production rapidly, intelligent manufacturing .
- Apply to various kinds (round, linear, lattice etc.) of products.
- High performance linear motor drive for X,Y axies, ensure high accuracy in high speed.
- Universal signal connecting, connect equipment online easily.
- Large capacity SSD industrial control system ,high speed access ensures system response speed.
Main parameter
| PCB size |
Max: 1200*500mm |
| PCB Clamping |
Adjustable pressure pneumatic |
| Dispensing mode |
Pneumatic injection value |
| No. of Camera |
1 set industrial camera |
| Dispensing speed |
90000CPH |
| Drive way |
Magnetic linear motor drive |
| Dispensing accuracy |
0.1mm |
| Heating temperature |
200℃ |
| Dispensing height |
<15mm |
SMT Line
The dispensing machine exists for mounting the lens, and there will be some wiring adjustment when used with the mounter:
General steps for lens production:
Lens production can be divided into two steps, the first step is to mount the light chips, and the second step is to mount the lens
LED chip line: semi-automatic printing machine prints PCB board, transfer by PCB conveyor, Mounter pastes lamp bead components, and reflow oven welding.
At this time, you will get a PCB board with only light chips, put it in the dispenser and start to produce lenses
Lens line: the dispensing machine dispenses the glue, PCB conveyor transmits it, the mounter pastes the lens, and then passes through the reflow oven to obtain a complete PCBA.
FAQ
Q1:How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q3:Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, Sira, and our enterprise has won the national high-tech award because of its strong R & D strength.
Q4:How to train our employees after buying the machine?
A:First of all, we have service points in some countries. If the customer's company is located in these countries, we can provide on-site training and installation. If not, please don't worry. We will help your employees master the machine through online training, or if circumstances permit, we can send employees to your factory for training.
