Name: | Pick And Place Machine | Model: | T9-2S |
---|---|---|---|
Feeders Station: | 136PCS | Heads: | 136PCS |
Dimension: | 3454*3035*1777mm | PCB Size: | 250(±10)mm* Any Length |
PCB Thickness: | 0.1-0.5mm | PCB Clamping: | Vacuum Adsorption, Cylinder Clamping, Track Width Adjustable |
Mounting Speed: | Double Side: 500000 CPH, Single Side: 250000 CPH | ||
High Light: | 500000CPH SMT pick and place equipment,Flexible strip pick and place equipment,Flexible led strip light manufacturing machine |

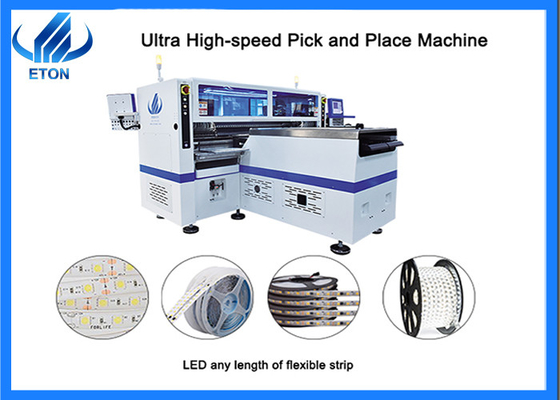

ultra high-speed Automatic 500000CPH LED Flexible strip SMT pick and place machine
Features
1.High speed and intelligent, ultra performance
(1)Component picking position can be adjusted according to PCB pad pitch, min 6.5mm, apply to led 3014/3528/3020/5050 resistor, bridge rectifier etc. Wide component range
(2) Recognition camera record the component leaking position of PCB, and fill the missing component accordingly
(3) The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
2. flexible production
(1)adjust the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.
(2)the distance of feeder station can be flexibly adjusted to achieve group placing , so as to realize the function of two time picking and once placing
(3)the range of feeding station is double of placement head, can produce four kinds of materials at the same time;
(4)intelligent electric feeder, supporting high-speed machine series.
3. high performance
(1)flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
(2)Automatic production with identification data, correction and fill missing component automatically
(3)The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
(4)With the function of filling missing component automatically, realize industry 4.0 unmanned workshop
Technical parameter
PCB size | 250(±10)mm* any length |
PCB thickness | 0.1-0.5mm |
PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Mounting way | Group picking and group placing |
Mounting mode | Double-rail+four groups of placement heads |
No. Of camera | 10 sets of digital camera |
Repeat precision | ±0.05mm |
Mounting height | ≦5mm |
Mounting speed | Double side: 500000 CPH, Single side: 250000 CPH |
Components | LED 3014/ 3020/ 3528/ 5050 and resistor, capacitor, bridge rectifiers etc. |
power | 350 AC 50Hz |
Power consumption | 9.6KW |
Electrical control | Independent research and development by ETON |
Motion control card module 2 set | |
Feeding way | Intelligent electric feeder with double motor |
No. Of feeder station | Double side 136 PCS, Single side 68 PCS |
No. Of head | Double side 136 PCS, Single side 68 PCS |
Company advantages
(1)Guaranteed company:ETON has 15 years of R&D experience, 52000m2 industrial park, 7 buildings, 500 staffs—Strong manufacturing strength;
(2)Quality equipment:from R&D to production by ETON, each process strict control, quality assurance;9 inventation patents, 112 practical patents, 12 software copyright;
(3)Suitable machines: various machines are apply for various products, DOB, LED bulbs, lens, streetlight, ceiling light, spotlight, flexible strip, electric board, power driver, household application, display min component 0201, highest capacity reach 500000CPH;
(4)Complete service: local engineers and office provide freely training and installation,software freely upgrade whole lifetime;
(5)Market and export: Help 80% of domestic LED factories to build production lines; Foreign exports to more than 20 countries and regions, such as Turkey, India, Egypt, Brazil, Russia, Pakistan, South Korea, etc
(6)Exhibition: ETON actively participates in various exhibitions at home and abroad, and lets our products show up in front of our customers. Our exhibitions include domestic Guangzhou Light Asia Exhibition, Shanghai Munich Exhibition, Chongqing LED exhibition, international exhibitions in India Mumbai exhibition, Pakistan exhibition, Egypt exhibition, Turkey exhibition and so on.
