| Dimention: | 2788*1686*1375 | Total Weight: | 1700kg |
|---|---|---|---|
| PCB Length Width: | Max：500*450mm Min：50*50mm | PCB Thickness: | 0.5-4.5mm |
| System: | Windows 7 | Software: | R&D Indepentently |
| No.of Camera: | 4pcs | Mounting Speed: | 80000CPH |
| Components: | Min 0201 ~40*40mm Tape Reel Packages And IC Tray Feeder Etc | Electrical Control: | Indepentent Research And Development By Eton. |
| High Light: | Docking Cart Pick And Place Machine,0201 Components Pick And Place Machine,80000 CPH LED SMT machine |
||

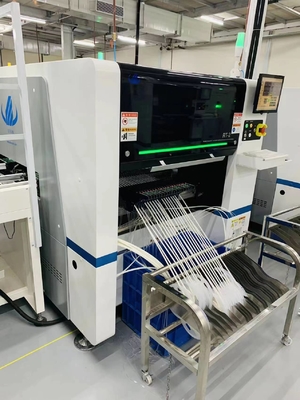

0201 components 80000 CPH led production line Pick and Place Machine
Adopt High-speed multi modular head, Adopt High-speed multi modular head,apply to
ultra small chip 0201 〜40*40mm large Chip.wider component range.
Fixed high pixel flight vision camera:High-speed flight vision camera,quickly captures
multiple head images at once, perform visual calibration of image position,alignment
correction, adjustable light source brightness.
Mark recognition:High-precision Mark recognition system, adopt 3-color illumination
recognition,apply to any shape Mark and LENS(Blu-ray scan),wider range of applications.
Docking Cart:Double side docking cart slot 32PCS,tape reel packages: 64PCS (single
side docking cart slot 16PCS,tape reel packages: 32PCS), freely switching between
docking cart and IC tray feeder(IC tray feeder:Option)
IC Tray Feeder:Support multi-layer tray feeder (IC tray feeder) installment.freely
switching between docking cart and IC tray feeder.
Software Al intelligent learning function and automatic optimization function
| Model |

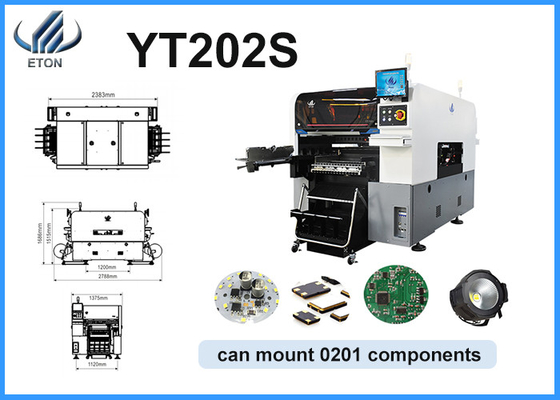

YT202S
|
| length | 2788mm |
| width | 1686mm |
| height | 1375mm |
| total weight | 1700kg |
| PCB length width |
Max:500*450mm (single PCB)/ 500mm*300mm(double PCB) MIN:50*50mm |
| PCB thickness | 0.5 - 4.5 mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| system | windows 7 |
| software | R&D independently |
| No.of camera | 4PCS(Digital camera) |
| Bottom vision camera recognition | |
| repeat precision | ±0.02mm |
| mounting height | ≤20mm |
| 8mounting speed | 80000CPH |
| No.of feeders station | Double side docking cart slot 32PCS,tape reel packages:64PCS(single side docking cart slot 16PCS,tape reel packages:32PCS),freely switching between docking cart and IC tray feeder (IC tray feeder:Option) |
| No.of head | Double side:20pcs(single side:10pcs) |
| power | 380AC 50Hz 6KW |
| operating enviroment | 23℃±3℃ |
| air supply | 0.4-0.6mpa(4-6kgf/cm²)150N/min |
| XYZ Axis drive way | High-end magnetic linear motor + servo motor |
| feeding way | Intelligent Double head Feeder |
High-speed flight vision camera,quickly captures multiple head images at once, perform visual calibration of image position,alignment correction,adjustable light source brightness.
Support multi-layer tray feederflC tray feeder) installment.freely switching between docking cart and IC tray feeder.
High-precision Mark recognition system, adopt 3-color illumination recognition,apply to any shape Mark and LENS(Blu-ray scan),wider range of applications.

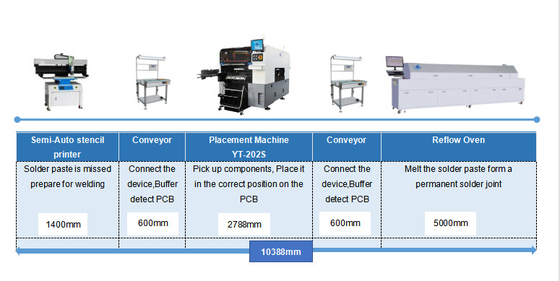

Main process of SMT Line for LED Tube manufacturing:
Step one: Print Solder paste on PCB
Step two: Mounting LED chip and capacitor,resistors on PCB.
Step three: Heating solder paste with PCB to welding together the component with PCB.
