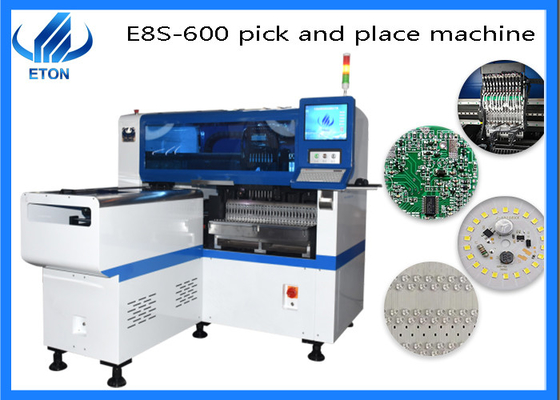

Product introduction
- PCB length width: max 600*500mm min 100*100mm
- 2 sets of imported camera , with vision for the flight identification, Mark correction
- XYZ Axis drive way:high-end magnetic linear motor and servo motor
- High-speed pick and place machine
- Software independent research and development by ETON
machine feature
PCB length width: max 600*500mm
Minimum mount 0402 elements, maximum Mount Range 15mm
Mounting components: LED chip, resistor, capacitor, lens, IC, shaped components,etc
Mounting mode:Group picking and separately placing, separately picking and separately placing
Machine parameter
| Head |
12 pcs |
| PCB thickness |
0.5-5mm |
| Display |
Touch screen monitor |
| Conveyor transimssion |
max 1200mm |
| Mounting height |
<15mm |
| Component space |
0.2mm |
| Transmission mode |
Auto online drive |
| Feeder |
28pcs |
Application
Mounting component:LED chip, capacitors, resistors, IC, shaped components etc
SMT layout
The semi-automatic production line is mainly composed of semi-automatic printing machine, pick and place machine, reflow oven and conveyor.
Package
Our products are usually packed in vacuum wooden cases, which can better protect the equipment from damage during transportation.
Honour client
Our products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc.
Our advantage
- We have our own industrial park, covering an area of 520,000 square meters.
- We have been in this business for over ten years.
- We have office and local engineer in Egypt, Turkey, India,etc.
- We can control it remotely, give machine a free upgrade
FAQ
Q: Why do you choose our product?
- our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
- Software lifetime free upgrade
- Free installation and training
- Provide 1-2 times a year free for machine repair, after the warranty period.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service. And we can arrange engnieer into door install and train for free. Teach you to operate the machine before you leave.
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
