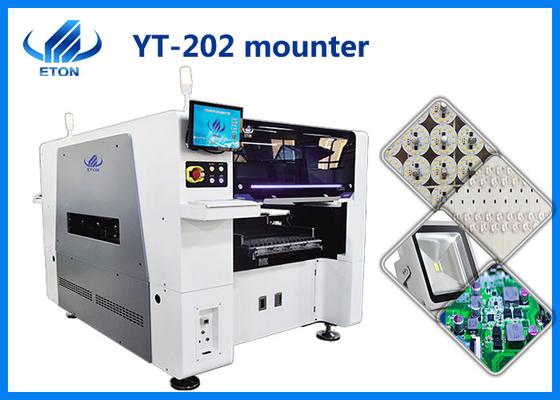

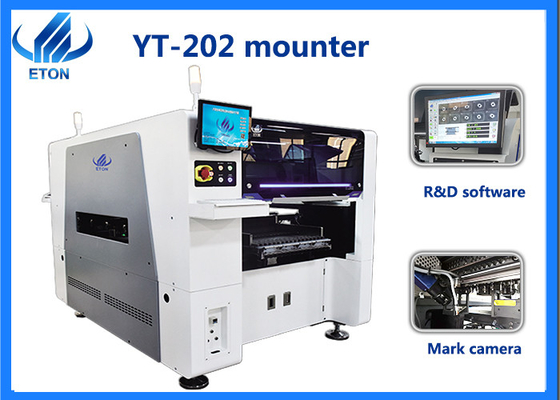

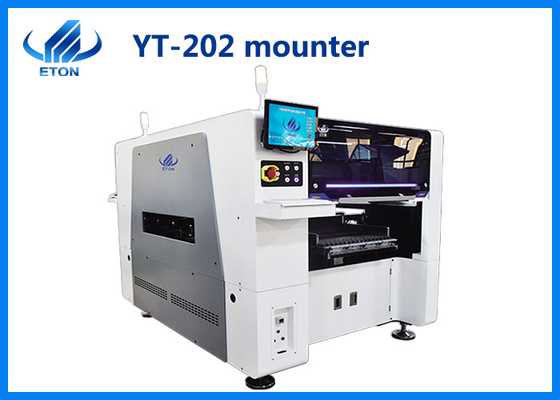

Honor series designed Multi-mounter capacity reach 90000 CPH Min 0201~10 mm
Machine main features
- Adopt High speed multi modular head, apply to ultra small chip 0201~10 mm large chip, wider component range;
- Brand new flight vision camera: Improve recognition performance, size up to 10 mm*10 mm;
- Vacuum sensing device: Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product;
- Ultra high speed capability: Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum speed reach 90000 CPH;
- Brand new self-developed high precision placement head;
- Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy;
- The placement head adopt independent vacuum detection, improve placement performance;
- Off-line programming, save time of changeover cycle;
- Software AI intelligent learning function and automatic optimization function.
- Two gantry, 10 spindles*2 Gantry, total 20 spindles;
- Flexible PCB handling capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.
Machine main parameter
| Model |
YT-202 |
| PCB size |
Max size: 500*450 mm(Single side)
500*300(Double side)
Min size: 50*50 mm
|
| PCB thickness |
0.5-4.5 mm |
| PCB clamping |
Cylinder clamping, track width adjustable |
| Software |
R&D independently |
| Production management MES system |
Customized (Option) |
| Off-line programming |
Available |
| Camera |
Head flight vision recognition component
Vision alignment + Mark correction
|
| Repeat precision |
±0.02 mm |
| Mounting height |
≦20 mm |
| Position mode |
Optical |
| Optimal speed |
90000 CPH |
| Component range |
Min 0201~10 mm packages and IC etc. |
| Position mode |
Optical |
| No.of heads |
Double side:20 PCS
Single side:10 PCS
|
| Feeding way |
Intelligent double head feeder |
| X,Y,Z Axis drive way |
High end magnetic linear motor + Servo motor |
SMT Line solution
A whole semi automatic line which needs several devices for a whole semi production, as semi auto stencil printer machine, conveyor, pick and place machine and reflow oven etc.
The blowing is the function of each machine:
- Semi auto stencil printer is aim of leaking solder paste or patching adhesive onto the solder pad of PCB to prepare for the welding of components;
- Pick and place machine is to mount light beads or other surface mounted components at the designated position of PCB board；
- Reflow oven is to melt the solder paste to fix and bond the components and PCB board.
- Conveyor is used for the connection between SMT production lines, as well as buffering, testing, testing PCB boards or manual plug-in of electronic components;
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Packages
Our package step is follow the blowing:
STEP 1: Film packaging to prevent the dust and water;
STEP 2: Packing in a foam cotton stretch a film to protect the outside of the machine;
STEP 3: Vacuum paper package and moisture proof bag, to keep dry during the transportation;
STEP 4: Equip with sturdy wooden boxes to ensure the safety of the machine, then transportation by trucks to the specified port.
Delivery: by sea, air, land transport.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
High service efficiency, there is service office in India. Besides India, we also have local engineers in Egypt, Turkey. Can provide you with timely services.
Chinese engineers provide online services. If necessary, Chinese engineers will come to your factory for free install and training.
Quality First, Client-oriented, Continuous Improvement.
24 hours online for you to answer.
