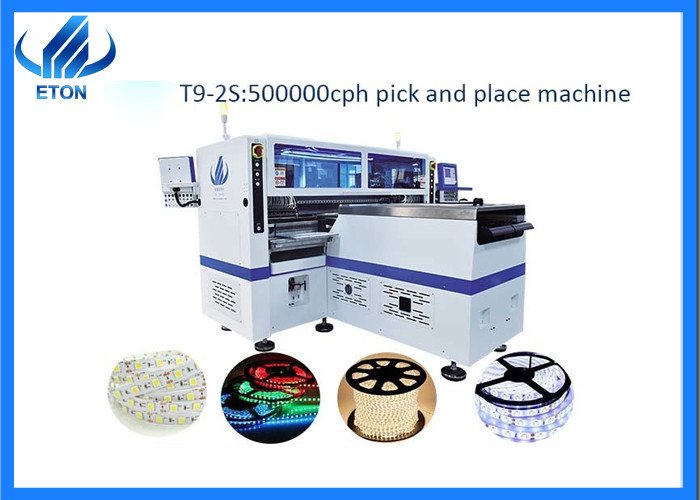

Double rail LED Flexible Strip Mounter 136 Heads 500000CPH SMT Chip Mounter
T9-2S machine is one of the newly launched YT series products from ETON.
Machine Features :
1.High speed and intelligent, ultra performance
(1)Component picking position can be adjusted according to PCB pad pitch, min 6.5mm, apply to led 3014/3528/3020/5050 resistor, bridge rectifier etc. Wide component range
(2) Recognition camera record the component leaking position of PCB, and fill the missing component accordingly
(3) The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
2. flexible production
(1)adjust the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.
(2)the distance of feeder station can be flexibly adjusted to achieve group placing , so as to realize the function of two time picking and once placing
(3)the range of feeding station is double of placement head, can produce four kinds of materials at the same time;
(4)intelligent electric feeder, supporting high-speed machine series.
3. high performance
(1)flight recognition camera, no pause to detect the presence or absence of components, component adsorption state, prevent placement errors
(2)Automatic production with identification data, correction and fill missing component automatically
(3)The clamping rod is driven by the air cylinder to correct the materials taken by mounting head.
(4)With the function of filling missing component automatically, realize industry 4.0 unmanned workshop.
Technical parameter:
| Model | T9-2S |
| Dimension(L*W*H) | 3454*3035*1777mm |
| Weight | 3100kg |
| PCB length width | 250mm(±10)*any length |
| PCB thickness | 0.5~0.5mm |
| Mounting way | Group to picking and group to mount |
| Mounting mode | Double rail+four group of placement heads |
| Mounting height | ≤5mm |
| No.of camera | 10PCS |
| Vision alignment, Mark correction | |
| Components | LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Power consumption | 9.6KW |
| Optimum Mounting speed | 500000CPH |
| No. Of feeders station | Double side:136 PCS(single side:68pcs) |
| No. Of head | Double side:136 PCS(single side:68pcs) |
| X,Y Axis drive way | High-end magnetic linear motor+Servo motor |
| Feeding way | Intelligent electric feeder with double motor |
Machine main part:
Application:T9-2S can mount 5/10/50/100/150/200 m and flexible light strips of any length,roll to roll strip
