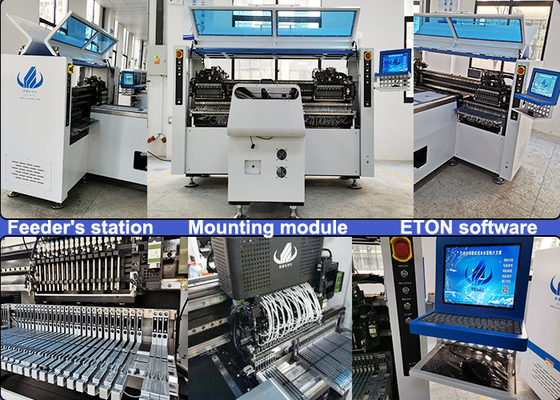

Machine features
Apply to the 0.6m,0.9m,1.2m rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistor.
Group to take and group to mount
The speed can reach 150000-180000CPH.
The software is R&D independently by ETON.
It has 5 sets camera.(vision alignment, Mark correction)
Calibration automatically, high precision, available for RGB.
Machine parameter

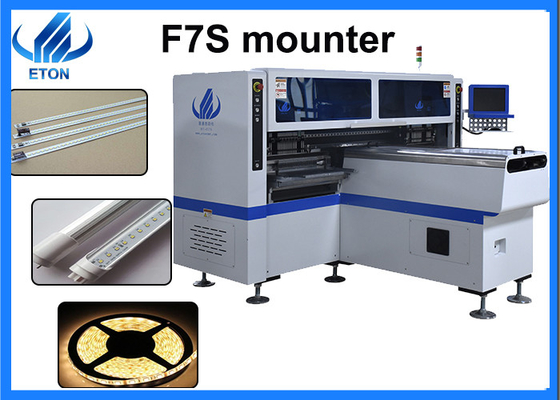

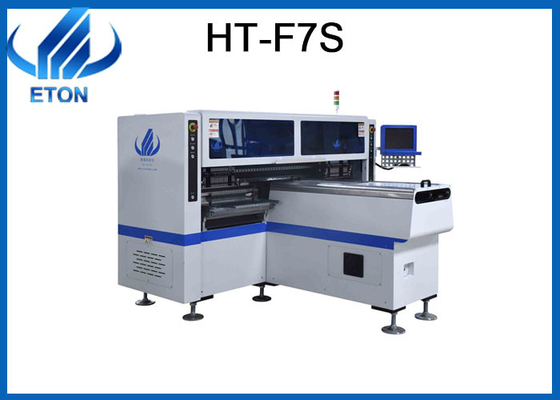

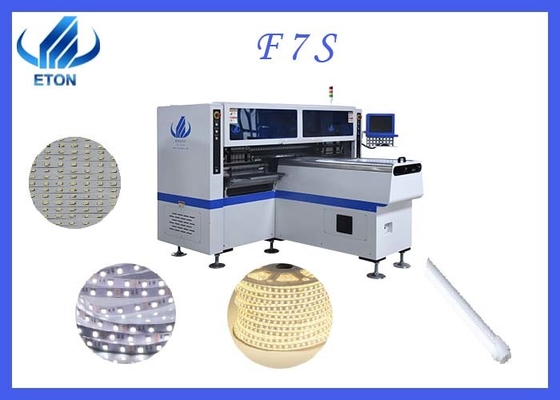

| F7S |
| Dimension | 2700*2300*1550mm |
| Total weight | 1700kg |
| PCB length width | Max:1200*330mm Min:100*100mm |
| PCB thickness | 0.5-5mm |
| PCB clamping | Adjustable pressure pneumatic |
| No. Of camera | 5 sets |
| Repeat mounting precision | ±0.02mm |
| Components | LED 3014/3020/3528/5050 and resistors, capacitors, bridge rectifiers, etc. |
| No. Of feeders station | 68PCS |
| No. Of heads | 34 PCS |
| Feeding way | Electric feeder with double motor |
Our exhibition
Our company has participated in various exhibitions in foreign countries, including India Mumbai Exhibition, India Delhi Exhibition, Egypt Exhibition, Turkey Exhibition, Pakistan Exhibition, etc.
About company
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Package
Step 1: Film packaging
Prevent the machine from dust, water.
Step 2: Vacuum packing
Duplicate protection from oxidation
Step 3: Wooden box packing
Effectively prevent from hit crash and shaking.
FAQ
what’s the minimum quantity of an order for your company?
1 set machine are welcomed to order, mixed orders are also welcomed.
Why choose us?
We are the leading manufacturer of global optoelectronic high-speed pick and place machine, we have more than 10 years experience, Independent offices have been set up in India, Turkey, Egypt and other countries to provide better services.
What’s the terms of payment? What about the trade term?
T/T, L/C are OK. 30% pay in advance, the balance before shipment. You can choose EXW Shenzhen.
Can you provide a whole line solution?
Yes, we can, we can supply SMT line and some LED production lines.
Can we customize the machine?
Of course, all of our machines can be customize.
