Product Details:
Payment & Shipping Terms:
|
Dimension: | 2700*2300*1550mm | Total Weight: | 1700KG |
---|---|---|---|
PCB Length Width: | Max:1200*330mm Min:100*100mm | PCB Clamping: | Adjustable Pressure Pneumatic |
Mounting Mode: | Group Picking And Group Placing | No.of Camera: | 5 Sets |
Mounting Speed: | 150000-180000CPH | Components Space: | 0.5mm |
High Light: | Rigid PCB pick and place machine,1m Strip pick and place machine,180000CPH pcb smt assembly machine |
Machine parameter

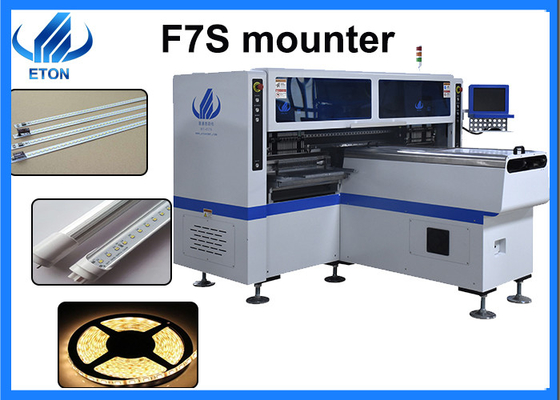

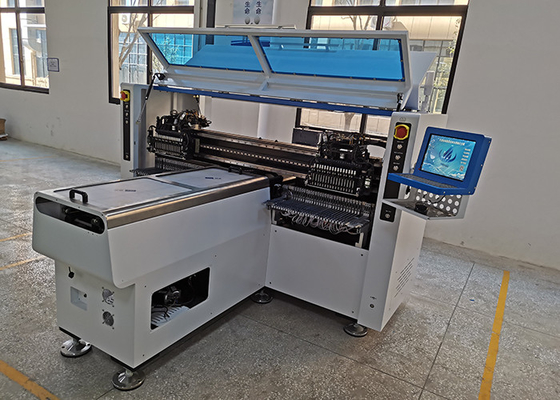

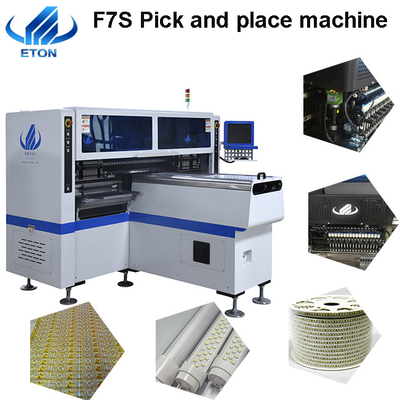

F7S | |
Length*Width*Height | 2700*2300*1550mm |
Total height | 1700kg |
PCB length width |
Max: 1200*330mm Min: 100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting mode | Group to take and group to mount |
No. Of camera | 5 sets (vision alignment, mark correction) |
No. Of feeder station | 68 PCS |
No. Of head | 34 PCS |
Mounting speed | 150000-180000CPH |
Power | 380AC 50HZ 6KW |
Feeding way | Electric feeder with double motor |
XYZ axis drive way | High-end magnetic linear motor + servo motor |
Machine Application
Apply to the 0.6m,0.9m, 1.2m. rigid PCB and 0.5m,1m LED flexible strip. Producing with 2-4 types of materials with high capacity, available for board with any proportion of LED chip and resistors.
Company introduction
Shenzhen ETON Automatic Equipment Co.,Ltd. was founded in 2011. It is a manufacturing and process solution provider focusing on R&D, production, sales and service of SMT high-speed pick and place machines and SMT peripheral automation equipment.
ETON is the leading manufacturer of global opto-electronic high-speed pick and place machine, the products are exported to more than 20 countries and regions, including South Korea, India, Vietnam, Tunisia, Egypt, Turkey, Russia, Brazil etc. ETON obtains a number of intellectual property technologies, including 9 invention patent, 112 practical patents, 12 software copyrights.
Service
Company five level management policy:sincere business, focus on R&D, manufacturing intentions, considerate service, customer trust.
“No worries ” after sale service concept: the Pearl River Delta region to arrive within 4 hours, day to solve; Guangdong Province 24 hours.
ETON mission: professional, excellent technology, sharing the results.
ETON goal: A national well-known brand, build world-class enterprises.
ETON purpose: to create value for customers, creating benefits for society.
ETON vision: Determined to become the world’s most competitive manufacturer and service provider of pick and place machine and high-end electronic testing equipment.
FAQ
Do you have oversea after sale service?
Yes ,We can provide technical support abroad. If you have any technical problems, our engineers will provide you with timely support. Abroad, we have India, Turkey and Egypt office and local engineer, etc.
It’s hard to use the machine?
Machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company. About 3-5 days you can operate.
What machine can I buy from you?
We can provide a product line of SMT. Such as Multi-function placement machine, high-speed placement machine, dispensing machine, loading machine, printing machine, reflow soldering, etc.
Does the price include the spare parts(feeder and nozzle)?
Different clients has different requirements on spare parts, it is not fair to the clients to add in equivalent price for spare parts. So we don’t add the spare parts cost on price, and price is only for machine.
Are you a reliable cooperator?
Yes, we specialized in SMT parts over more 10 years in Shenzhen China. We participated in many exhibitions in abroad and domestic. We have a more 50000㎡industrial park, total 7 building and 300-500 employees. We obtain a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights. And our high speed machines’ speed can reach 250000CPH, broken the world record.
