High Precision Multifunctional SMT Pick And Place Equipment 12 Heads For 0201 Component

High precision New product 12 heads mount 0201 component multifunctional pick and place machine

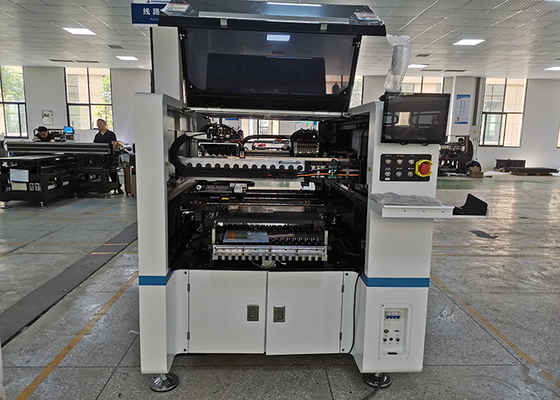

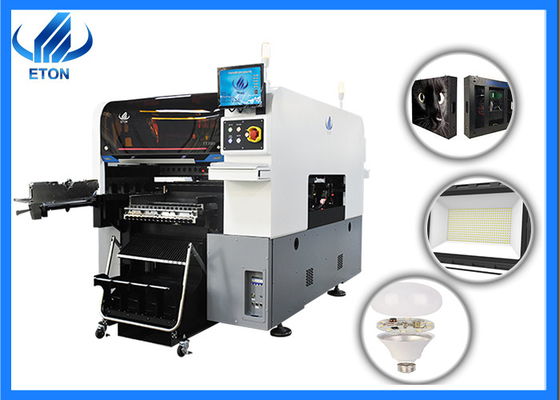

Machine description--YT202S

1. Length*width*Height: 2788*1686*1375mm Total weight:1700kg

2. The PCB size: max size: 500*450mm(single PCB) 500mm*300mm (double PCB) min:50*50 mm

3. PCB Clamping: Cylinder clamping, track width adjustable

4. No.of camera: 4 sets (Bottom vision camera recognition); feature:Mark correction+vision alignment

5. Apply to 0201~40*40mm tape reel package and IC tray feeder etc

6. High-speed multi modular head,Non replace modular head

7. The optimal can reach 80000CPH

Feature--YT202S

• Components with size less than 40*40mm or height less than 20mm can be used to high speed and high precision identification.
• With Docking cart, smart double-head tape feeder, it can achieve stable, accurate and high-speed feeding. IC tray feeder,supported multi-layer tray feeder installment, freely switching between docking cart and IC tray feeder.
• Brand new self-developed high-precision placement head.
• Combine high accuracy Mark recognition camera with fixed flight vision camera, ensure placement accuracy.
• Off -line programming, save time of changeover cycle.
• Flexible PCB handing capabilities, double rail, both gantry can mount the same large PCB at the same time, realizing flexible production.

Application

YT202S, apply to 0201mm~40*40 mm tape reel package and IC tray feeder.

Suitable for LED bulb, street light, panel light, down light, DOB, electric board, etc

As long as the PCB range is within 0201mm~40*40 mm, it can be mounted.
