Product Details:
Payment & Shipping Terms:
|
| Name: | Auto Stencil Printer Machine | Control Method: | PC Control |
|---|---|---|---|
| Squeegee Angle: | 55° | Squeegee Pressure: | 0-10kg/c㎡ |
| High Light: | Full Automatic stencil printer machine,Easy Operating stencil printer machine |
||

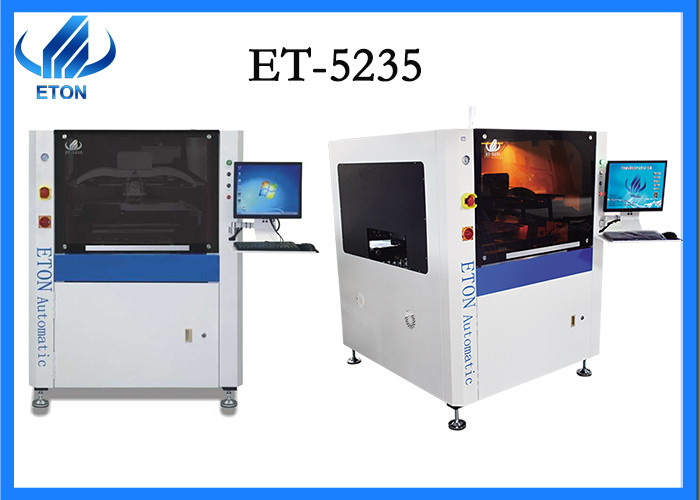

Full automatic vision stencil printer machine ET-5235 with easy operating
Function
The function of the solder paste printer is to print the solder paste on the pads of the PCB to prepare for the connection between the electronic components and the PCB board.
In this printing process, to achieve better quality, the solder paste printer is the key
solder paste
Solder paste is a new type of soldering material that came into being with SMT. Viscosity is an important feature of it. There are also certain requirements for the use and handling of solder paste:
1. Must be refrigerated
2. It needs to be warmed to room temperature before use
In order to achieve better product quality, the selection of solder paste is also critical.
Feature
| PCB transport and clamping system |
Special internal toothed conveyor belt to prevent jamming Programmable transport speed control Adopt flexible side clips and segmented support. |
| Stencil positioning system |
Arch bridge suspension type direct connection scraper Large and small stencils are universal, with excellent wide applicability |
| Scraper system |
Embedded scale, never fall off A variety of demoulding methods, suitable for different PCB boards Rail-type scraper system for improved operational stability and longer service life |
| Operating interface |
Easy-to-learn operation interface Good man-machine dialogue function Do program files have tutorial navigation It has the functions of operation log, fault record analysis and diagnosis, etc. |
| Image and optical system | X, Y axis adopts high-precision screw, driven by servo motors at both ends |
Parameter
| Screen Frames |
Max size: 737mm
|
| Min size: 470mm | |
| Thickness: 25-40mm | |
| PCB size | Max: 520*350mm Min: 50*50mm |
| PCB warpage | ＜1°(Max PCB diagonal) |
| PCB location | Support system: Magnetic pin/up-down table adjusted by manual |
| Clamping system: Unique top flattened, side clamping | |
| Cycle time | ≤9s |
SMT line
In SMT wiring, the automatic printing machine is the first step of all processes. In a SMT production line, the general process is:
Printing---SMD---Reflow Soldering.
FAQ
Q1:How to pay after buying the product?
A:For payment, we only support L/C and T/T at present. If you choose T/T, you will have to pay 30% deposit, and the remaining amount will be paid before shipment.
Q2: What is the application scope of your product?
A:Our products have great advantages in the production of LED lamp drivers and light source. If you are an LED lamp manufacturer or are transferred to this industry, we can provide you with more information.
Q3:Have you obtained any certificates for your products?
A:Yes,Our machine has won many certificates, such as CCC, CE, Sira, and our enterprise has won the national high-tech award because of its strong R & D strength.
Q4:How to train our employees after buying the machine?
A:First of all, we have service points in some countries. If the customer's company is located in these countries, we can provide on-site training and installation. If not, please don't worry. We will help your employees master the machine through online training, or if circumstances permit, we can send employees to your factory for training.
