Product Details:
Payment & Shipping Terms:
|
| Name: | Pick And Place Machine | Warranty: | 1 Year |
|---|---|---|---|
| Mounting Speed: | 40000 CPH | No. Of Head: | 10 |
| High Light: | SMT pick and place machine 40000 CPH,Vacuum Sensing pick and place machine |
||

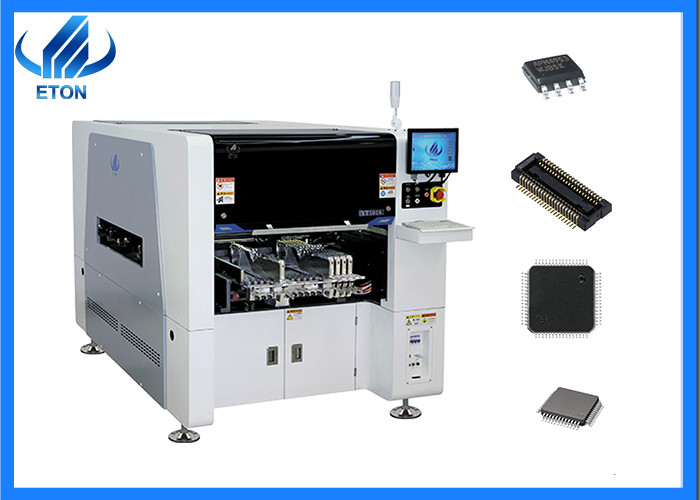

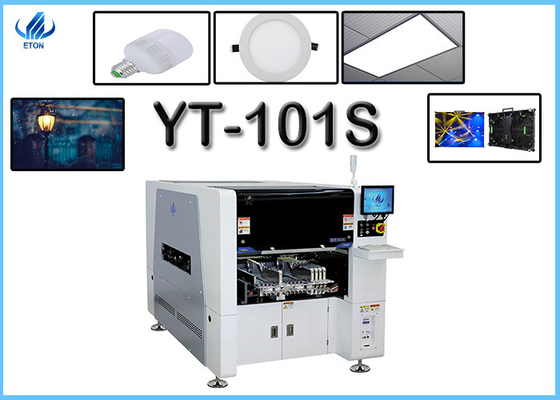

Household Appliance driver board SMT making machine YT101S with 0201 BGA
Feature
| Machine highlights |
High -speed multi modular head Brand New Flight Vision Camera Vacuum Sensing Device Ultra-high-speed Capability |
| Flexible Production |
Fixed Flight Vision Recognition Camera(Option) Apply to 0201~40*40mm tape reel package Support YT series double head intelligent electric tape reel feeder. |
| High performance |
Brand new self-developed high-precision placement head. High-speed precision head flight vision camera capture the image of placement accordingly,improve the speed and accuracy of placement. The placement head adopt independent vacuum detection,improve placement performance. Off-line programming,save time of changeover cycle. Software Al intelligent learning function and automatic optimization function. |
Parameter
| PCB size(L* W) |
Max size: 500mm*350mm Min size: 50mm*50mm |
| PCB thickness | 0.5-4.5mm |
| PCB clamping | Cylinder clamping, track width adjustable |
| Rail | Rail 1 is fixed |
| System | Windows 7 |
| Soft ware | R&D independently |
| Production management MES system | Customized(Option) |
| Off-line programming | Available |
| No. of camera | 2 Sets ( Digital camera ) |
| Head flight vision recognition component | |
| Vision alignment+Mark correction | |
| Repeat precision | ±0.02mm |
| Mounting height | 20mm |
| Mounting speed | 40000CPH (Optimum speed) |
| Components range | Min 0201 ~40*40mm packages and IC etc. |
| X,Y,Z Axis drive way | High-end magnetic linear motor +Servo motor |
| No. of Feeder station | Station: 16pcs,Tape「eel packages 32pcs) |
| No. of Heads | 10PCS |
| Feeding way | Intelligent Double head Feeder |
Appliance
Support component 0201-40*40mm tape reel package Such as BGA, CSP, QFP, etc.
Suitable for various home appliance driver boards, TV displays and various LED lights.
About us
ETON has more than 20 R&D experience and an industrial park of 50,000 square meters. Up to now, it has obtained a total of 133 exclusive patents. 80% of China's LED lights manufacturers are our customers, and the products are exported to more than 20 countries overseas.
Exhibition
ETON has participated in many exhibitions, including India exhibition, Thailand exhibition, Pakistan exhibition, Turkey exhibition, Egypt exhibition, etc.
Service
We have first-class after-sales service
We have offices in Egypt, Turkey, India and other countries
If you buy our machine, we will provide a one-year warranty period, and any damaged parts within the warranty period will be replaced free of charge.
We will send engineers to install the machine for free, train employees, and help you to produce smoothly, no matter which country you are in.
We will provide free software upgrades for life, save this part of your expenses in the future, and ensure that your production has always been at the forefront of the industry.
