Multifunctional YT202S mount for 0201 the optimal capacity can reach 80000CPH pick and place machine

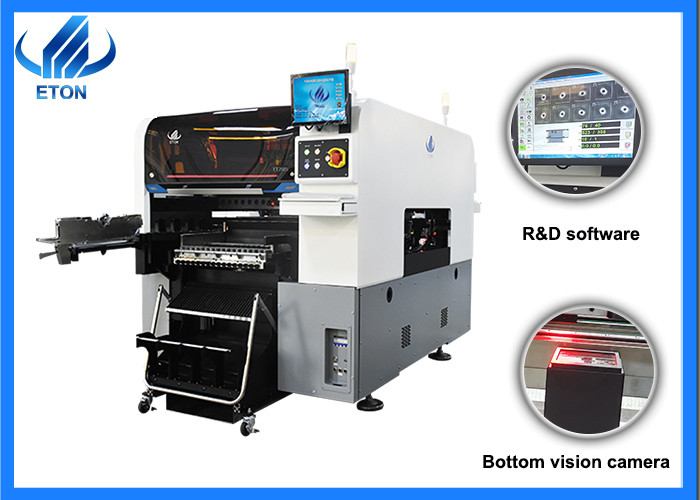

Machine description--YT202S
1. Length*width*Height: 2788*1686*1375mm Total weight:1700kg
2. The PCB size: max size: 500*450mm(single PCB) 500mm*300mm (double PCB) min:50*50 mm
3. PCB Clamping: Cylinder clamping, track width adjustable
4. No.of camera: 4 sets (Bottom vision camera recognition); feature:Mark correction+vision alignment
5. Apply to 0201~40*40mm tape reel package and IC tray feeder etc
6. High-speed multi modular head,Non replace modular head
7. The optimal can reach 80000CPH
Feature--YT202S
- Adopt high-speed multi modular head, apply to ultra small chip 0201~40*40mm large chip, wider component range.
- Each module 10 spindles, both high-speed and intelligent with light compact design.
- Improve recognition performance, size up to 40*40mm, apply to BGA or CSP etc
- Each placement head with independent detection function, which improves the stability of the equipment and the reliability of the product.
- Adopt high-end magnetic linear motor, servo system and multi function modular head, the capacity increased by 25% compared with traditional machine, optimum placement speed reach 80000CPH
Application
YT202S, apply to 0201mm~40*40 mm tape reel package and IC tray feeder.
Suitable for LED bulb, street light, panel light, down light, DOB, electric board, etc
Package
Package way: Vacuum adsorption, wooden package.
Professional personnel are responsible for the packaging process to ensure that the goods are not damaged during transportation and can reach our customers completely.
SMT layout
This is our pick and place machine YT202S Semi-auto production line.
The mainly include: Semi-auto printer machine, conveyor, pick and place machine YT202S, reflow oven.
Application: can produce LED bulb, down light, panel light, street light, DOB, electric board, etc. Wider component range.
Our customer
As soon as our customers get the machine, our company will immediately arrange engineers to come to the site for free installation and training, and will not leave until the customers learn how to operate the machine. At the same time, we have engineers not only in China, but also in India and Egypt. Customers don't have to worry about installation and after-sales problems.
Exhibition
We often participate in the exhibition in Delhi, Mumbai, Turkey, Thailand, Pakistan and so on, but in recent years, due to the epidemic, we seldom go aboard to participate in the exhibition.
FAQ
Q:What is the difference between semi-automatic production line and full-automatic production line?
A:In short, fully automatic production lines are expensive, but require less labor. Semi-automatic production line is more affordable, but the labor will be more than the automatic line
Q: Why do you choose our product?
- our product quality is guaranteed, and we have overseas local engineers, can arrange door to door installation.
- Software lifetime free upgrade
- Free installation and training
Provide 1-2 times a year free for machine repair, after the warranty period.
Q: This is the first time I use this kind of machine, is it easy to operate?
A: There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail/ Skype/ phone/ wechat/ online service.
Q: About technical offer
A: As for machine operation, we will arrange engineers to go to your factory for installation and teaching after you buy our machines.
If you have engineers who have been involved in the installation of SMT equipment, we can teach you how to install it online.
