Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | New |
---|---|---|---|
Name: | SMT Pick And Place Machine | Applicable Components: | 0402 |
Mounting Speed: | 45000 CPH | Pcb Thickness: | 0.5-5 Mm |
High Light: | 0402 SMT mounter Machine,LED Panel SMT mounter Machine,LED Panel Pick And Place Machine |

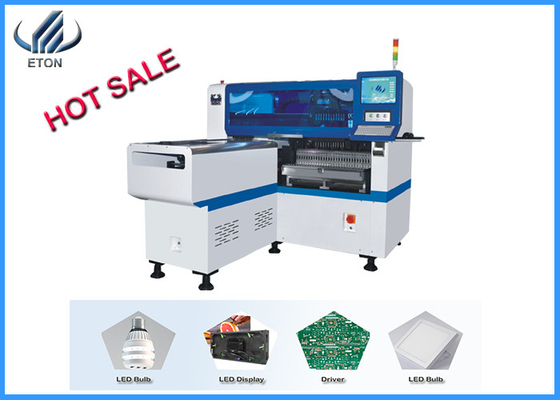

Widely used for various LED products for bulb/tube/street/panel smt mounter Min.mount 0402 smt pick and place machine
Machine main features

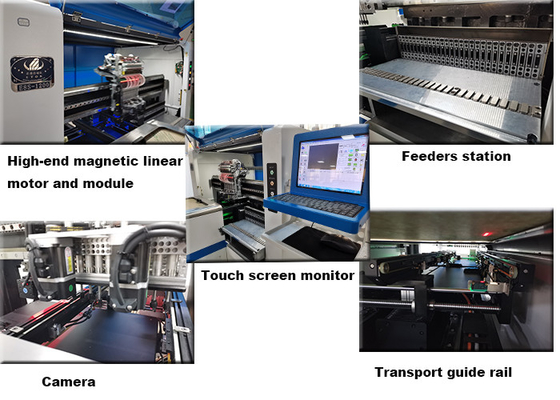

1)Single module magnetic linear motor multifunctional pick and place machine.
2)Mounting components: LED chip,capacitors,resistors,lens,IC,shaped components,etc.
3)Component: Min.size 0402. Max.height 15mm.
4)Application: power drive. electric board. Lens. DOB bulb. Linear bulb. Household appliance,etc.
Application

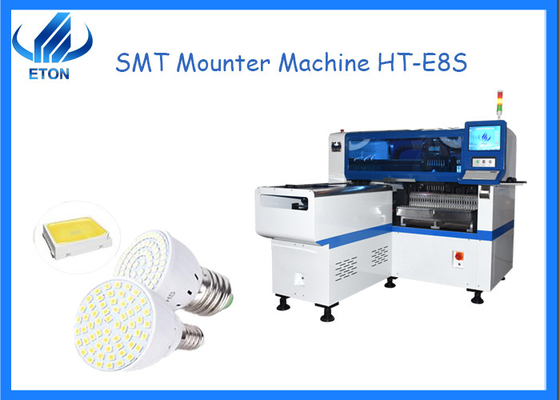

E8S-1200 also can mount some complex components:LED, capacitors,resistors,IC,shaped components, etc.
The capacity of E8S-1200 is reach 40000-45000CPH.
Production: DOB, home appliance control boards, power drivers, LED down-lights, LED bulb lights, LED panel lights, etc.
Production parameter
Dimension | 2550*1650*1550mm |
Weight | 1700KG |
PCB size | Max.1200*500 Min.100*100mm |
PCB thickness | 0.5-5mm |
PCB clamping | Adjustable pressure pneumatic |
Mounting speed | 45000CPH |
No.of feeder | 28PCS |
No.of head | 12PCS |

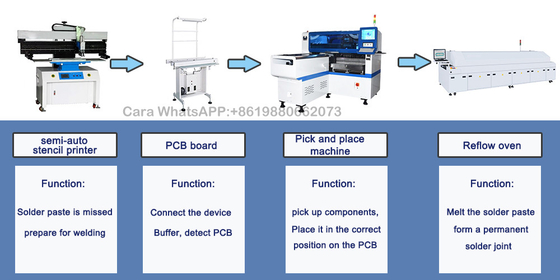

SMT production line
We have full range of pick and place machine production line equipment , So we have the professional suggestions for you to build the production line.
Solder paste printer machine: The solder paste is Stencil printed on the PCB board through the Stencil of the printer.
Pick and place machine: Mount the electronic component at the specified position on the PCB.
Reflow oven: Melt the solder paste and fix it to the mounting element.
Single conveyor: Inspect the quality of assembly and welding to cushion the production line.
Exhibition
Our company participates in many exhibitions at home and abroad every year,
You will see ETON's booth in some well-known large-scale exhibitions in China, including large-scale exhibitions held in Shenzhen, Guangzhou, Chongqing, Shanghai and other places.
Foreign exhibitions include exhibitions in more than 20 countries including Mumbai, Delhi, Egypt, Turkey, and Vietnam.
Service
※ Maintenance period 1year
One year warranty, during warranty, any parts need to be repaired and replaced will be free.
※ Software and hardware lifetime maintenance
Free upgrade software, software is Reach and develop by ETON, so we support whole lifetime free upgrade updates.
※ Visit customers regularly and gather information
Visit clients regularly. We attend different exhibition in different cities every year, at the same time, we will visit local clients and support our service and collect and feedback customer suggestions in time.
※ Provide latest information about technology and equipment
We give professional technology suggestion with our clients.And share the updates news to our clients
FAQ
Q: How many machines sell in India ?
A: So far, we have hundreds machine sell in India.
Q: I don’t know how to operate machine and will it required experience?
A: Our machine is very easy for operate, usually several days for training is enough and not required experience. Our engineers will come to the door for free installation and training, until your engineers fully learn how to operate the machine our engineers will leave
Q: I want to produce led bulb, do you have machine for that?
A: Yes, we could provide the whole SMT Machine for led bulb.
Q:How are the products packed for sea shipment?
Most of the products have their unique packing, Then we put them into a carton. The cartons are sealed with tape.
Q:How can you make sure that the products won’t be damaged or wet?
We take multiple measures to protect the products. They are first packing with individual. We put them into a carton and wrapped with plastic film and sealed with tape to keep the cartons in position and protect them from water.
