Product Details:
Payment & Shipping Terms:
|
Warranty: | 1 Year | Condition: | Brand-new |
---|---|---|---|
Model: | YT-101 | PCB Clamping: | Cylinder Clamping, Track Width Adjustable |
PCB Size: | Max Size: 500*350 Mm Min Size: 50*50 Mm | Repeat Precision: | ±0.02 Mm |
Optimal Speed: | 45000 CPH | Component Range: | Min 0201~10mm Packages And IC Etc. |
High Light: | LED Production SMT Mounter Machine,10 Heads SMT mounter Machine,LED Production Pick And Place Machine |

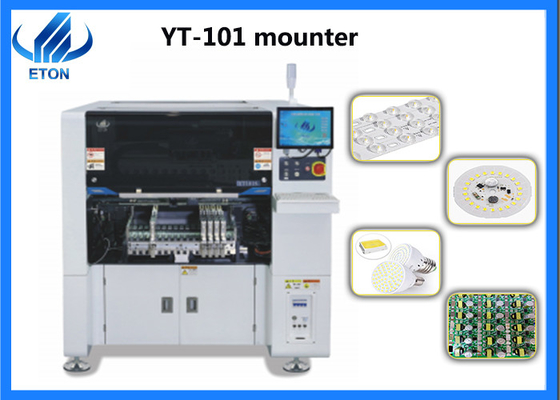

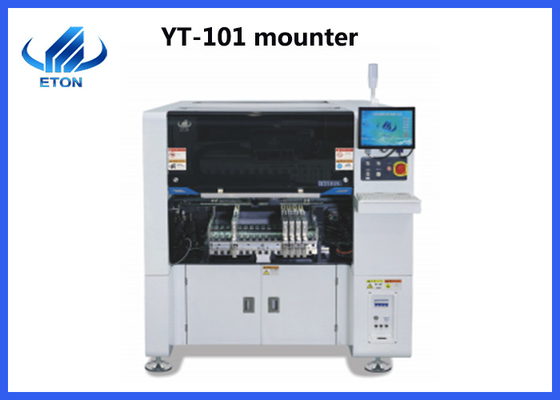

Led production 2022 New design mounter 10 heads surface mounting pick and place machine
Features
Machine main parameter
Model | YT-101 |
PCB size |
Max size: 500*350 mm Min size: 50*50 mm |
PCB thickness | 0.5-4.5 mm |
PCB clamping | Cylinder clamping, track width adjustable |
Software | R&D independently |
Production management MES system | Customized (Option) |
Off-line programming | Available |
Camera |
Head flight vision recognition component Vision alignment + Mark correction |
Repeat precision | ±0.02 mm |
Mounting height | ≦20 mm |
Optimal speed | 45000 CPH |
Position mode | Optical |
Component range | Min 0201~10mm packages and IC etc. |
Position mode | Optical |
No.of heads | 10 pcs |
X,Y,Z Axis drive way | High-end magnetic linear motor + Servo motor |
Feeding way | Intelligent double head feeder |
Application
High speed multi modular head, apply to ultra small chip 0201~10 mm large chip that suitable for led lights(bulbs, lens, street light, floodlight, down light, panel light), electrical board and power driver etc.
Certificates
As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And also earned the oversea certificates as CE, CCC, SIRA, etc.
Packages
Step 1: Wrap with stretch film to prevent the equipment from.
Step 2: Vacuum paper packaging and moisture-proof bag, so that the machine can be kept dry during transportation to prevent moisture.
Step 3: Use straps and triangular wood to fix the machine to prevent damage to the machine during transportation.
Step 4: Each exported machine will be equipped with sturdy export wooden boxes, to ensure that the delivered product is good.
Service
Shipping and Delivery
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
FAQ
Q. What is your the payment term?
A. For our regular payment terms, we usually use T/T.
Q. Can you accept CFI as the quoted price?
A. We usually accept EXW as the quoted price.
Q. How is your services?
A. We ensure our clients to enjoy an optimal experience of the service of communication and relevant needs of the machine for installation, maintenance and free up- grade.
Q. What is your actual speed of your products?
A. For the actual speed of the machine which is constrained by many factors, that related to the number of the components, the time to send PCB board and receive the board, etc. And is decide for the actual products and needs.
Q. What is your merits of the machine to others production?
A. Initially, we have a strong R&D department for studying our productions, and our clients can enjoy free up-grade of the machine to get latest information about technology and equipment, besides, we have a 52000 square meters industrial park to serve the production, assembly, and commissioning of our machines.
