Product Details:
Payment & Shipping Terms:
|
| Name: | Reflow Oven | Warranty: | 1 Year |
|---|---|---|---|
| Length: | 5000mm | Width: | 1000mm |
| Height: | 1500mm | Total Weight: | 1500kg |

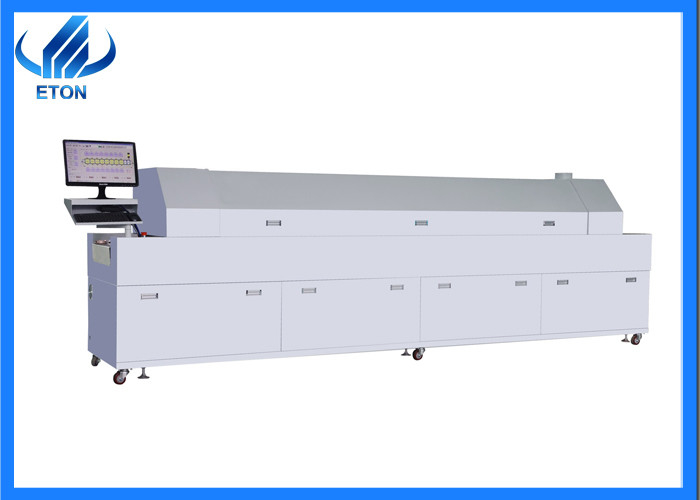

SMT Reflow oven with 8 temperature zone Welding with hot air
Product description
Reflow soldering oven is an important part of SMT. Generally speaking, the process of SMT is that PCB bare board is printed by solder paste printer, SMD components are placed on PCB board by SMT pick and place machine, and finally the reflow soldering oven uses the melting point of solder paste for permanent welding, which plays an important role in forming permanent solder joints between SMD components and PCB board.
Feature
| lAll temperature zones are heated separately up and down, independent hot air circulation, independent temperature control, and the temperature control accuracy of each temperature zone is ±1℃. |
| lModular heating structure can effectively prevent the influence of airflow in the temperature range, ensure that the components are heated evenly, and the lateral temperature deviation is <±2℃. |
| lThe opening of the upper furnace body adopts pneumatic jacking, which is safe and reliable and convenient for furnace cleaning. |
| lSpecial long-life nickel-nosed heating wire type heat source, abundant power, rapid heating, less than 20 minutes from room temperature to constant temperature. |
| lAdopting imported high-speed air-carrying motor direct drive for thermal cycle, low noise, low vibration and high thermal cycle efficiency. |
| lIt adopts Panasonic PLC industrial control products to control the upper and lower computer, which has first-class stability. |
| lIt has a delay switch protection function to prevent the transmission parts from deforming due to uneven cooling. |
| lIt has a power-off protection function to ensure the normal output of the PCB board without damage after power-off. |
| lWith over-temperature sound and light alarm and emergency braking system. |
| lSimplified and traditional Chinese MMI operation interface and artificial intelligence software control, which greatly facilitates the use of users |
| lIt has a complete online temperature test curve and analysis, storage, recall and printing functions. |
| lDedicated temperature acquisition module, high accuracy and fast speed, with cold junction compensation function. |
| lThe temperature collection adopts the RS-485 interface, which is convenient for remote device temperature monitoring. |
| lWith timing automatic shutdown function |
| lHost computer control, computer can be cut off, independent control, computer operation, convenient man-machine dialogue, clear interface, intuitive image, can switch between Chinese and English at any time, and various parameter settings realize accurate and fast numerical input |
| lUsing PLC control, the temperature control is stable and accurate, and the temperature of each temperature zone is individually controlled. |
| lImported high-quality high-temperature-resistant motor with good structure and good heat dissipation to ensure its service life and reliability. The direct connection mode connects the wind wheel with a speed of up to 2800rpm to provide sufficient hot air flow. |
Parameter
| Machine model | ET-R8 | |
| Heating system | Number of heating zones | Upper 8 hot air heating, lower 8 hot air heating |
| Length of heating zone | 3000mm | |
| Heating method | Hot air | |
| Delivery system | PCB maximum width | 450mm (mesh) |
| Transport direction | Left to Right or Right to Left | |
| Conveyor belt height | Mesh belt 880±20mm | |
| Delivery method | Mesh belt | |
| Conveyor speed | 0-2000mm/min | |
| Control System | Power supply | 5 line 3 phase 380V 50/60Hz |
| Starting power | 28KW | |
| Normal working power | 7KW | |
| Heating time | About 15 minutes | |
| Temperature control range | Room temperature～350℃ | |
| Temperature control method | PID control + SSR drive | |
| Temperature control accuracy | ±1℃ | |
| Abnormal alarm | Abnormal temperature alarm | |
| Whole machine system | Dimensions (length*width*height) | 5000*1000*1500 mm |
| Machine weight | 1200 kg | |

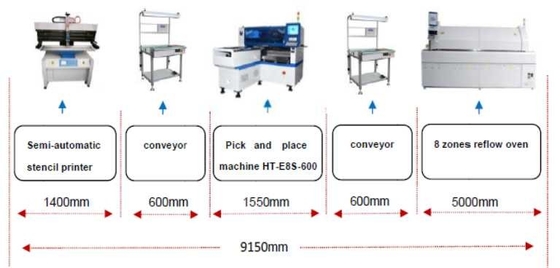

SMT line
The general wiring sequence in SMT is solder paste printer, SMT Pick and place machine and reflow soldering oven.
