| Length: | 3150mm | Width: | 2250mm |
|---|---|---|---|
| Height: | 1650mm | Total Wight: | 2500kg |
| PCB Size: | Max:1200*300mm Min:100*100mm | Mountig Mode: | Group Picking And Separately Placing/Separately Picking And Separately Placing |
| No Of Feeders Station: | 48 PCS Double Module | No Of Head: | 24 PCS Double Module |
Pick and place machine making all kinds of LED lighting
Introduction of machine

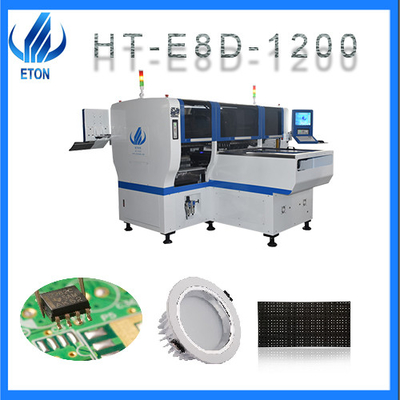

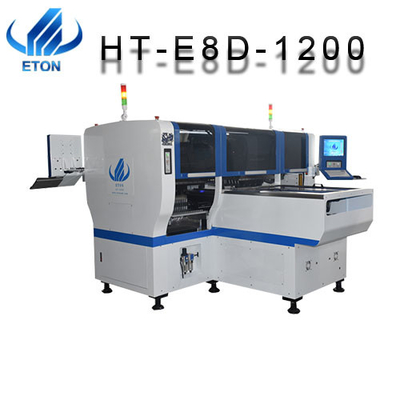

1.Dual mode maglev multi-function high-speed chip mounter
Dual mode group, dual system multi-function chip mounter, can produce two different products at the same time. There are 48 Feida in the dual mode group, 24 Feeder in each module, 24 suction nozzles in the dual mode group, and 12 suction nozzles in each module
2.PCB board
Maximum: 1200*300mm
Minimum: 100*100mm
3.Mounting
Equipped with lamp beads, lenses, capacitors, resistors, IC and various special shaped components The minimum mounting of 0402 components and the maximum mounting of 15mm are suitable for mounting various LED lamps, such as LED bulb, DOB bulb, panel lamp, downlight, street lamp, lamp tube, soft lamp belt, display screen, circuit board, etc
4. Camera
Four sets of cameras, flight recognition visual alignment, mark correction, imported camera Hikvision, improved recognition accuracy
Parameter
| Dimension | |
| Length | 3150mm |
| Width | 2250mm |
| Height | 1650mm |
| Total Weight | 2500kg |
| PCB | |
| PCB Length Width | Max:1200*300mm Min:100*100mm |
| PCB Thickness | 0.5-5mm |
| PCB Clamping | Adjustable pressure pneumatic |
| Mounting Mode | Group picking and separate placingseparate picking and separate placing |
| O.S. | |
| System | Windows7 |
| Software | R&D independently |
| Display | Touch screen monitor |
| Input Device | Keyboard, Mouse |
| Vision System | |
| No. of Camera | 4 sets of imported camera |
| Vision for the flight identification, MARK correction | |
| Mounting Precision | ±0.04mm |
| Mounting Height | <15mm (Automatic Changing) |
| Mounting Speed | 90000 CPH |
| Components | LED , capacitors, resistors, IC,shaped components, etc. |
| Components Space | 0.2mm |
| No. of Feeders Station | 48 PCS |
| No. of nozzles | 24 PCS |
| Feeding way | Electric feeder with double motor |
SMT PRODUCTION LINE
1. Stencil Printer machine: use steel screen to print solder paste onto the solder pad of PCB
2. Conveyor: it plays the role of transmission and buffer
3. Pick and Place Machine: mount components on the designated position of PCB board
4. Reflow Oven: pass the PCB board through the reflow soldering furnace and melt the solder paste to make the components and PCB board adhere better
FAQ
Q1:What kind of service I can have, if I buy machine from ETON ?
A:We will give you install and training. It is free for you. And we will sent engineer with you.
Q2:What's about the guarantee of the machines?
A:The maintenance:1 year whole machine,any parts need to be repaired or replaced will be free. We will take the responsibility of the machines from A to Z.
Q3:Did you develop your own machine?
A:It has independently developed the world's first technological invention patents and proprietary technologies, including 9 invention patents, 12 software copyrights and 112 practical patents.
