Product Details:
Payment & Shipping Terms:
|
Model: | T9-2S | Dimension: | (L)3454*(W)3035*(H)1777 Mm |
---|---|---|---|
PCB Size: | 250(±10)mm* Any Length | PCB Thickness: | 0.1-0.5 Mm |
Mounting Way: | Group Picking And Group Placing | Mounting Mode: | Double Rail + Four Groups Of Placement Heads |
Mounting Speed: | Double Side: 500,000 CPH Single Side: 250,000 CPH (Optimum Speed) | No. Of Nozzles: | Double Side: 136 PCS (Single Side: 68 PCS) |
Warranty: | 1 Year | Condition: | 100% Original |

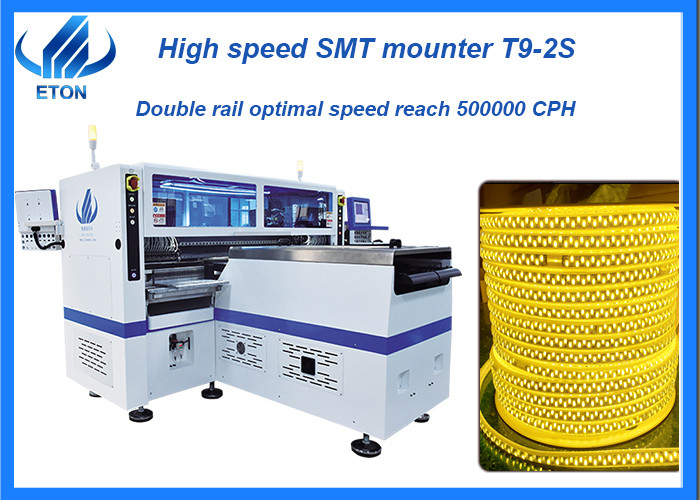

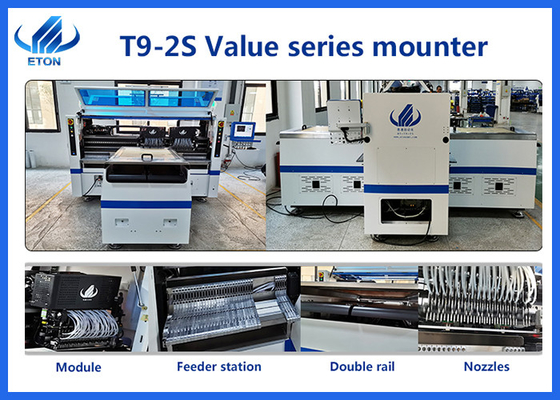

High speed placement mounter 100M flexible strip production FPCB mounting machine
Machine main parameter
Model | T9-2S |
Dimension | (L)3454*(W)3035*(H)1777 mm |
Total weight | 3100 kg |
PCB size | 250(±10)mm* Any length |
PCB thickness | 0.1-0.5 mm |
PCB clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Mounting way | Group picking and group placing |
Mounting mode | Double rail + Four groups of placement heads |
No. of camera | 10 sets (Digital camera) |
Software | R&D independently |
Repeat precision | ±0.05 mm |
Mounting height | ≦5 mm |
Mounting speed |
Double side: 500,000 CPH Single side: 250,000 CPH (Optimum speed) |

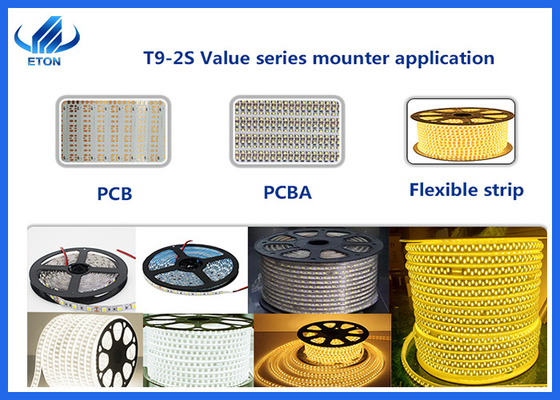

Components range | LED 3014/3020/2835/5050 and resistors, capacitors, bridge rectifiers etc. |
Power consumption | 9.6 KW |
No. of feeder station | Double side: 136 PCS (Single side: 68 PCS) |
No. of nozzles | Double side: 136 PCS (Single side: 68 PCS) |
Market
As for the 11 years trade with more than 30 countries with our SMT high speed pick and place machine, we have come into business with many partners:
Packages
As for the package of the machine, we put it in film packing and foam cotton, to prevent the dust and water of protecting the machine and keep dry of the machine during transportation, and equip with wooden boxes to transport to the specified port.
Shipping and Delivery
As to the part of shipping and delivery, there are three ways for your reference, and different way is for different situations:
Land transportation: suitable for inland countries and it is affordable;
Air freight: for urgent good, and it is the most expensive transportation way;
Shipping: It’s suitable for heavy goods, and the convenience and lower cost of shipping which is easy for clients to accept the arrival time of the goods.
Service
Free Installation: provide free installation machine to ensure smooth production
Free Warranty:1 year warranty factory service, free replacement of space parts
Free Training: Professional training of operating and maintenance
Free Technical Support: 7*24 technical online support
Free Software Upgrade: Offer free software upgrade whole lifetime
FAQ
Q. Can I pay by L/C?
A. The procedure of L/C payment is complicated, which will waste a lot of time on payment. For more, you need to wait longer to get the machine, which will delay your production plan and delay the opportunity.
Q. How many hours does the machine can operate per day?
A.Machine can work whole day. But for longer using life, we suggest you to have 1 hour or 2 hours off per day.
Q. What is your machines quality?
A. As an experienced manufacturer in SMT machine, we obtained a number of intellectual property technologies, including 9 invention patents, 112 practical patents, 12 software copyrights, with our won R&D department for production and inspection. And awarded as “China high-tech enterprise”, “Shenzhen TOP brand” we ensure our high quality of our machine as an excellent manufacturer in China.
Q. Is the machine easy to operate?
A. Yes, our machine is very intelligent and easy to operate, like the intelligent phone, also the software is made by our company, so we know how to make it more intelligent and operate friendly.
