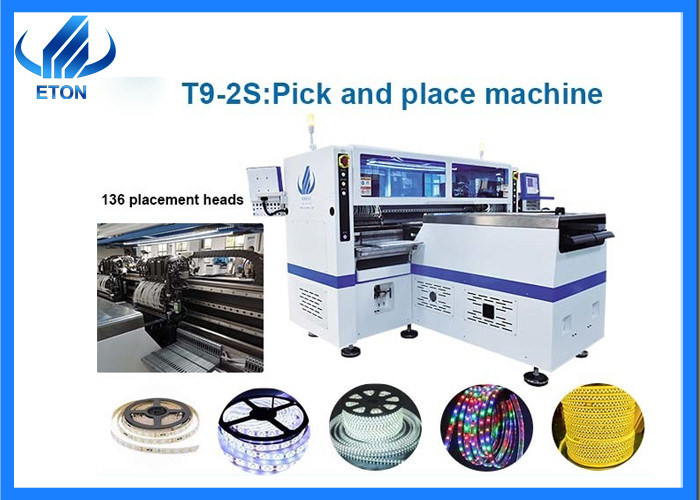

Double rail LED Flexible Strip Mounter 136 Heads 500000CPH SMT Chip Mounter
Product description:
1.T9-2S machine is one of the newly launched value series products from ETON. Producing with 4 types materials at the same ,improving production efficiency.
2.Under optimal conditions, the production capacity can reach 500000CPH,which the mounting speed has already broken the world record.
Machine features:
1.Component picking position can be adjusted according to PCB pad pitch,min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor , capacitor, bridge rectifier etc.wide component range.
2.Unique Design Component Leaking Detection And Individual Component Refill
Function :Recognition camera record the component leaking position of PCB,and fill the missing component accordingly.
3. The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
4. Adjust the conveying platform according to various roll to roll strip, range 250±10mm,the max length range is 1m per cycle.
5. 136 placement heads, adopted group picking and group placing,so as to realize the function of two time picking and once placing.
6. Adopted Intelligent electric feeder with double motor feeding way.
Machine main parameter:
| Model |
T9-2S |
| Dimension(L*W*H) |
3454*3035*1777mm |
| Weight |
3100kg |
| PCB length width |
250mm(±10)*any length |
| PCB thickness |
0.5~0.5mm |
| Mounting way |
Group to picking and group to mount |
| Mounting mode |
Double rail+four group of placement heads |
| Mounting height |
≤5mm |
| No.of camera |
10PCS |
| Vision alignment, Mark correction |
| Components |
LED 3014/3020/3528/5050/and resistor,capacitor, bridge rectifiers etc. |
| Power consumption |
9.6KW |
| Optimum Mounting speed |
500000CPH |
| No. Of feeders station |
Double side:136 PCS(single side:68pcs) |
| No. Of head |
Double side:136 PCS(single side:68pcs) |
| X,Y Axis drive way |
High-end magnetic linear motor+Servo motor |
| Feeding way |
Intelligent electric feeder with double motor |
Application:
T9-2S Machine apply to 5/10/50/100/150/200 m and flexible light strips of any length,roll to roll strip.
