Warranty: | 12 Months | Feeders: | 80 PCS |
---|---|---|---|
Mounting Speed: | 160000 CPH | Dimension: | 2086*2237*1500 KG |
Weight: | 4500 KG | Pcb Thickness: | 0.1-6mm |
Positioning Accuracy: | 0.04 Mm | Camera: | 8 PCS |

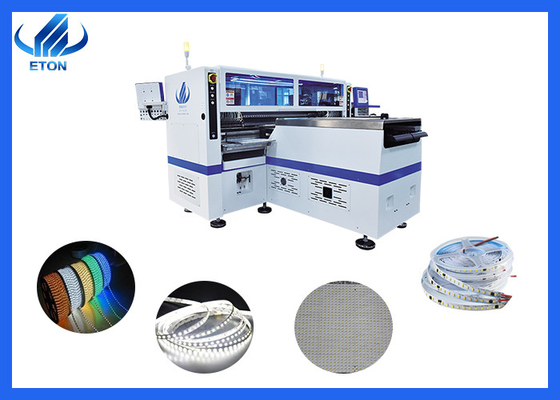

Ultra-high-speed high productivity 136pcs heads for led flexible strip pick and place machine
Machine description
Diverse functions, efficient production.High-speed modular head. Eton tech adjustable placement head, apply to 3014/3020/2835/5050/resister, capacitor, bridge rectifier etc. The optimal capacity can reach 500000CPH.
Machine feature
1.Component picking position can be adjusted according to PCB pad pitch, min 6.5mm. Apply to LED 3014/3020/2835/5050 resistor, capacitor, bridge rectifier etc. Wide component range.
2.Recognition camera record the component leaking position of PCB, and fill the missing component according.
3.The placement head adopt the method of two times picking and once placing. The placement time greatly minimized with the improved placement way, excellent optimum capacity reach 500000CPH.
4.Adjust the conveying platform according to various roll to roll strip, range 250±10mm, the max length range is 1M per cycle.
5.The distance of feeder station can be flexibly adjusted to achieve group picking and group placing, so as to realize the function of two time picking and once placing.
Machine parameter
Dimension | 3454*3035*1777mm |
PCB size | 250*any length |
PCB Clamping | Vacuum adsorption, cylinder clamping, track width adjustable |
Components range | LED3014/3020/2835/5050 and resistor, capacitor,bridge rectifier etc |
Mounting mode | Double rail+four groups of placement heads |
Conveyor transmission | Max length:1000mm |
No.of camera | 10 sets |
Heads | Double side: 136pcs |

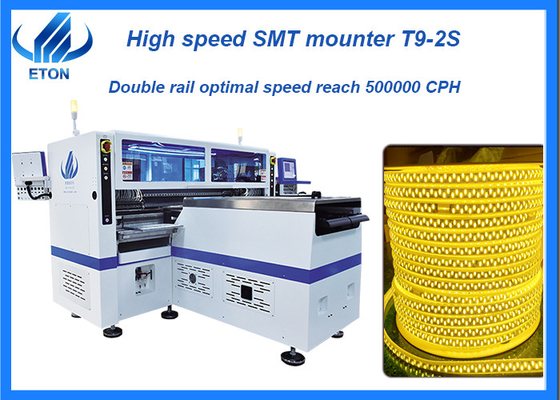

SMT production line--T9-2S
This is our high-speed pick and place machine T9-2S full automatic production line. The mainly include loader/ unloader machine, stencil printer, buffer stage, pick and place machine, belt line, reflow oven.
We can provide you a whole production line solution and SMT production line machines.
Application
High-speed professional pick and place machine, Suitable for mounting any length flexible strip and rigid PCB board.
Components range: LED3014/3020/2835/5050 and resistor, capacitor,bridge rectifier etc
Package
Our products are packed in vacuum wooden cases.
Each process of packaging is carefully completed by our professional packaging personnel to ensure that customers can receive complete products.
Exhibition
Our company participates in various exhibitions every year, such as Shanghai Munich exhibition, Guangzhou Guangya Exhibition, Chongqing led exhibition, Turkey exhibition, India Mumbai exhibition, India Delhi exhibition, Pakistan exhibition, Egypt exhibition, etc
FAQ
Q: Is the software for these machine in English?
A: Yes. Our software is independently developed, there are two version in English and Chinese.if necessary, we also can customized other language system for you.
Q: How can I buy this machine from you?(Very easy and flexible!)
A: Consult us about this product online or by e-mail.
B: Negotiate and confirm the final price,ship, payment methods and other terms.
C: Send you the proforma invoice and confirm your order.
D: Make the payment according to the method put on proforma invoice.
E: We prepare for your order in term of the proforma invoice after confirming your full payment. And 100% quality check before shipping.
F: Send your order by air or by sea.
Q: Why do you choose our product?
Q: What products you sell?
A: Our company deal in the following products:
SMT equipment and accessories: pick and place machine, stencil printer machine, glue dispenser, conveyor, feeders, SMT nozzles,etc.
